Page 12
When choosing a location to mount the enclosure, bear in mind the
following:
• Ensure that the Ultra 5 is installed in a “Safe”, non-hazardous, area.
• For a clear view of the LCD display it is recommended that it is
mounted at eye level.
• The mounting surface is vibration-free.
• The ambient temperature is between -20ºC and 50ºC.
• There should be no high voltage cables or inverters close by.
Dimensions
Wall mount

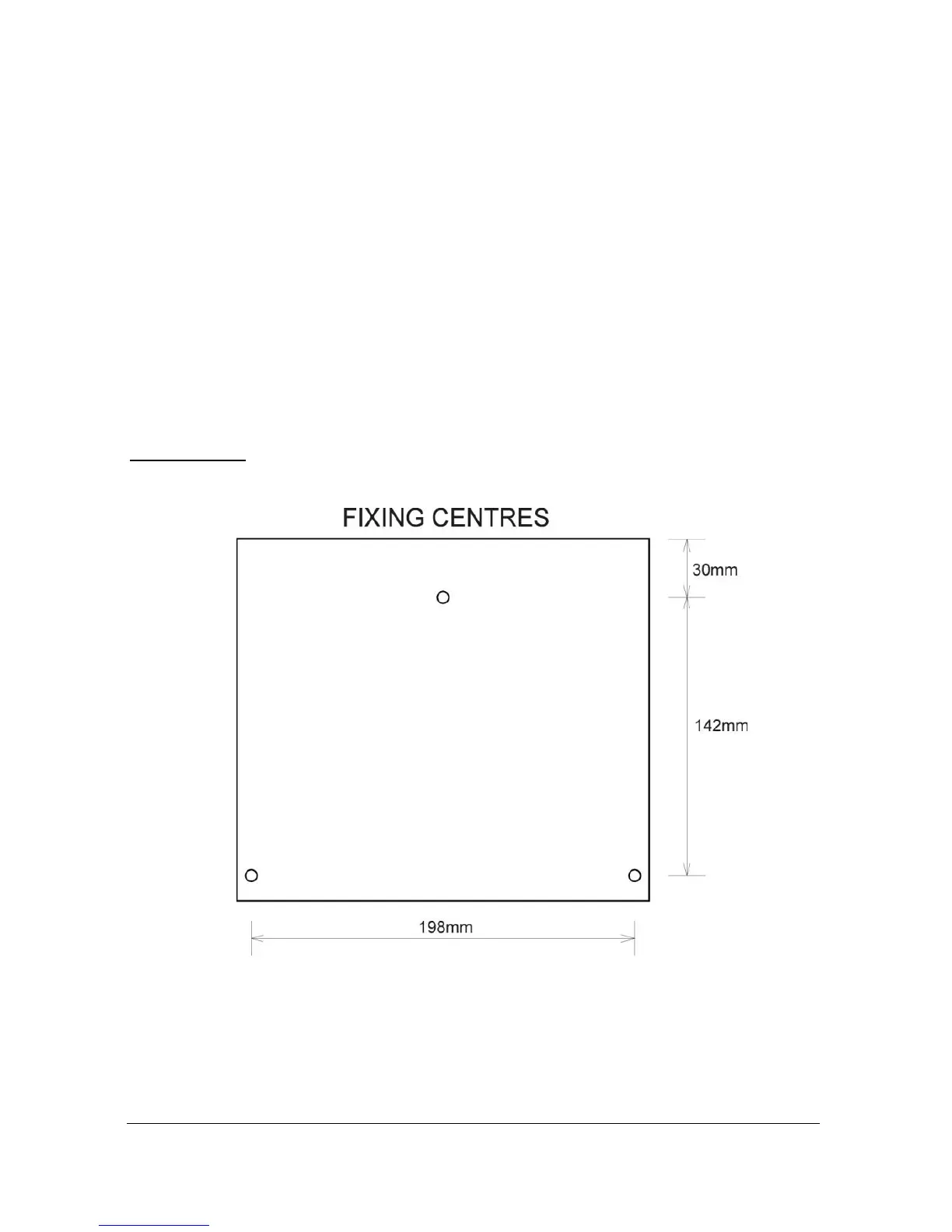

The dimensions of the wall fixing holes are as shown below.
Ultra 5 should be mounted by drilling three holes suitable for size 8 screws
(length to suit your application), and fixing the top screw in place. Hang the
unit on this and fix the two remaining screws by removing the terminals
access cover to access the pre-drilled holes.
