Page 24
Rack and Panel mount

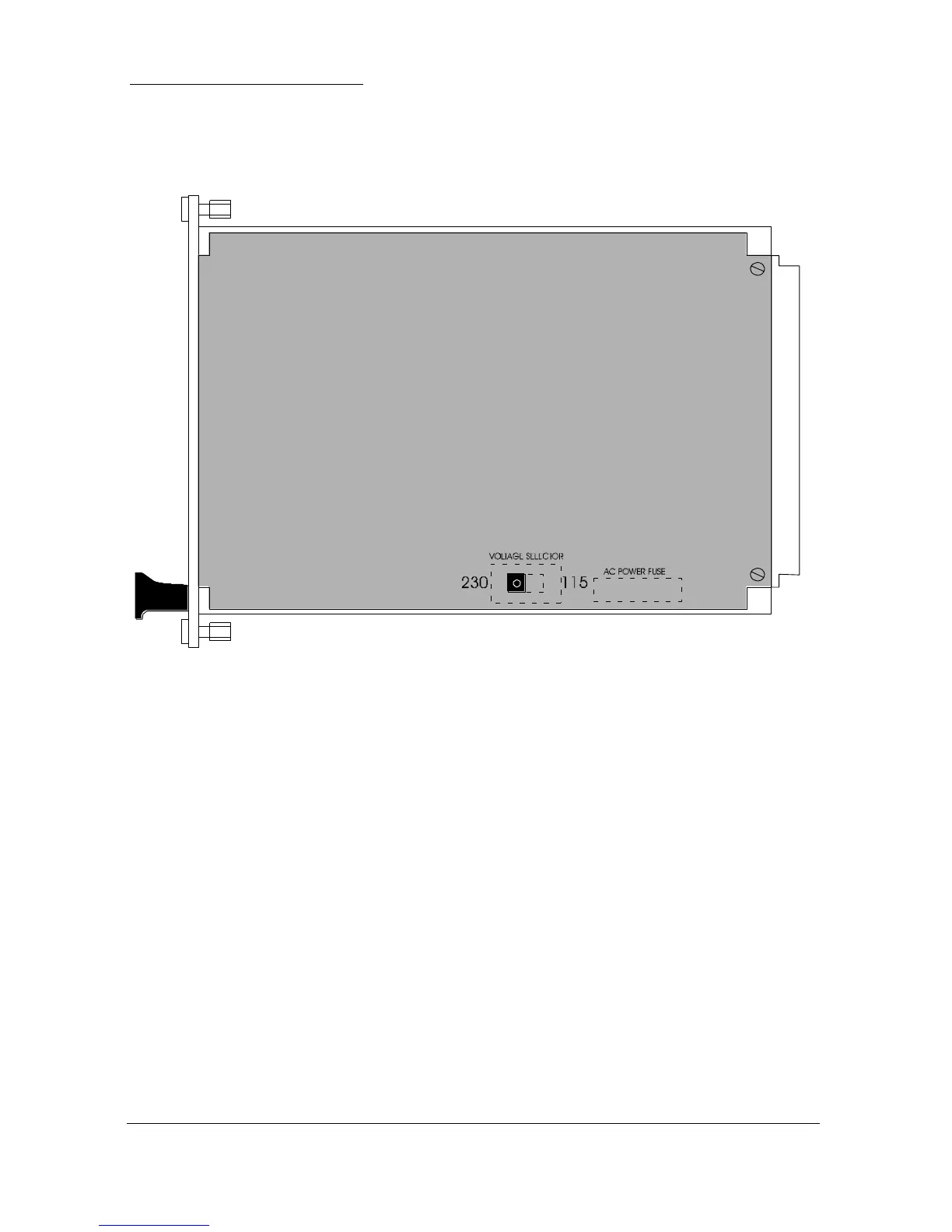

The voltage selector switch and mains fuse is situated on the inside of the
bottom PCB, as illustrated below, and can be accessed from the lower side
of the rack unit.
