Page 30
Program Mode
This mode is used to set up the Ultra 5 or change information already set.
You must use either the built-in keypad (standard) or, in the case of the rack
and panel mount, the remote communicator (both keypads are identical in
the way they operate). Alternatively, the unit can be set up with a PC via the
RS 232 Serial Interface.
Entering a value for each of the parameters that are relevant to your
application provides all the programming information.
How to Access Program Mode
Wall and Fascia mount
In the case of the wall and fascia mounted Ultra 5, to enter program mode,
you simply enter the passcode, via the keypad, followed by the ENTER key.

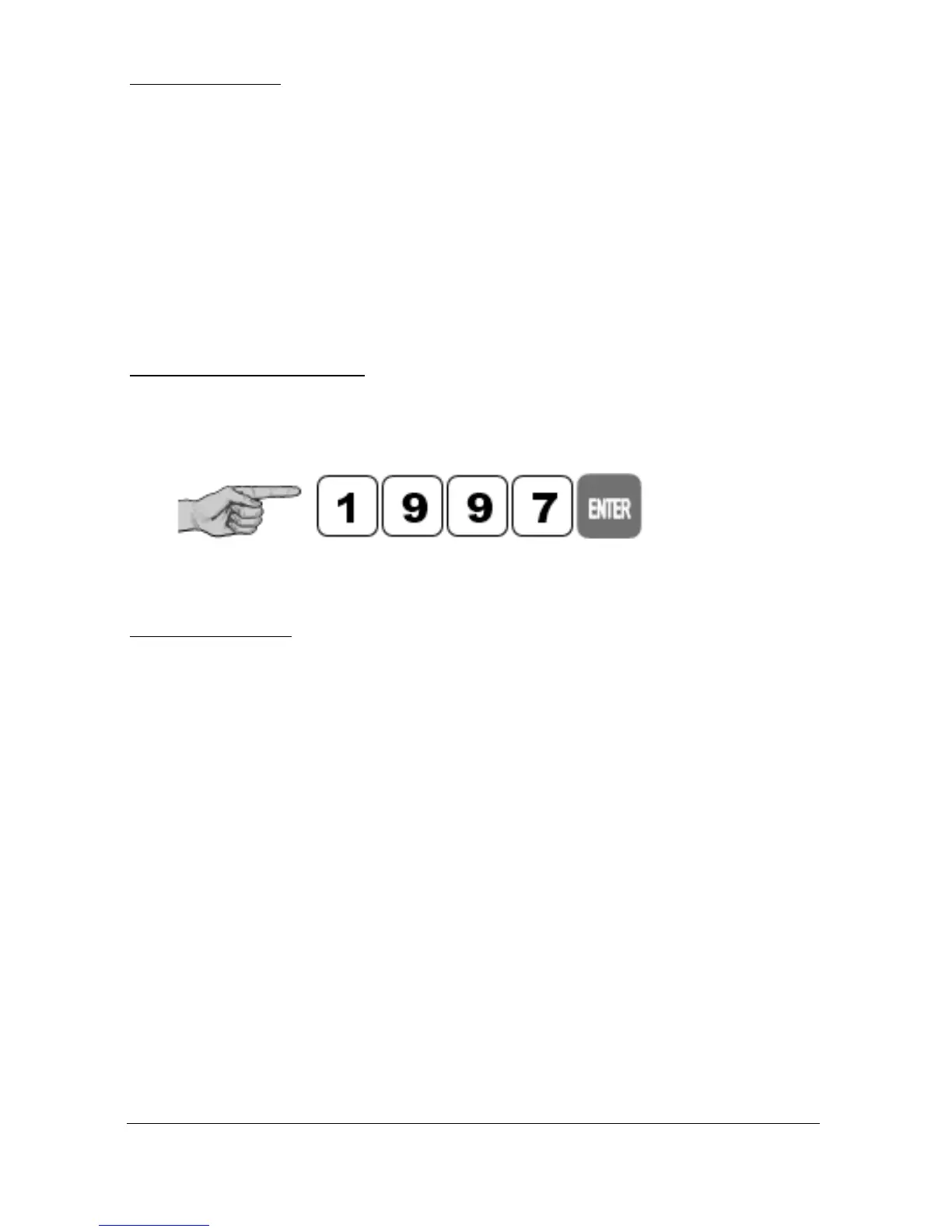

The default passcode is 1997, so you would press the following:
Rack and Panel
The Remote Communicator is used to program the rack and panel version of
the Ultra 5. Before you can commence programming, it is first necessary to
activate the communication between the Ultra 5 and the Communicator.
This is achieved by offering the Remote Communicator up to the Ultra 5 so
that the arrow point in the Pulsar Logo on the Communicator is in line with
the corresponding arrow point on the front panel of the unit and lightly
‘touching’ the unit with the communicator (see following figure).
Confirmation that communication has been successfully achieved will be
indicated by a change of the Communicator status display, at the bottom of
the LCD from “Communicator Off” to “Remote Communicator On”. Once
communications have been activated the Remote Communicator can be used
up to I metre away from the unit but should be ‘aimed’ at the unit whilst
entering information.
On returning the unit to Run Mode ensure that communications between the
Remote Communicator and the Ultra 5 are switched off by once again
‘touching’ the unit with the Communicator and confirm the display status
changes back to “Communicator Off”
