3.14 Water valve fitting

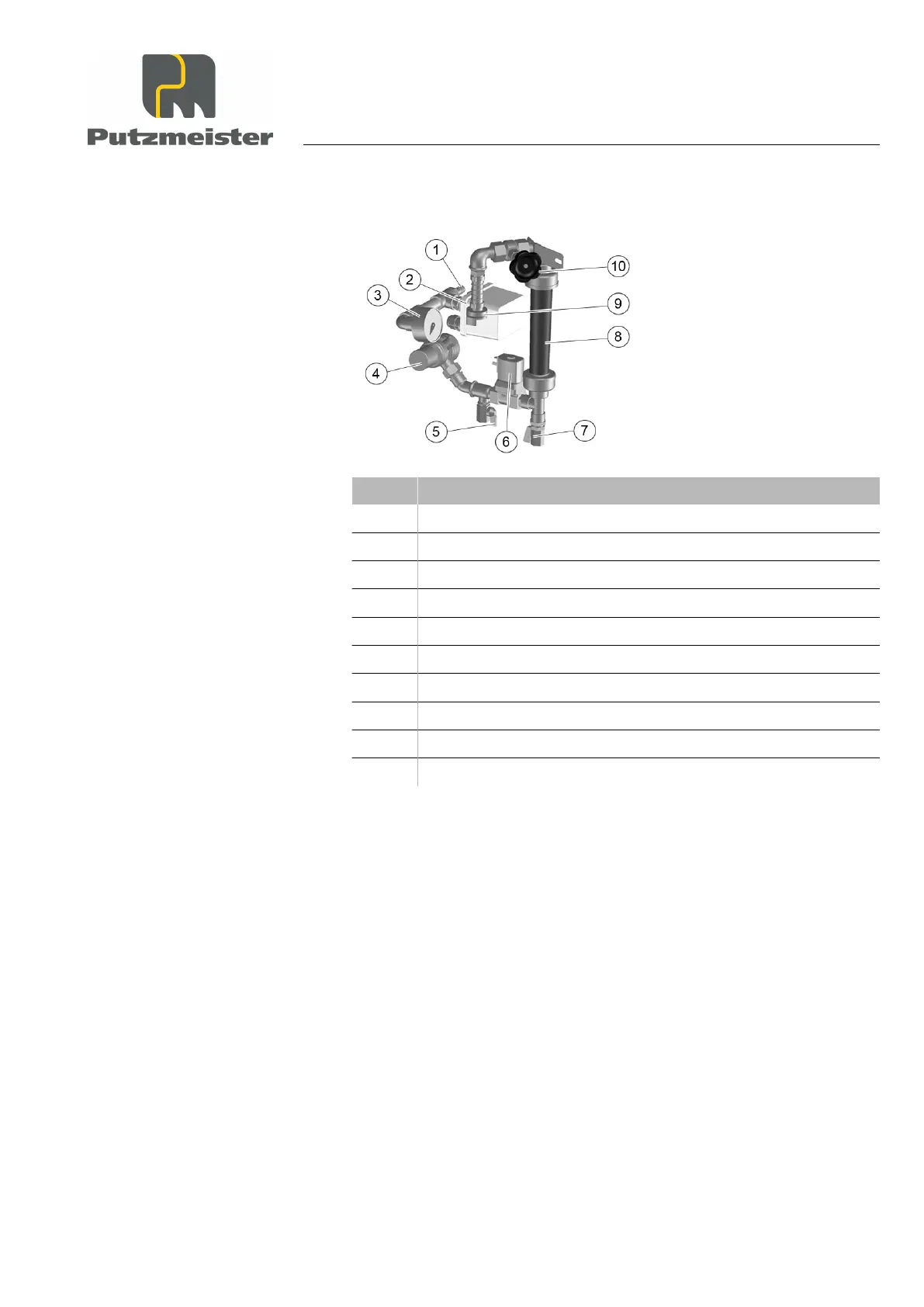

Item Designation
1 Water connection
2 Pressure switch
3 Pressure gauge
4 Pressure reducer
5 Drain cock
6 Valve
7 Drain cock
8 Flow meter
9 Mixing pipe connection
10 Control valve for water volume
The water valve fitting conveys the water to the mixing pipe. The wa‐
ter volume is adjusted at the control valve. The flow meter doses the
necessary water volume.
