3.9.2 Overview

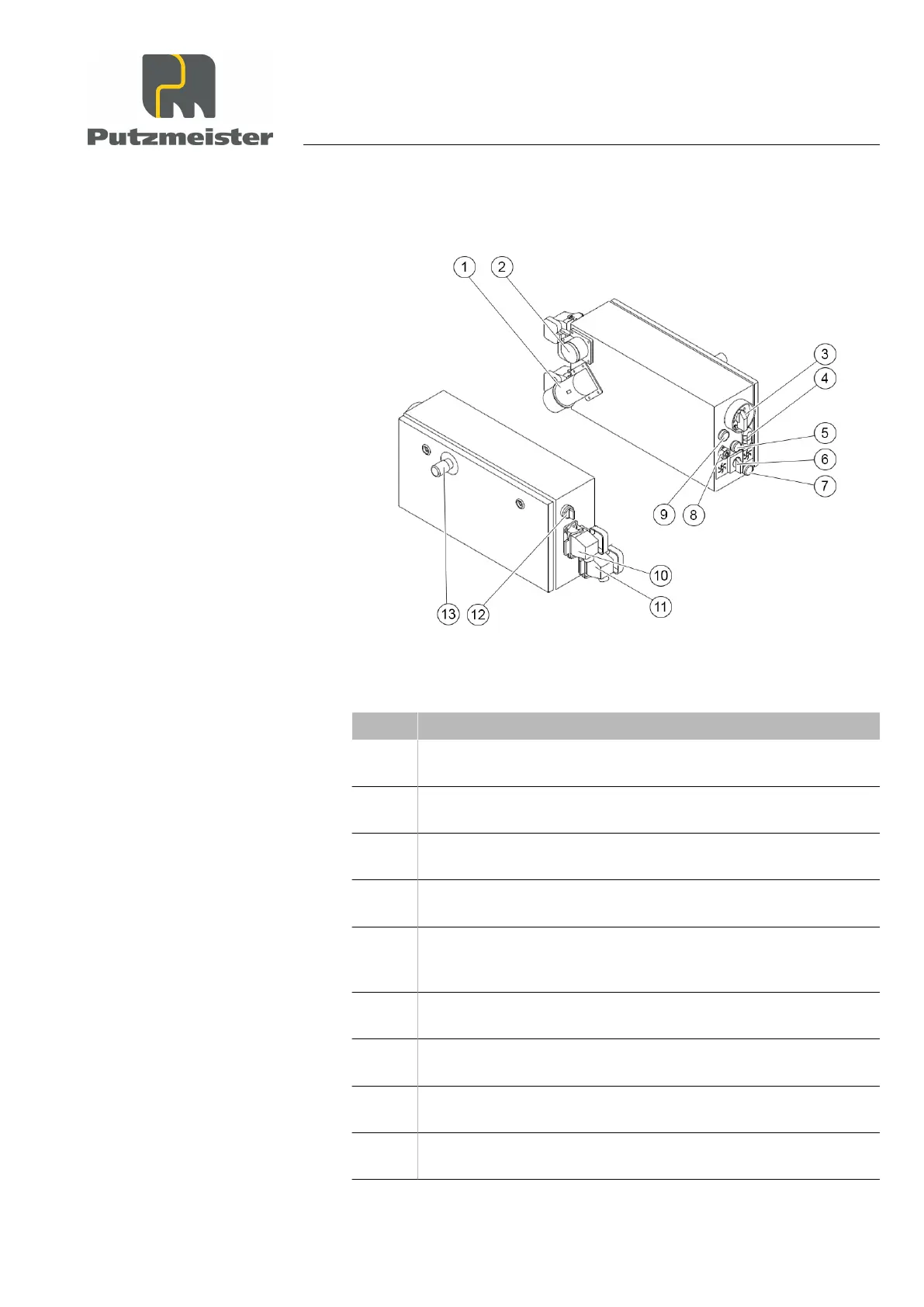

Figure 9: Control cabinet
Item Designation
1 CEE device socket
Power supply connection
2 CEE device socket
Compressor connection
3 Main switch
Power supply ON - OFF
4 Double pushbutton
Pump ON – OFF
5 Illuminated push-button
Yellow indicator lamp: Incorrect direction of rotation
Push-button: Reverse pump
6 Selector switch
Mix – OFF – Mixing and pumping
7 Indicator light
Motor fault
8 Round socket
Air valve fitting/remote control connection
9 Push-button (dependent on model)
Water flow
General technical description
3 — 13
