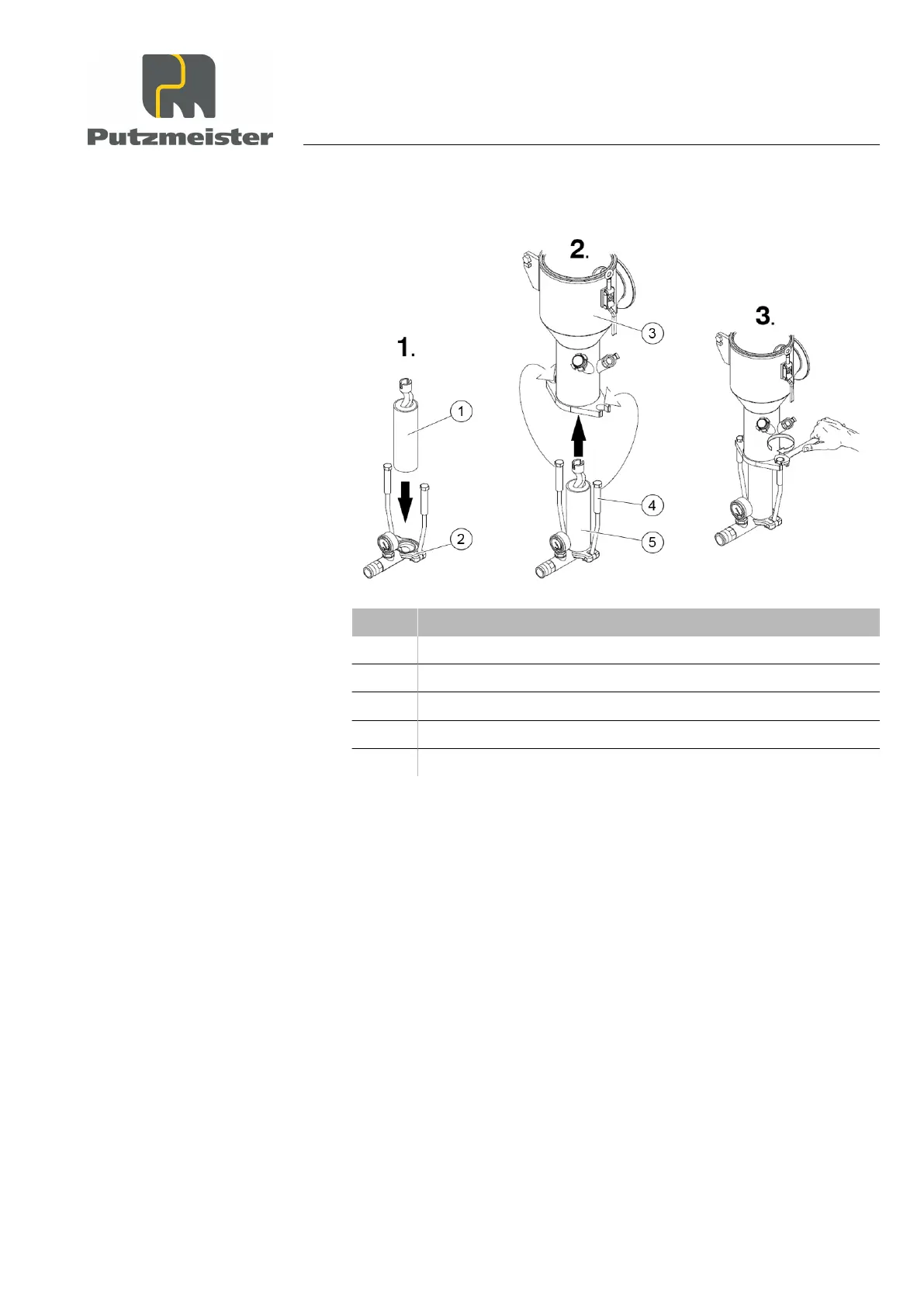

5.1.3 Mounting the mixing pump
Item Designation
1 Auger pump
2 Pressure flange
3 Mixing pipe
4 Threaded sleeve
5 Auger pump pressure connection unit
1. Insert the auger pump in the pressure flange.
2. Hang the auger pump pressure connection unit on the mixing
pipe flange using the threaded sleeves.
3. Tighten the two threaded sleeves on the auger pump pressure
connection unit securely and evenly on the mixing pipe using a
suitable spanner.
4. When tightening the auger pump pressure connection unit, en‐
sure that the sealing surfaces of the auger pump are positioned
correctly on the pressure connection and the mixing pipe.
