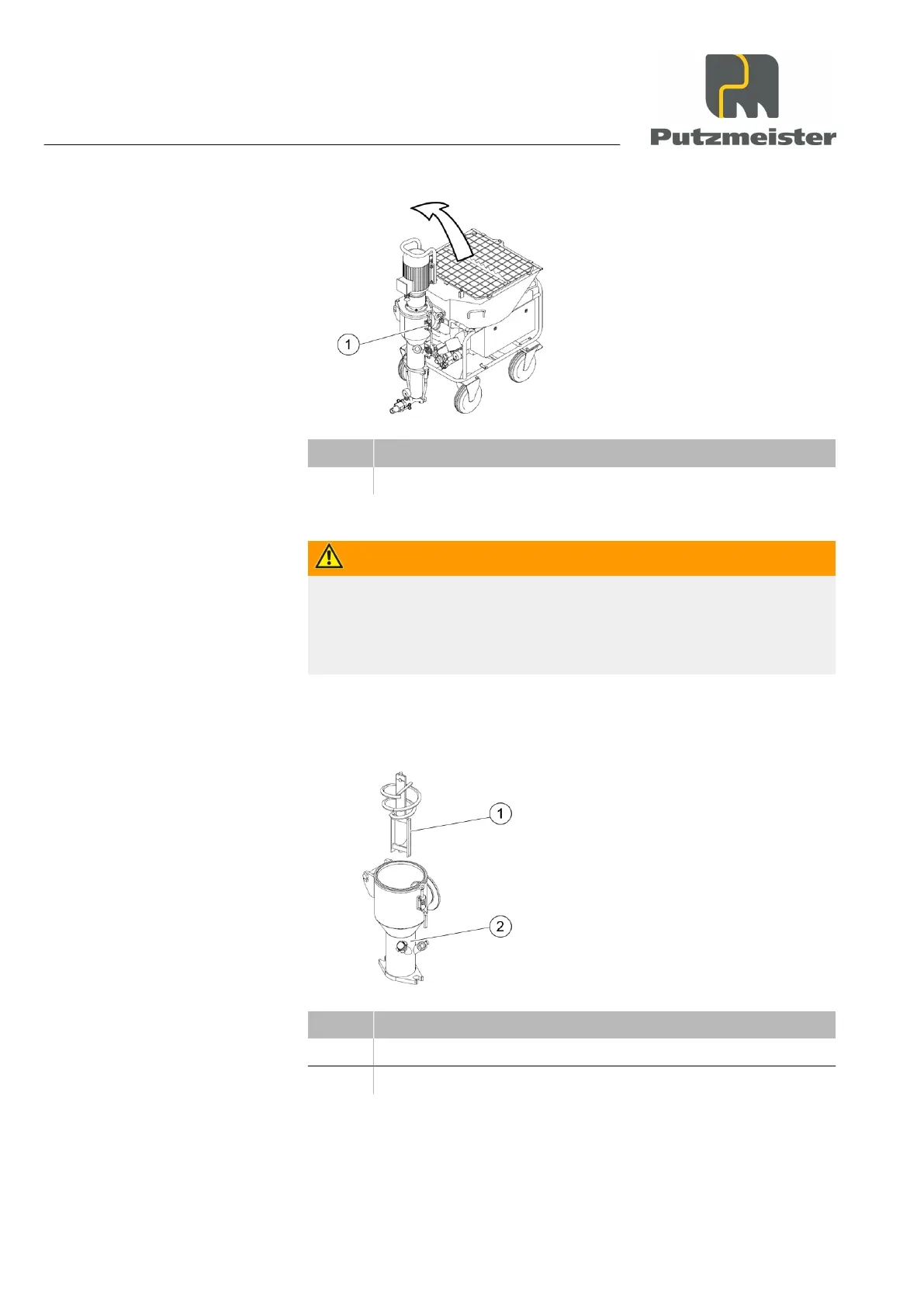

Item Designation
1 Turnbuckle
WARNING
Risk of crushing
▶
When opening the mixer motor, do not reach into moving com‐
ponents.
1. Open the turnbuckle to open the mixer motor.
2. Open the mixer motor sideways.
Item Designation
1 Mixer shaft
2 Mixing pipe
3. Pull the mixer shaft out of the mixing pipe.
⇒
The auger pump can now be mounted.
Starting up
5 — 4
