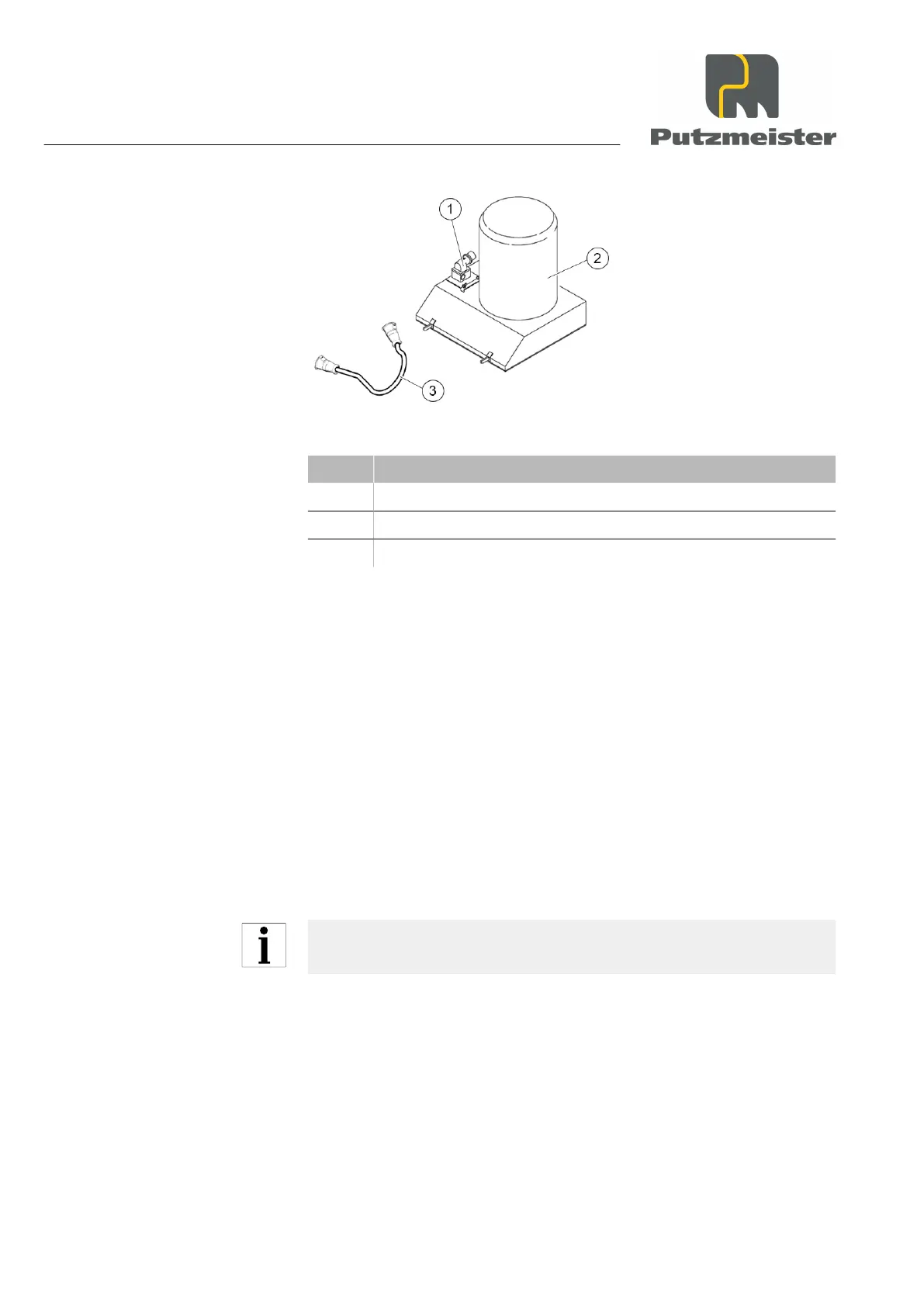

Figure 18: Injection hood (different models available)
Item Designation
1 Fill-level sensor
2 Compact filter
3 Control cable
An injection hood equipped with a compact filter and a fill-level sensor
is placed on the mortar machine. A delivery line connects the injection
hood to the delivery container on the silo/container. A control cable
runs from the fill-level sensor on the injection hood to the control cabi‐
net on the conveying system. A description of how to mount the injec‐
tion hood is provided in the “Transport, setting up and connection”
(Mounting the injection hood P. 4 — 16)
chapter.
3.17.1 Compact filter
The high-volume expansion chamber in the injection hood increases
its intake capacity and thereby guarantees a sufficient material re‐
serve. At the same time, the compact filter ensures that the conveying
air is free from dust.
Clean the compact filter regularly and protect it against moisture.
3.17.2 Fill-level sensor
The fill-level sensor is responsible for determining the material level in
the injection hood (mortar machine). To enable this, the fill-level sen‐
sor is connected to the conveying system control cabinet via a control
cable.
General technical description
3 — 24
