WARNING
Risk of injury due to damage to the compressor
▶
Do not use the device if there is visible damage or if the com‐
pressor is producing unusual sounds or vibrations.
▶
Only qualified personnel may carry out work on the compressor.
3.11 Auger pump
The auger pump fitted in the machine is a so-called displacement
pump. An screw conveyor (rotor) rotates inside a fixed screw convey‐
or barrel (stator). The screw conveyor is made from a highly wear-re‐
sistant and extremely hard metal alloy; the screw conveyor barrel
from a steel sleeve with several slots and an elastic, vulcanised rub‐
ber core.

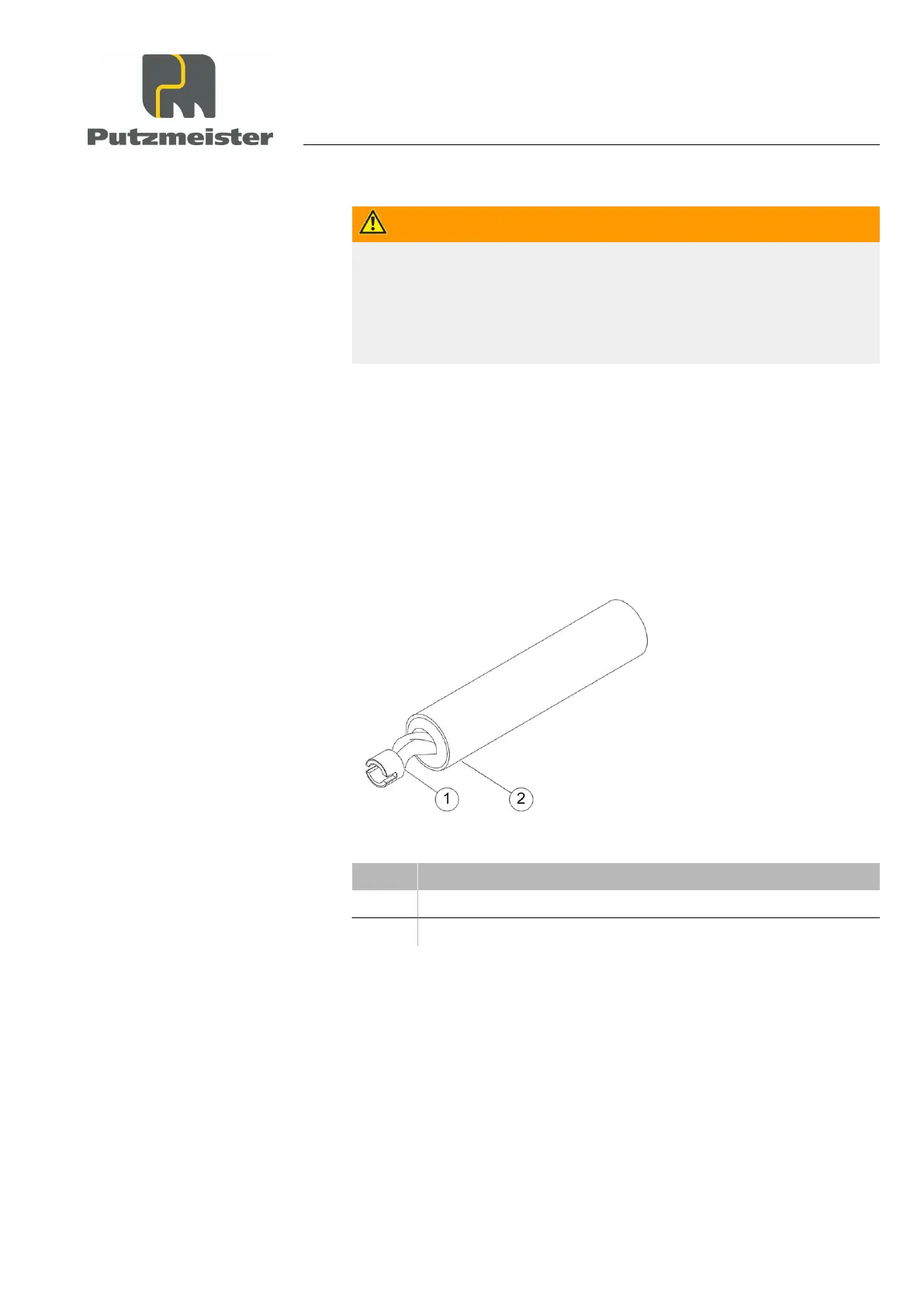

Figure 14: Auger pump overview
Item Designation
1 Screw conveyor
2 Screw conveyor barrel
Depending on the model, the auger pump can be equipped with a
clamping sheath for tightening.
