4.3 Dismantling the machine into individual compo‐
nents
For transport in small spaces, on small truck beds, in stairwells, etc.,
the mixing pump can be dismantled without using tools. The machine
can be dismantled into its individual components and transported by
two people.
The machine can be dismantled into the following components:
● Mixing pump
● Reservoir
● Injection hood (option)
● Base frame
● Compressor

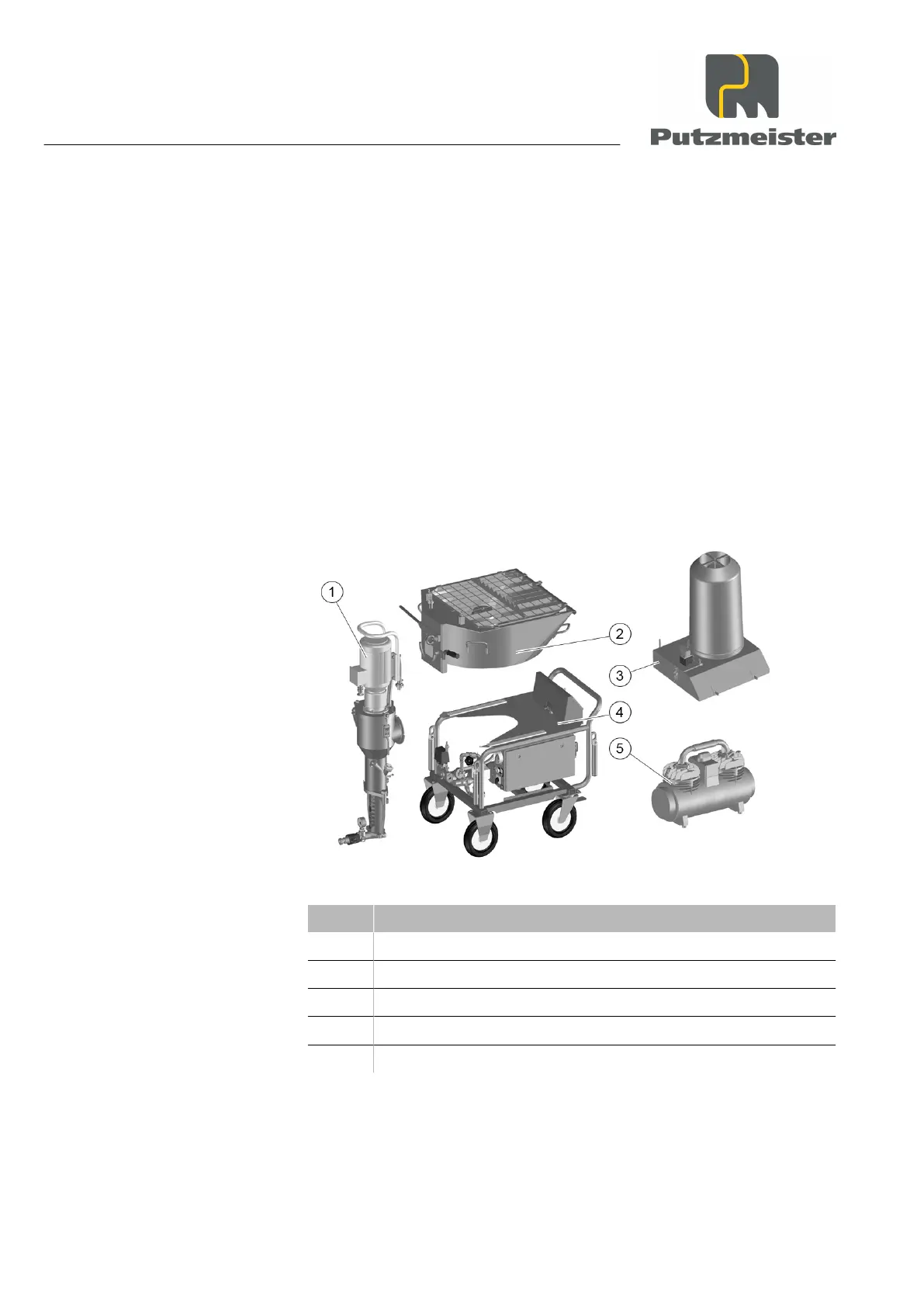

Figure 20: Individual components (different models available)
Item Designation
1 Mixing pump
2 Reservoir
3 Injection hood (option)
4 Base frame
5 Compressor
To dismantle the machine into its component groups, proceed as fol‐
lows:
Transport, setting up and connection
4 — 6
