4.4 Assembling the disassembled machine
After transporting the individual components, proceed as follows to
reassemble the machine.

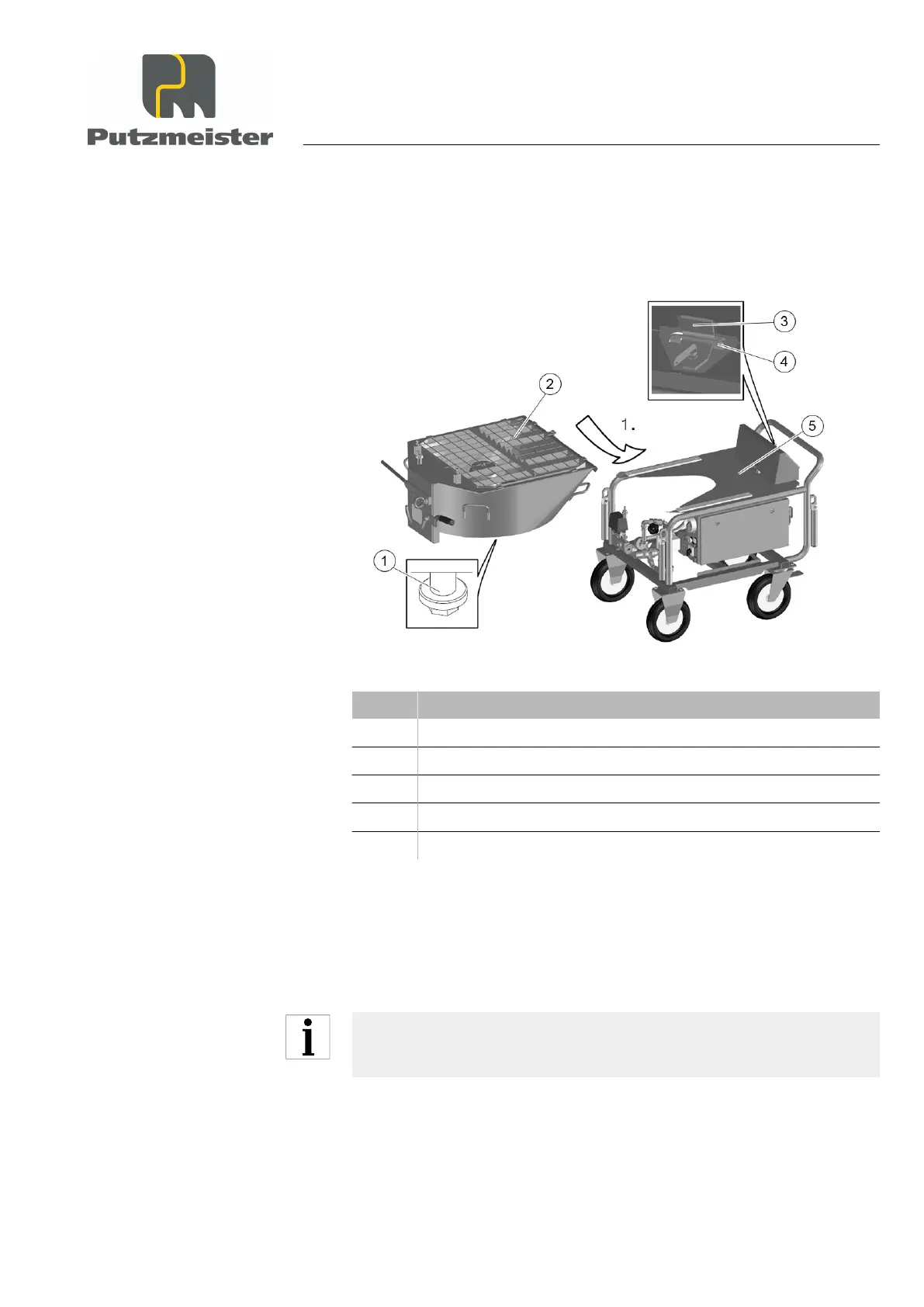

Figure 23: Individual components (different models available)
Item Designation
1 Pin
2 Reservoir
3 Angle bracket
4 Angle retainer
5 Base frame
1. Place the reservoir on the base frame.
2. Slide the reservoir backwards onto the plastic rails.
⇒
The reservoir is positioned centrally in the base frame using
the pins.
Ensure that the angle bracket is inserted in the angle retainer and
that the washers for the pins engage under the plate.
