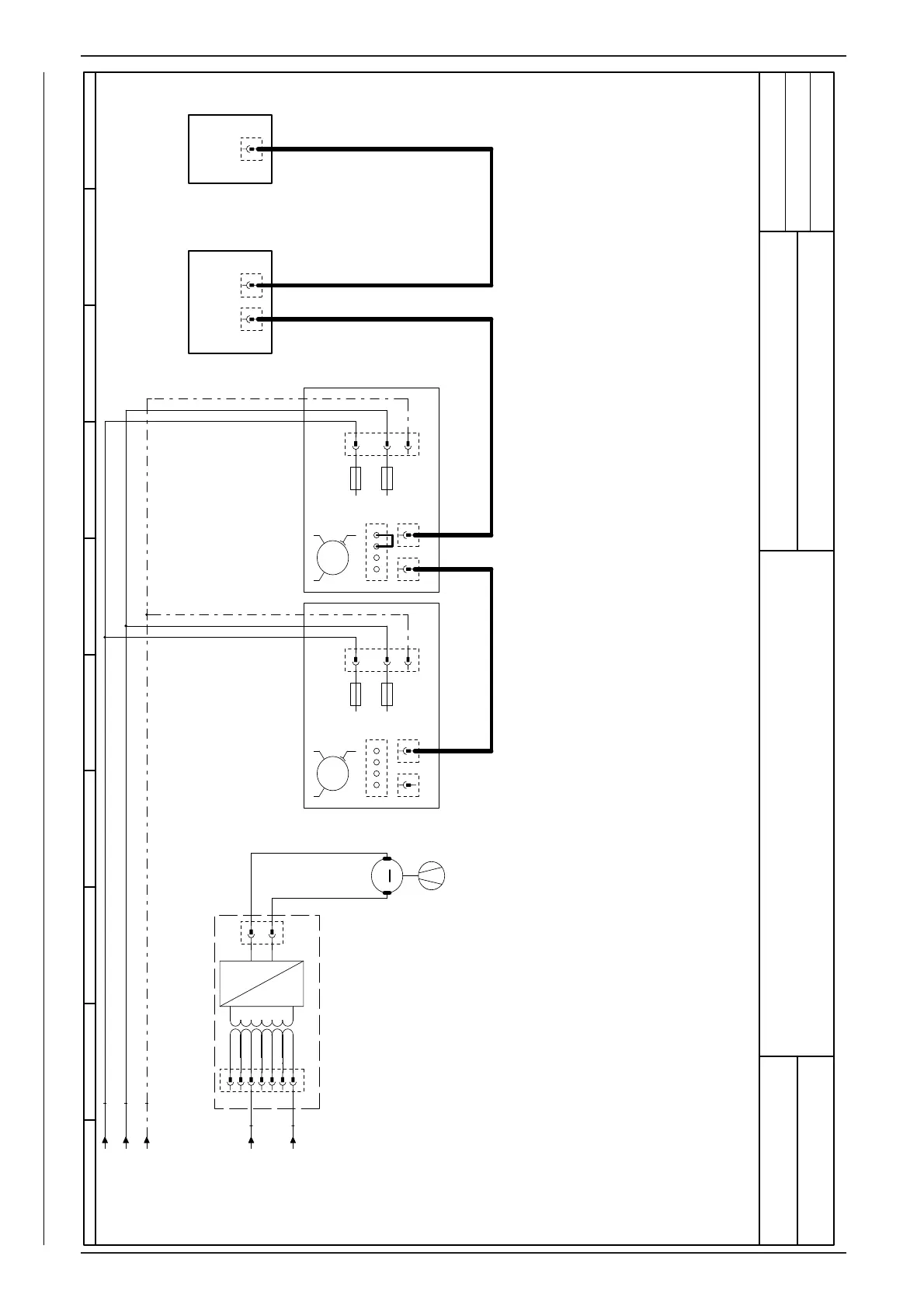

MODUL 5 Lüftermotor
Fan Motor, Cooling Fan
201 - 202
Erstellt von Created by Datum Date Blatt Page
PA
5
30.04.2004
1.08 / K1:13
BN
77
66 55
44
33 22
1.08 / 2.00 / K1:1
1.08 / N
1.08 / PE
1.08 / K1:A2
BU
T4
Trafo 12V
Transformer 12V
~
-
12V
0V
0V 200V 208V 220V 230V 240V 250V
BK
BU
YE/GN
X59
11
22
X67
11
M5
Kühllüfter
Cooling fan
M
unten
down
Lüftermotor
Fan motor
unten down
M1
M
~
RJ45
F20
6,3A
.
F21
6,3A
.
33 22
X221
11
oben
top
Lüftermotor
Fan motor
oben top
M2
M
~
RJ45
F20
6,3A
.
F21
6,3A
.
33
22
X22
11
A1
I/O-PCB
RJ45
A2
Operator PCB
