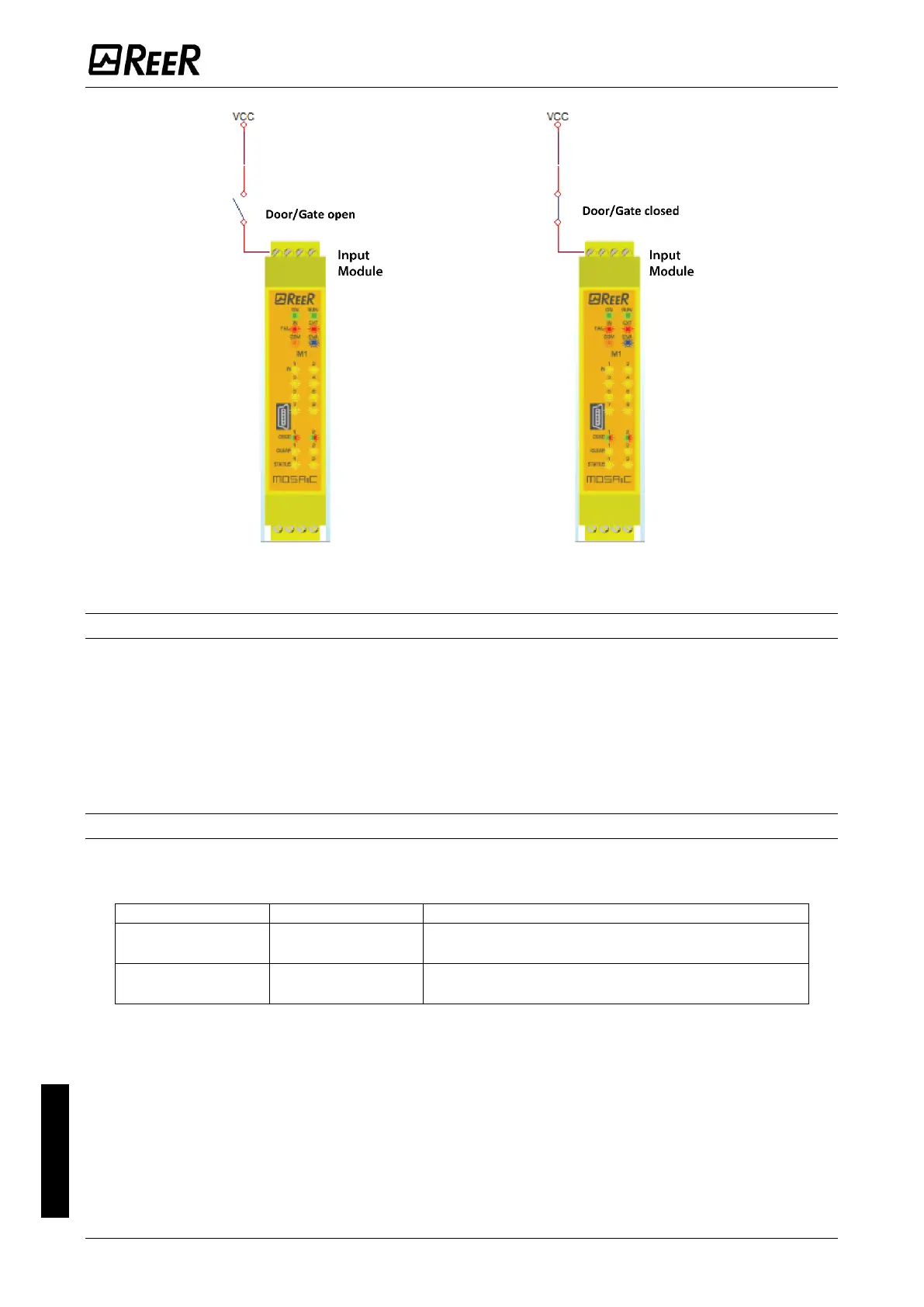

Figure 112 - Example of feedback of the status of a door/gate connected to the guard lock. The
signal received by the module is processed by the "Guard Lock" operator.
“Unlock_cmd” input
The “Unlock_cmd” input detects the command sent by the user to lock or unlock the guard
lock. In detail:
➢ Request to unlock: the Unlock_cmd signal must be set to LL1
➢ Request to lock: the Unlock_cmd signal must be set to LL0
The command signal may be sent via a key, for example.
“Output” out
This signal indicates the information shown in the table below, depending on its value.
Value
Meaning
Output
LL1
• Door/Gate closed
• Guard lock locked
Output
LL0
• User request to unlock the guard lock
• Error condition
