101

SS-L Programming Example

USER GUIDE

PROGRAMMING AND CONFIGURATION EXAMPLES

SMART-SENSOR

™

 2004 – 2014 Reliable Controls

TO CONFIGURE THE SS-L

After the hardware configuration of the SS-L is complete. Use RC-Studio

2.0 to

configure the LCD display of the SS-L.

Using RC-Studio

2.0 connected to the desired system, from the main menu

select Network > System Tree or press Ctrl + P to open the System Tree.

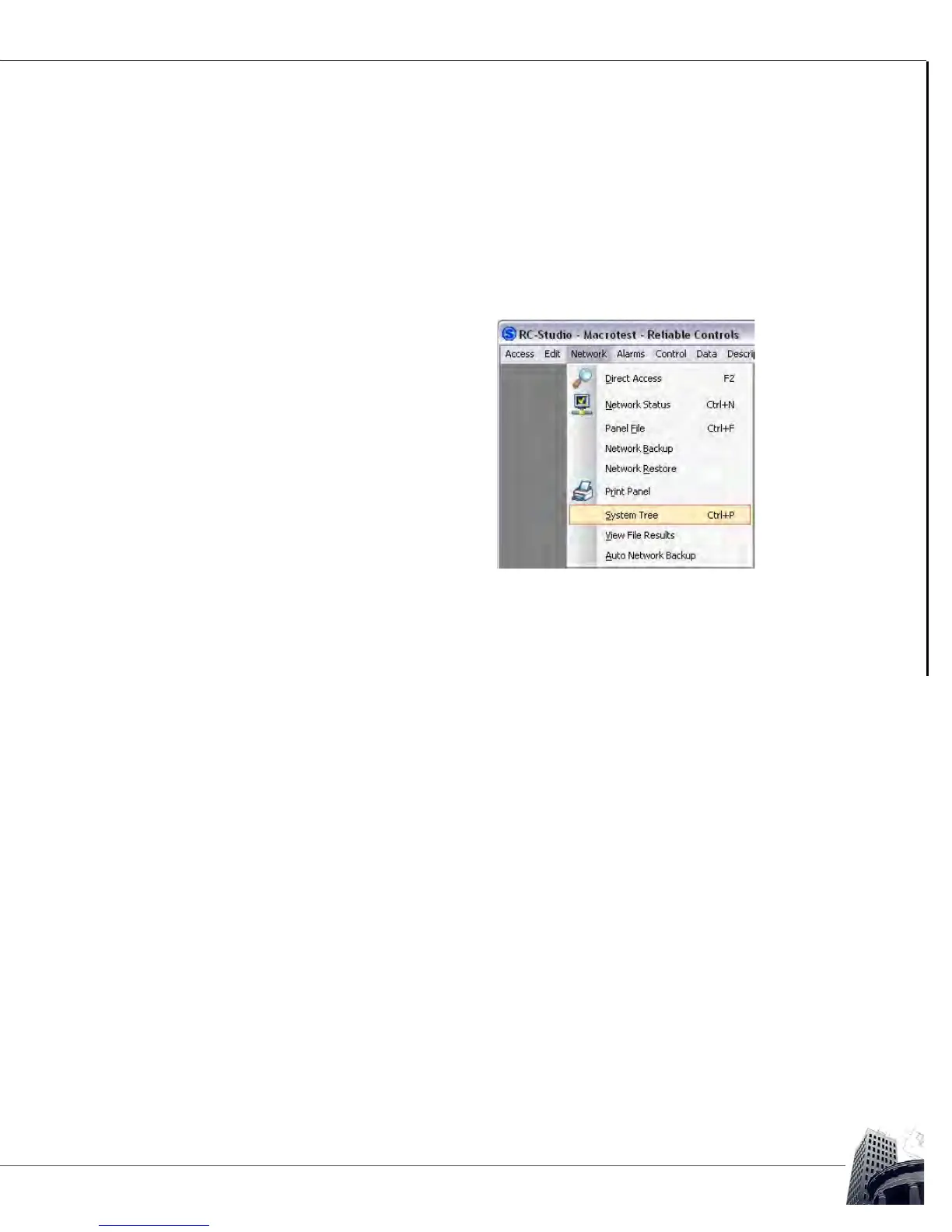

FIGURE 93: SYSTEM TREE MAIN MENU
