SS-L Programming Example
USER GUIDE
PROGRAMMING AND CONFIGURATION EXAMPLES
SMART-SENSOR
™
 2004 – 2014 Reliable Controls
®
Corporation. All rights reserved.

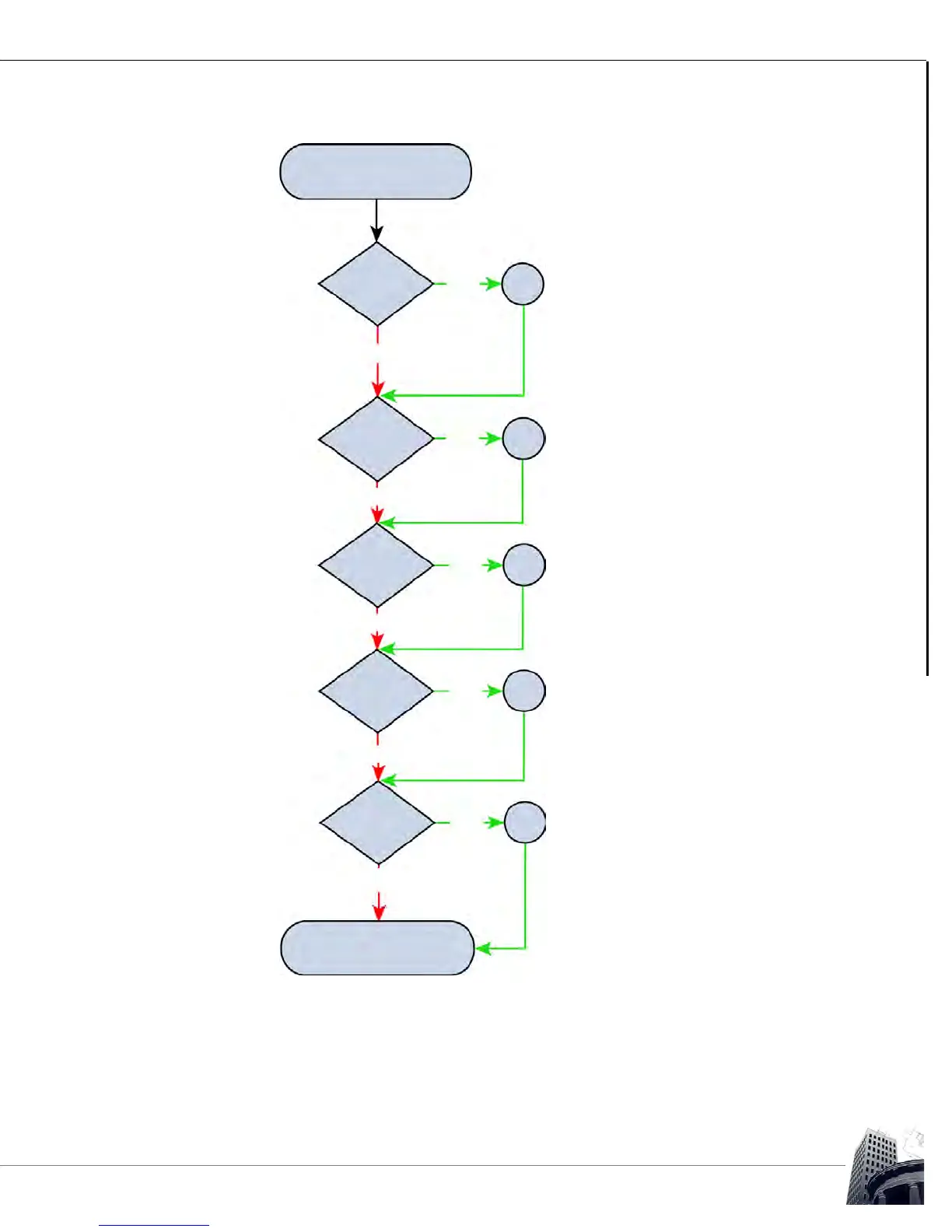

FIGURE 95: SS-L ONBOARD OPTION FLOW CHART
SMART-Sensor
™
LCD
Onboard Options
Temperature
Humidity
Motion
CO
2
Map Remaining
Desired Points
A
B
C
D
NO
NO
NO
NO
YES
YES
YES
YES
Enter the appropriate variable (VAR)
from the host controller into Row 1 of the
SMART-Sensor worksheet and select
the suitable temperature range.
On -H models, the VAR used to map
relative humidity must be entered in Row
4.
On -OC models, the VAR used to map
the motion sensor must be entered in
Row 5. See SS-L Product Bulletin 4294.
On -IO models, the VAR used to map
SS-L input 1 must be entered on Row 7
and the VAR used to map SS-L input 2
must be entered on Row 8. The VAR
used to map SS-L output 1 must be
entered on Row 9 and the VAR used to
map SS-L output 2 must be entered on
Row 10.
I/O
E
YES
On -CO2 models, the VAR used to map
the motion sensor must be entered in
Row 6 with a Range set to PPM.
NO
