For this example, points are referenced from the Inputs worksheet, Outputs worksheet,
and Variable worksheet from two different controllers.

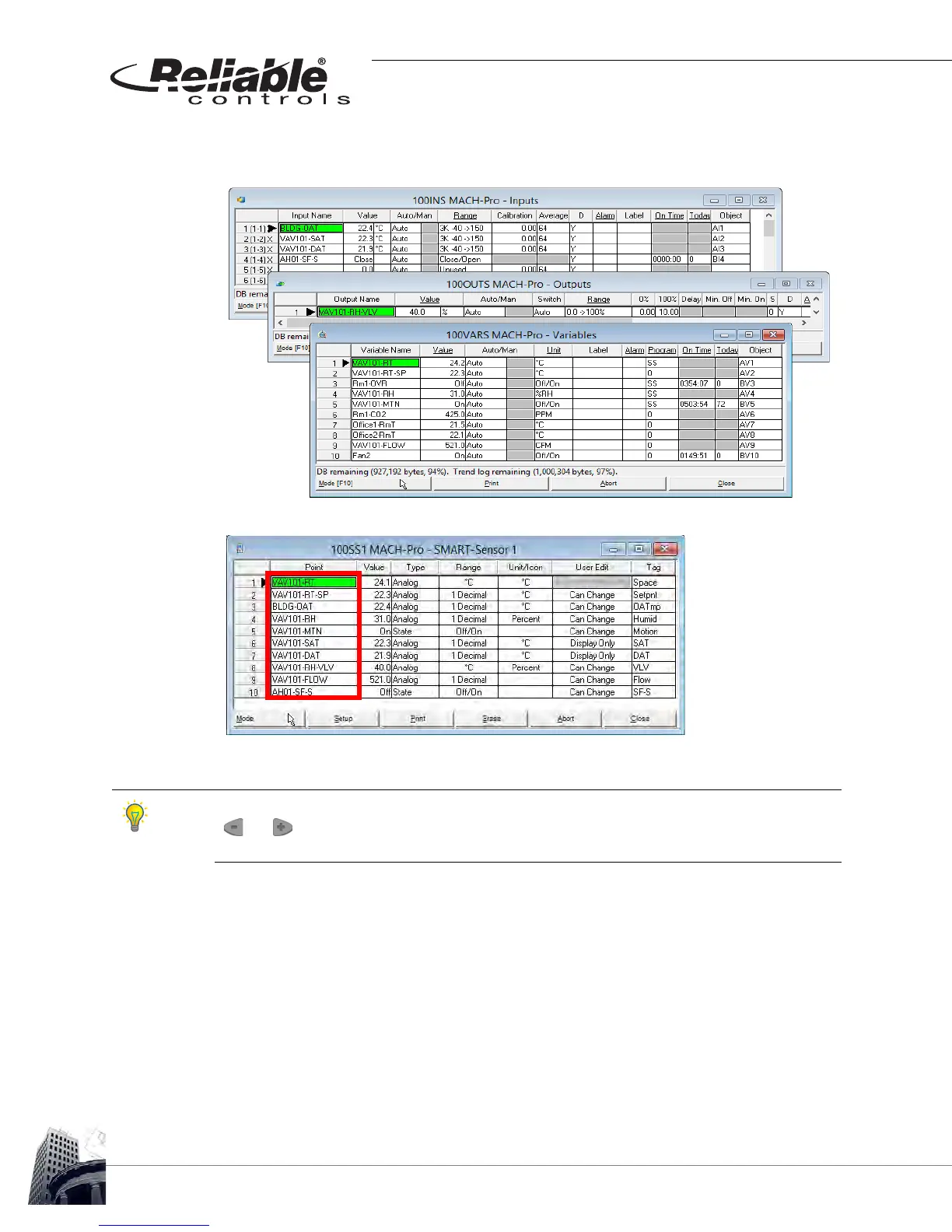

FIGURE 97: SS-L PROGRAMMING EXAMPLE - HOST POINT WORKSHEETS (INS, OUTS & VARS)
F
IGURE 98: SS-L PROGRAMMING EXAMPLE - SMART-SENSOR WORKSHEET WITH POINT REFERENCES
Remember that the point referenced in Row 2 is the quick-adjust point. Pressing either the
or buttons in Idle mode will automatically cause the quick-adjust point to be
displayed and modified.
