There is no hardware configuration necessary to define the outputs of an SS-IO. The
software configuration necessary to define each output is programmed in the SMART-
Sensor worksheet and detailed in Table 16.
* SS-DUCT-IO has solid state relay outputs that switch 24VAC/DC @ 0.5A.
SS-IO outputs terminate consistent with all MACH series TRIAC outputs as detailed in
Figure 65.

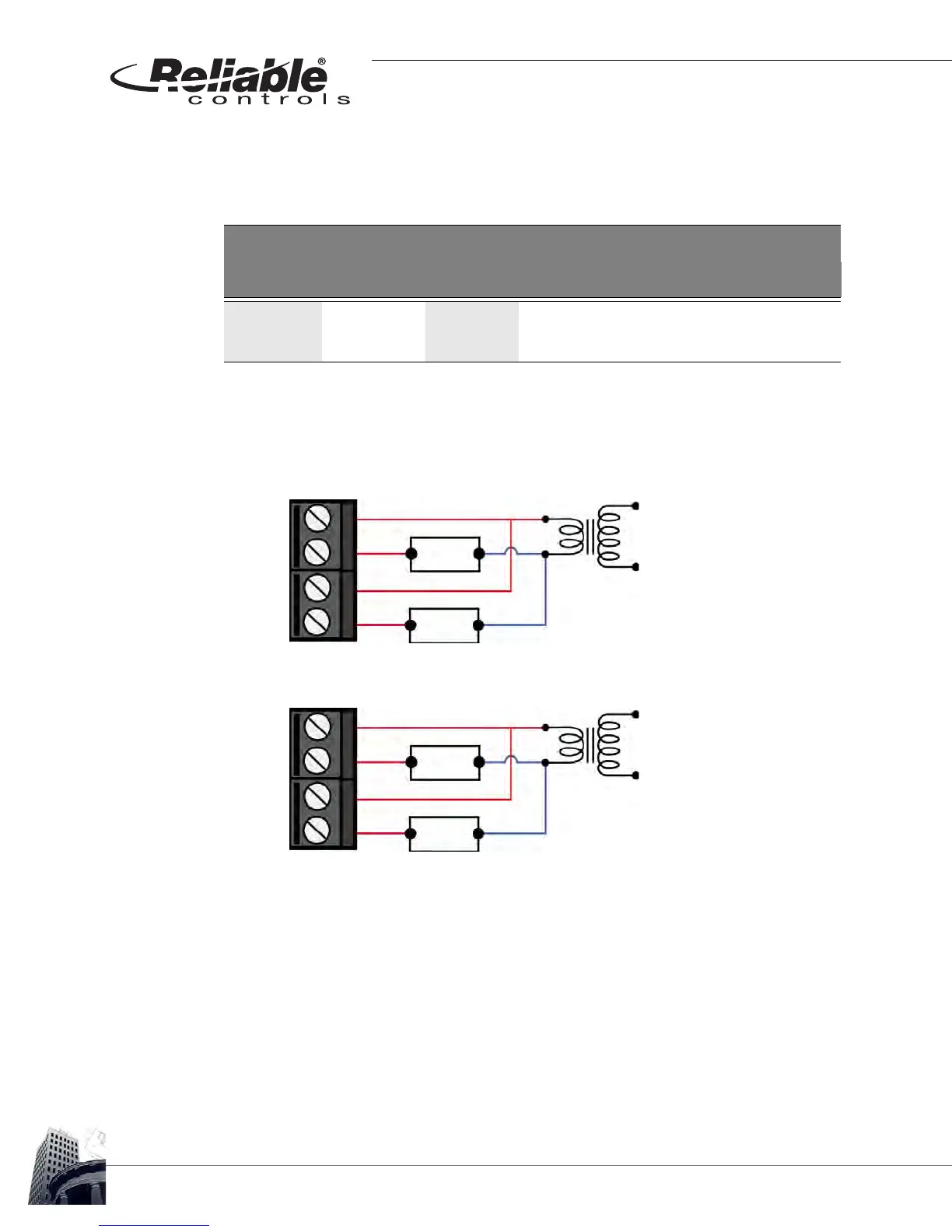

FIGURE 65: SS-IO AND SS-DUCT OUTPUT WIRING
T
ABLE 16: SS-IO OUTPUT PROGRAMMING DETAIL
Physical Characteristics SS Worksheet Configuration
Output Type Row Type Range User Edit
Output 1 TRIAC* Row 9 State Off/On Display/Can Change
Output 2 TRIAC* Row 10 State Off/On Display/Can Change
LOAD
LOAD
Transformer
120 VAC
24 VAC
TRIAC 1
TRIAC 2
RTN-T 1
RTN-T 2
OUT1+
OUT2+
OUT1-
OUT2-
SS-DUCT
SS
LOAD
LOAD
Transformer
120 VAC
24 VAC
