69
Outputs
USER GUIDE
INPUT/OUTPUT POINT OPTION (-IO)
SMART-SENSOR
™
2004 – 2014 Reliable Controls
®
Corporation. All rights reserved.

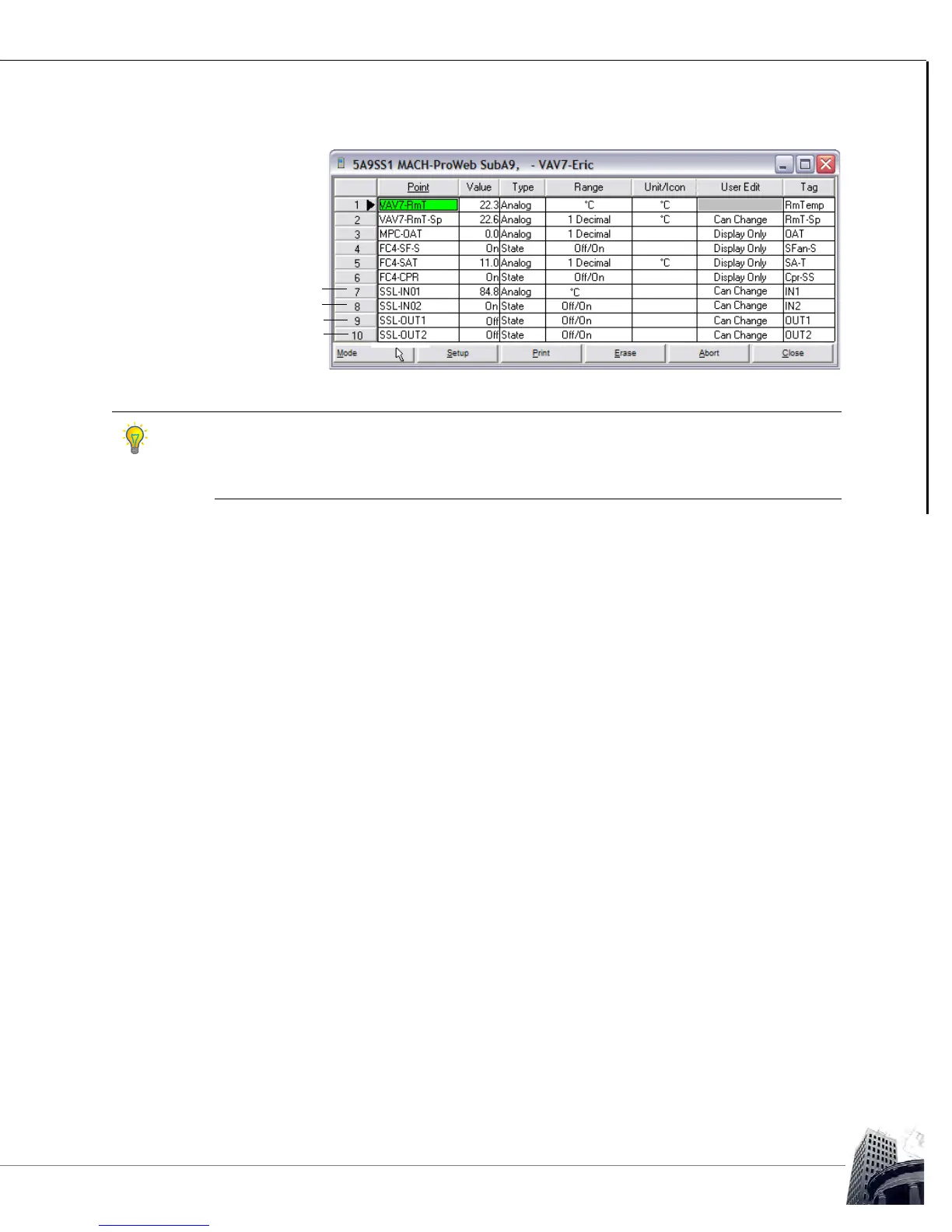

FIGURE 66: SS-IO WORKSHEET RESERVED POINTS
Reserved points for inputs and onboard sensors must be set to Can Change so that the SS
can write to variables in the host controller. Output points do not need to be set to Can
Change unless the operator will be allowed to adjust the points through the SSL-IO
interface.
SS-IO input 1
SS-IO input 2
SS-IO output 1
SS-IO output 2
