The
body
Section Q
Apply
firm pressure
on
the glass from inside the
vehicle, adjacent
to
the
'B'
post and remove rear
quarterlight and rubber weatherstrip.
To
repla
ce
1 Fit rear quarterlight to weatherstrip rubber.
2 Fit a drawcord in the weatherstrip rubber
to
body groove allowing a crossover
of
approximately
152
·4mm
(6
·0in) at the bottom.
3 Position quarterlight
in
the body aperture
with
the cord ends inside the vehicle, at
bottom edge
of
glass.

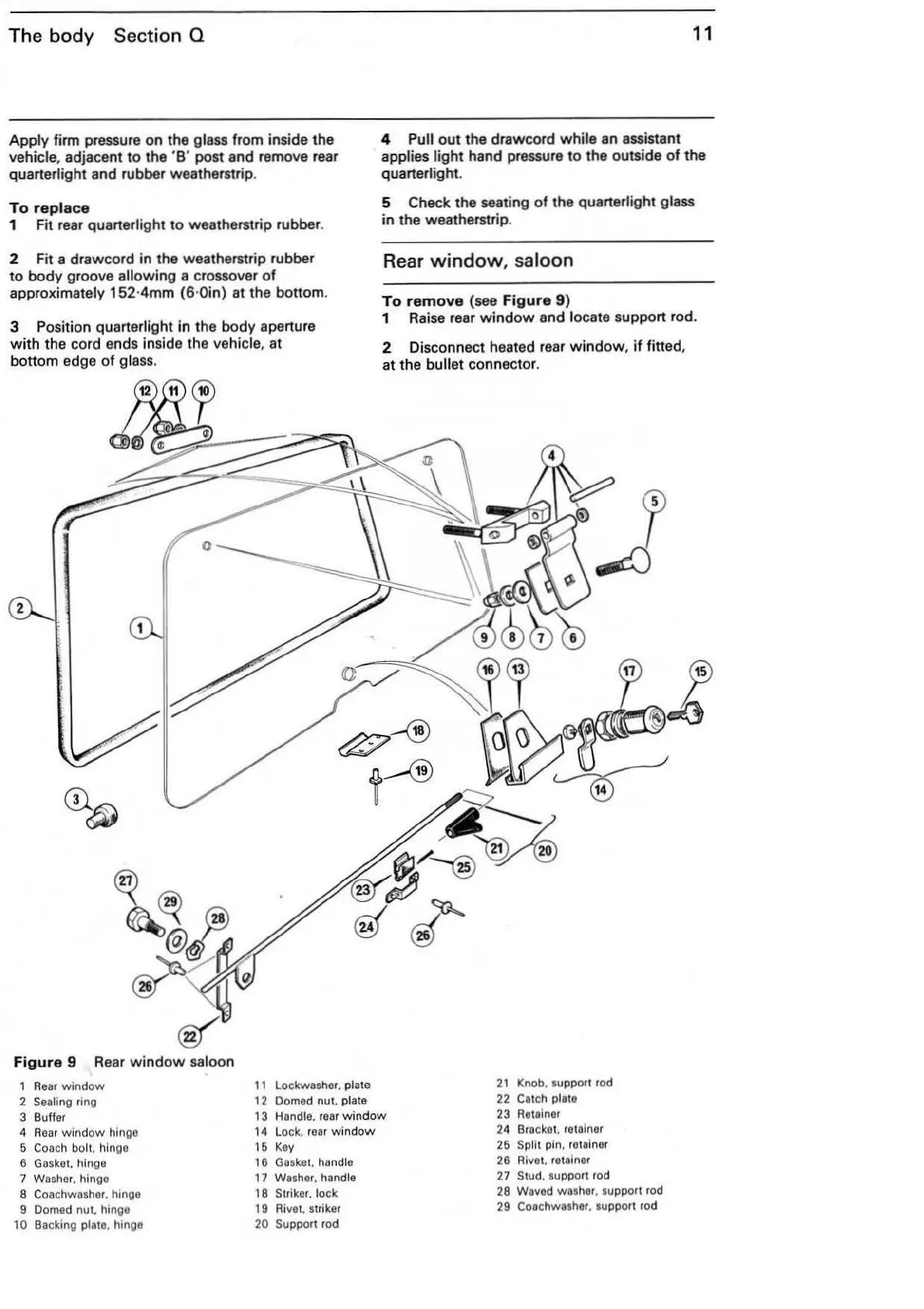

Fi
gur
e 9
Rear
window
sa
l
oo
n
1
Rear
window
2 Sealing ring
11
Lockwasher. plate
12
Domed nut.
pl
ate
11
4 Pull
out
the drawcord
while
an assistant
applies
light
hand pressure
to
the outside
of
the
quarterlight.
5 Check the seating
of
the quarterlight glass
in the weatherstrip.
Rear
wind
ow,
sa
lo
on
To
remove
(see F
ig
ure
9)
1 Raise
rea
r
window
and locate support rod.
2 Disconnect heated rear
window
.
if
fitted,
at the bullet connector.
21
Knob. support rod
22
Catch plate
3 Buffer
4
Rear
wind
ow
hinge
5
Coa
ch boll.
hi
nge
13
Handl
e.
rear
window
14
Lo
ck.
rear
window
16
Key
23
Retainer
24
Brocket. retainer
25
Split pin. rotainor
26
Rivet. retainer
6 Gasket. hinge
7 W
ashe
r.
hin
ge
8 Coachwasher. hinge
9 Domed nut. hinge
10 Backing plate. hinge
1 6 Gasket.
handle
1 7 W
asher.
handle
18
Striker. lock
19 Rivet. striker
20
Support rod
27
Stud. support rod
28 Waved washer, support rod
29 Coachwasher, support
ro
d
