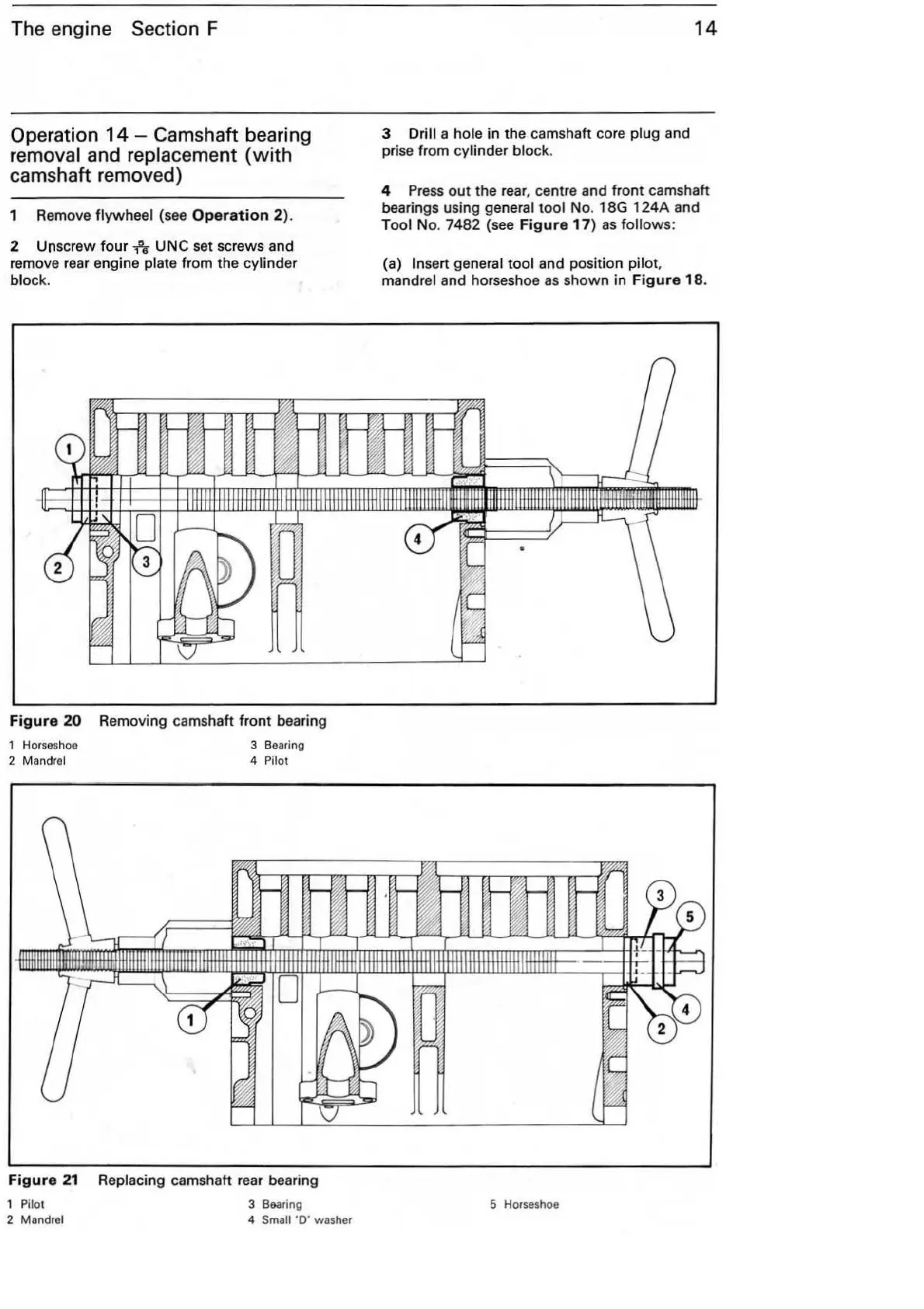

Reliant SUPER ROBIN - Camshaft Bearing Removal and Replacement

The engine Section F
Operation
14 - Camshaft bearing
re mov al and replaceme nt (with
camshaft removed)
1 Remove flywheel (see Operation 2).
2
Unscrew four -h UNC set sc re ws and
remove rear engine plate from the cylinder
block.
Figure 20 Removing camshaft front bearing
1 Horseshoe 3 Bearing
2 Mandrel 4 Pilot
Figure 21 Replacing camshaft rear bearing
1 Pilot 3 Bearing
2 Mandr el 4 Small ·o· washer
3 Drill a hole in the camshaft core plug and
prise from cylinder block.
14
4 Pr ess out the rear, centre and front camshaft
bearings using gen
era l tool No. 18G 124A and
Tool No. 7482 (see Figure 17 ) as follows:
(a) Insert gene ral tool and position pilot,
ma
ndr el and horseshoe as shown in Figure 18 .
5 Horseshoe
