The engine Section F
(b)
Applying firm pressure rotate the general
tool handle until
the camshaft
rear
bearing is
removed
completely from its location.
(c) To remove centre and front camshaft
bearings position the
general tool and
components
as
shown in
Figure
19
and
Figur
e
20
.
(d) To replace camshaft bearings position
general tool and components
as
show
n in
Figure
22

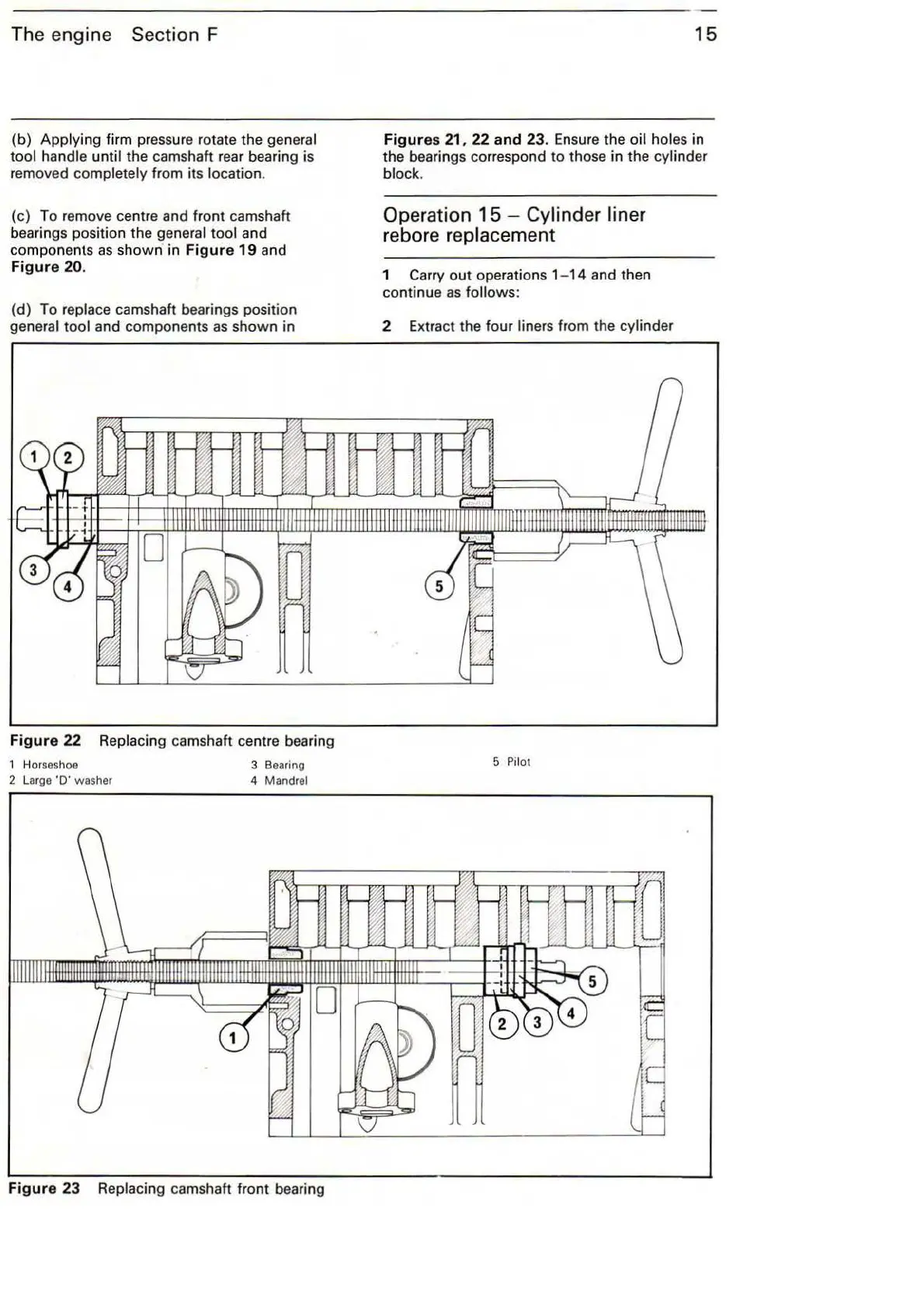

Replacing camshaft centre bearing
1 Hor
ses
hoe
2 Large
·o·
washer
3 Bearing
4
Mandrel
Figure
23
Replacing camshaft fr
ont
bearing
15
Figur
es 21,
22
and
23
. Ensure the oil holes in
the bearings correspond
to
those in the
cy
linder
block.
Operation
15-
Cylinder liner
rebore replacement
1 Carry
out
operations 1-
14
a
nd
then
continue
as
follows:
2 Extract the four liners from the cylinder
5 Pilot
