(2) HALT mode release
The HALT mode can be released by the following two sources.
(a) Release by unmasked interrupt request
When an unmasked interrupt request is generated, the HALT mode is released. If interrupt acknowledgment is
enabled, vectored interrupt servicing is carried out. If interrupt acknowledgment is disabled, the next address
instruction is executed.

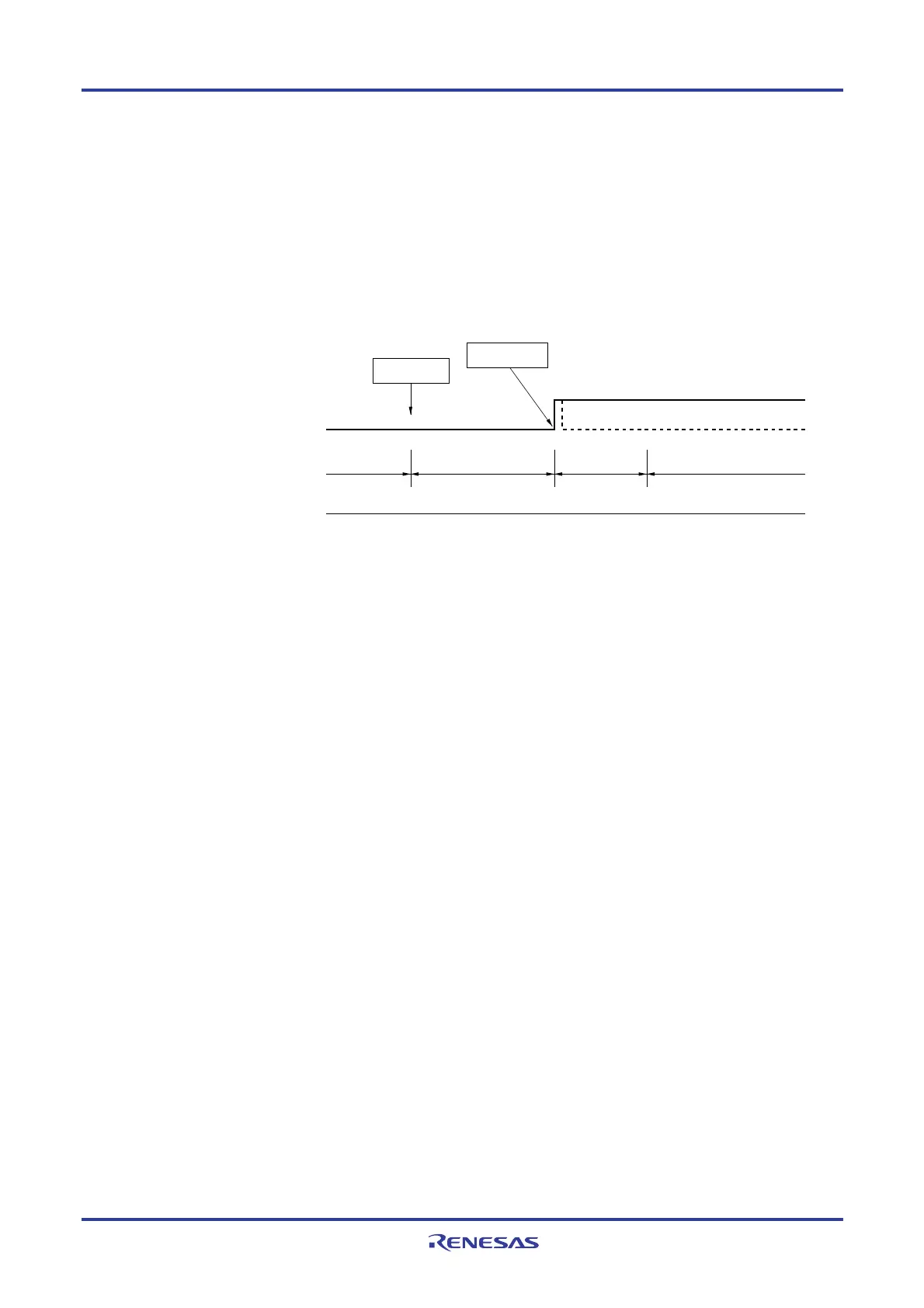

Figure 18-3. HALT Mode Release by Interrupt Request Generation
HALT
instruction
Operating modeHALT modeOperating mode
Oscillation
High-speed system clock,
High-speed on-chip oscillator clock,
or subsystem clock
Status of CPU
Standby
release signal
Interrupt
request
Wait
Note
Note Wait time for HALT mode release
• When vectored interrupt servicing is carried out
Main system clock: 13 to 15 clock
Subsystem clock (RTCLPC = 0): 8 to 10 clock
Subsystem clock (RTCLPC = 1): 9 to 11 clock
• When vectored interrupt servicing is not carried out
Main system clock: 8 to 9 clock
Subsystem clock (RTCLPC = 0): 3 to 4 clock
Subsystem clock (RTCLPC = 1): 4 to 5 clock
Remark The broken lines indicate the case when the interrupt request which has released the standby mode is
acknowledged.
