DURADRIVE Drive Controllers DURADRIVE HDC01.1 Drive Controller 4-45
DOK-DURADR-HDC01.1****-PR02-EN-P
Loadability of connections BR+, BR-:
Units HDC01.1-A040N
max. switching voltage: DC 40 V
max. switching current: DC 4 A
max. continuous current: DC 4 A
Minimum contact load: 100 mA
Guaranteed number of switches at
max. time constant of load <50ms
(L
Bremse
/(24V/I
Bremse
)):
250.000
Short-circuit and overload protection in
the row to the contact
present
Note: The motor holding brake is supplied by the drive controller.
The supply voltage of the holding brake must be 24 V ± 10 %
on the motor side.
Motor holding brake
The controller controls the holding brake.
Supply voltage, current consumption, linking, separating time, holding
torque, etc. see motor manual.
Basic connection of motor power, holding brake and
motor temperature monitoring
AP5363F1.FH7
AC motor
M
3
A1 A2 A3
TM+
TM-
BR+
BR-
HDC
PE
X5
connector
case
temperature
dependent resistance
holding
brake
U
F
G
A
B
C
D
E
H
A
B
C
D
G
E
F
H
I

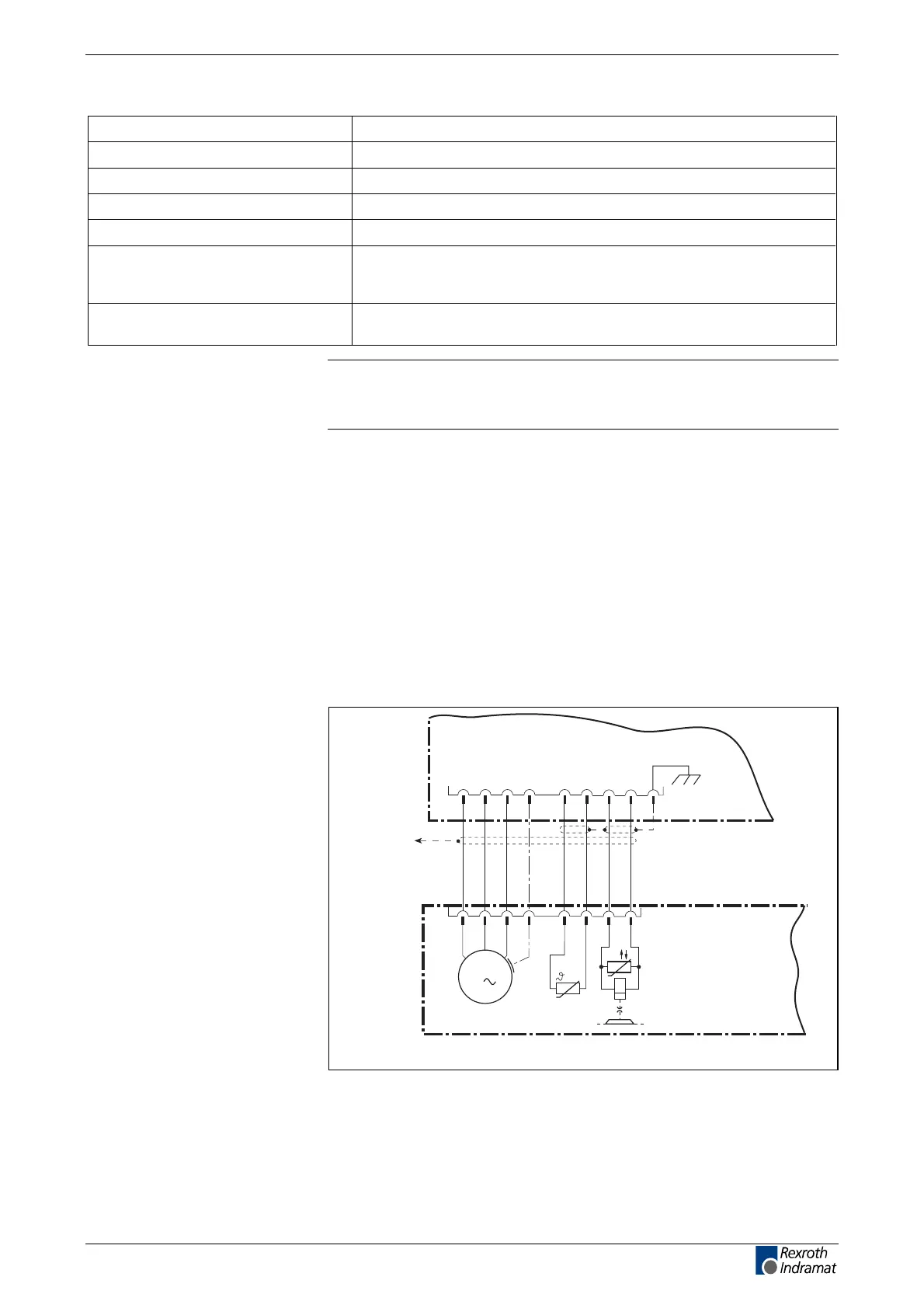

Fig. 4-75: Connection of motor cable, holding brake and temperature monitor
for motors with connectors
Controlling the motor holding
brake
Technical data
Motor holding brake
