Ricoh Aficio MP C3001 Service Manual

Optional Counter Interface Unit Type A (B870)
D086/D087 2-82 SM
2.21 OPTIONAL COUNTER INTERFACE UNIT TYPE A
(B870)
2.21.1 INSTALLATION PROCEDURE
1. Rear cover ( p.4-19)
2. IOB bracket (
p.4-153 "Controller Box")

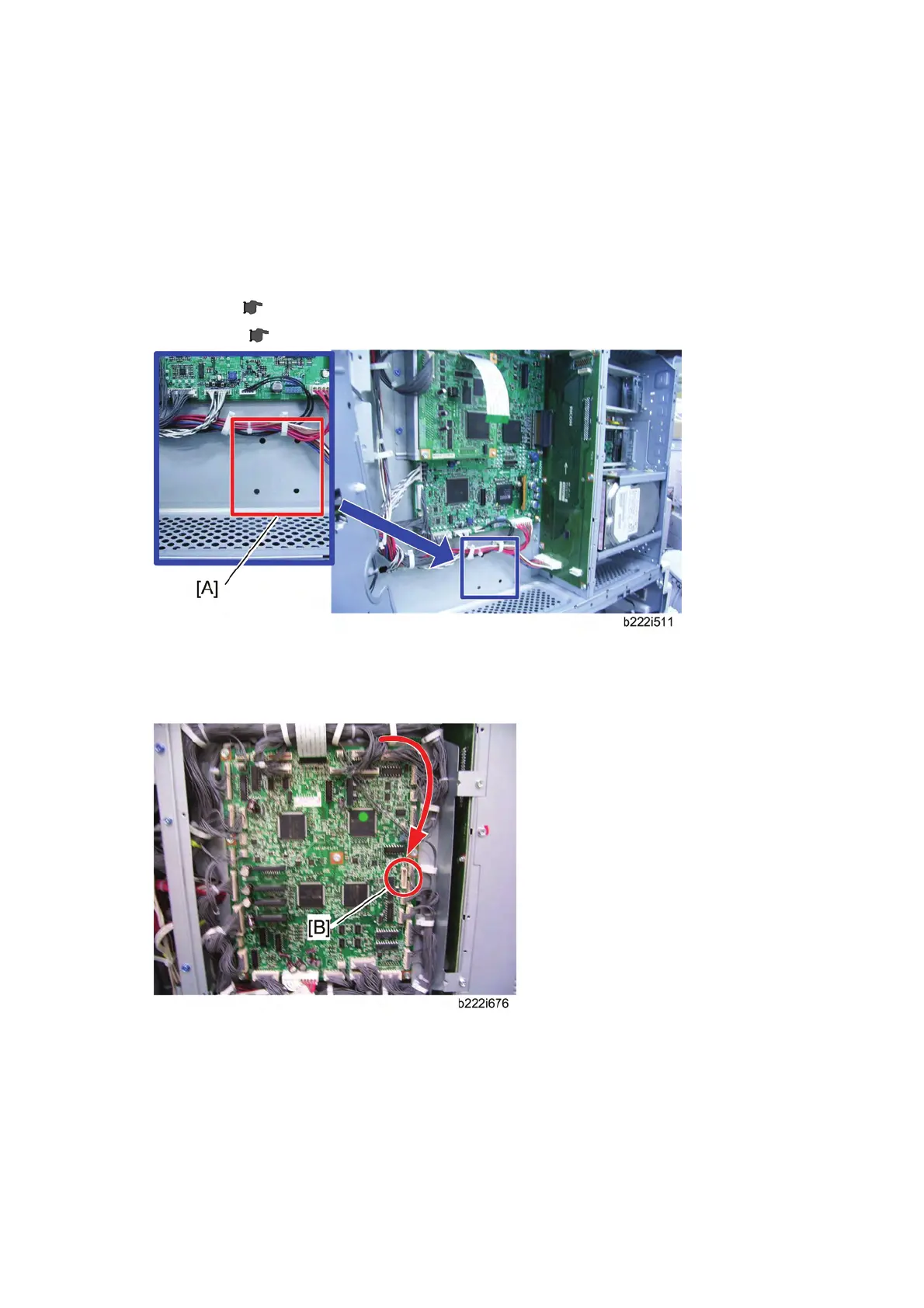

3. Install the four stud stays in the location [A] in the controller box.
4. Install the key counter interface board on the four stud stays in the controller box.
5. Connect the harness to CN3 on the key counter interface board.
6. Close the IOB bracket and connect the other terminal to CN215 [B] on the IOB.

Ricoh Aficio MP C3001 Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	1, 200 sheets
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Copy Resolution	600 x 600 dpi
Paper Capacity (Maximum)	4, 400 sheets
Memory (Standard)	1 GB
Hard Drive	160 GB
Fax Speed	33.6 kbps
Print Speed	30 ppm
Connectivity	USB, Ethernet
Copy Speed	30 ppm (mono) / 30 ppm (color)
Paper Size	A3, A4, A5, B4, B5
Memory (Maximum)	1.5 GB
Max Paper Size	A3
Operating System Compatibility	Windows, Mac
