Ricoh Aficio MP C3001 Service Manual

Fusing
D086/D087 4-128 SM
4.11.18 IH COIL FAN

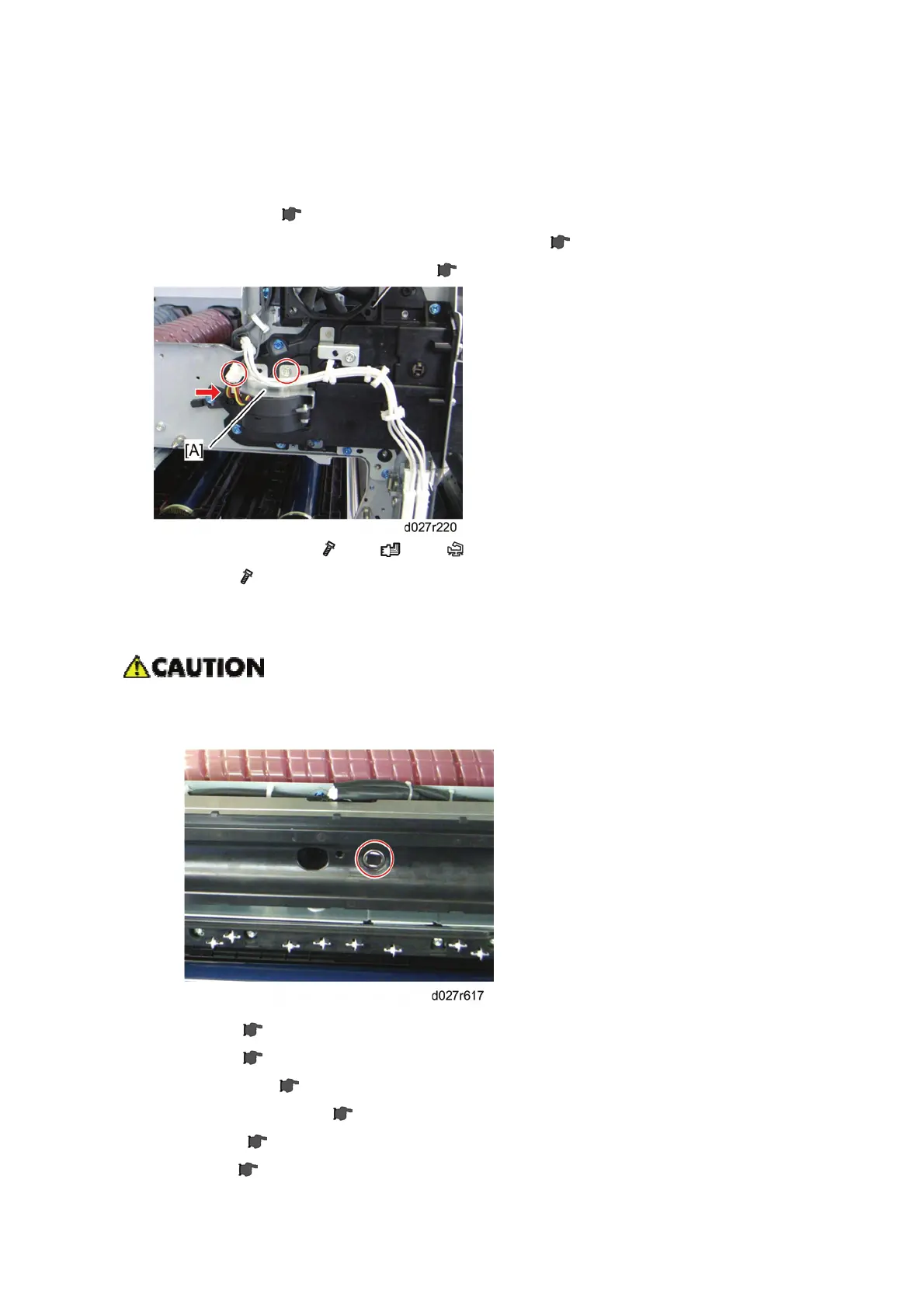

1. Open the right door.
2. Front right cover (
p.4-20 "Operation Panel")
3. Pull out trays 1 and 2, and the image transfer belt unit (
p.4-123)
4. Right front cover and front inner cover (
p.4-123)
5. IH coil fan bracket [A] (
x 1, x 1, x 1)
6. IH coil fan (
x 2)
4.11.19 IH COIL UNIT
 Do not push the thermostats on the IH coil unit. If you do, the thermostats will be
opened. In that case, the IH coil unit must be replaced.
1. Fusing unit (
p.4-99)
2. Rear cover (
p.4-19)
3. Right rear cover (
p.4-19)
4. Open the controller box (
p.4-153 "Controller Box").
5. Fusing duct (
p.4-120)
6. IH inverter (
p.4-161)
