Laser Optics
D086/D087 4-46 SM
Installing a new Laser Optics Housing Unit
 A new laser optics housing unit has a bracket to protect the LD units. When you
install the new unit, do not remove the bracket until near the end of the installation
procedure (the correct time is stated in the manual).
 This bracket protects a capacitor on the unit. If the bracket is removed too early, you
could break the capacitor on the corner of the main frame when you install the new
unit.

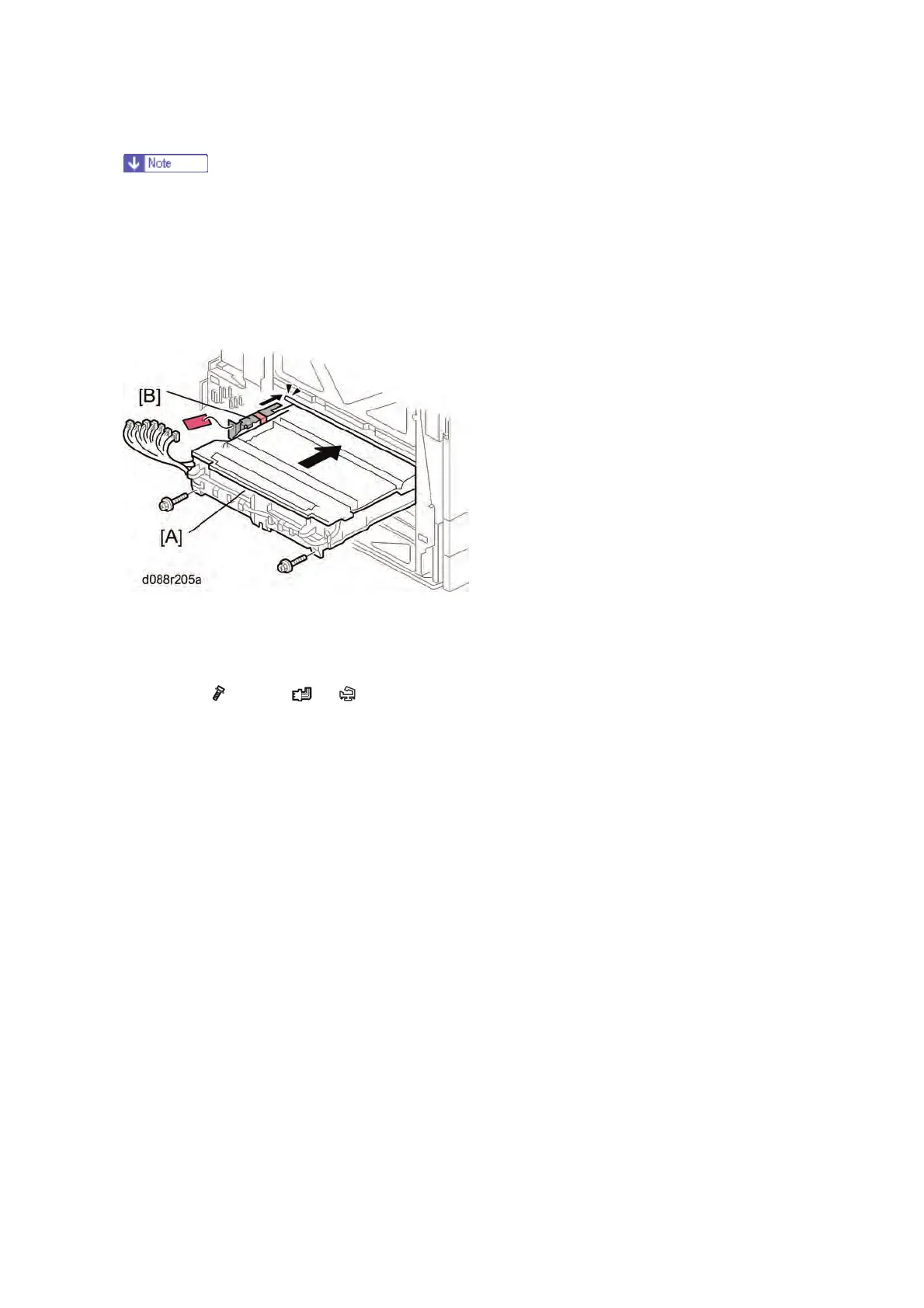

1. Push the new laser optics housing unit [A] slowly into the copier until the bracket [B]
bumps against the frame of the copier.
2. Remove the bracket [B], and then push the new laser optics housing unit fully into the
copier (
x 2, All 's, x 3).
3. Reassemble the machine.
