Ricoh Aficio MP C3001 - Electrical Components; Boards

Electrical Components
SM 4-151 D086/D087
Replacement
and
Adjustment
4.14 ELECTRICAL COMPONENTS
4.14.1 BOARDS

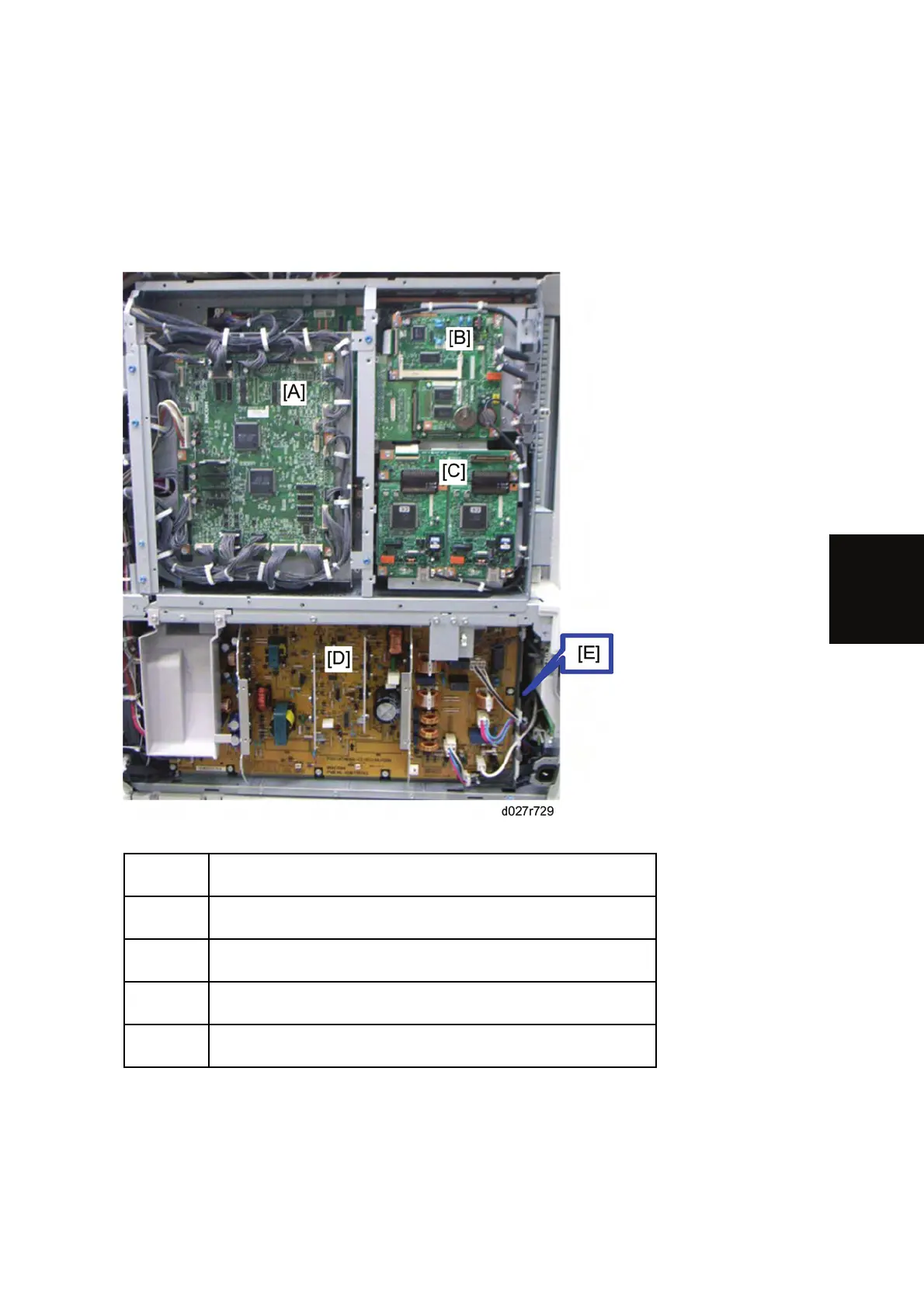

Controller Box closed
[A] IOB
[B] FCU (Option)
[C] G3 Interface Unit (Option)
[D] PSU
[E] High Voltage Supply Board (Behind the PSU [D] )
