Ricoh Aficio MP C3001 - Stamp Solenoid and Original Exit Sensor

Electrical Components
SM 11 D541
ARDF DF3050
D541

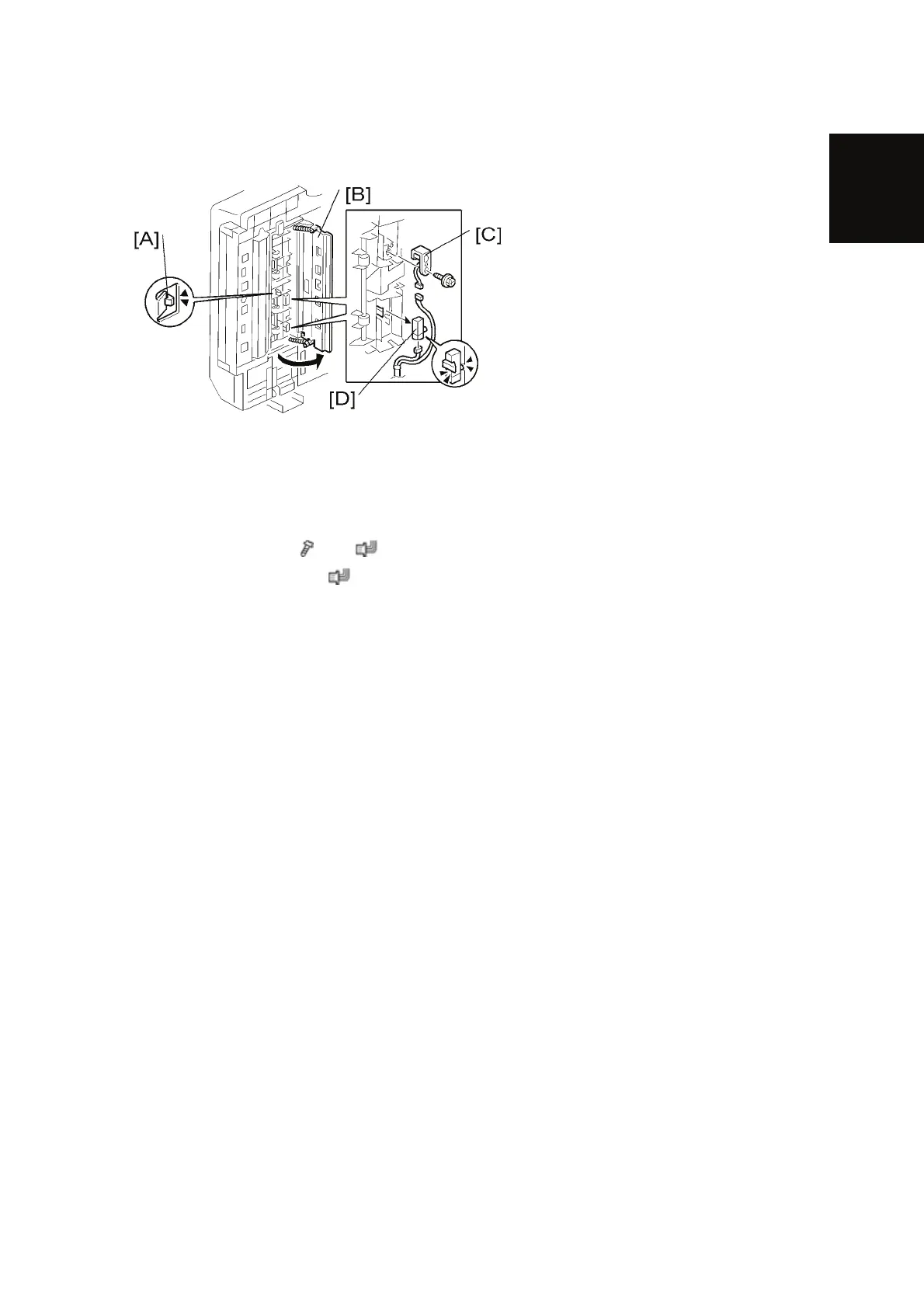

1.3.5 STAMP SOLENOID AND ORIGINAL EXIT SENSOR
1. Open the ARDF.
2. Remove the left edge of the platen sheet.
3. Release the hook [A].
4. Open the original exit guide plate [B]
5. Stamp solenoid [C] (
x 1, x 1)
6. Original exit sensor [D] (
x 1, hook x 1)
