Ricoh Aficio MP C3001 - Controller Box; When Opening the Controller Box

Electrical Components
D086/D087 4-156 SM
4.14.4 CONTROLLER BOX

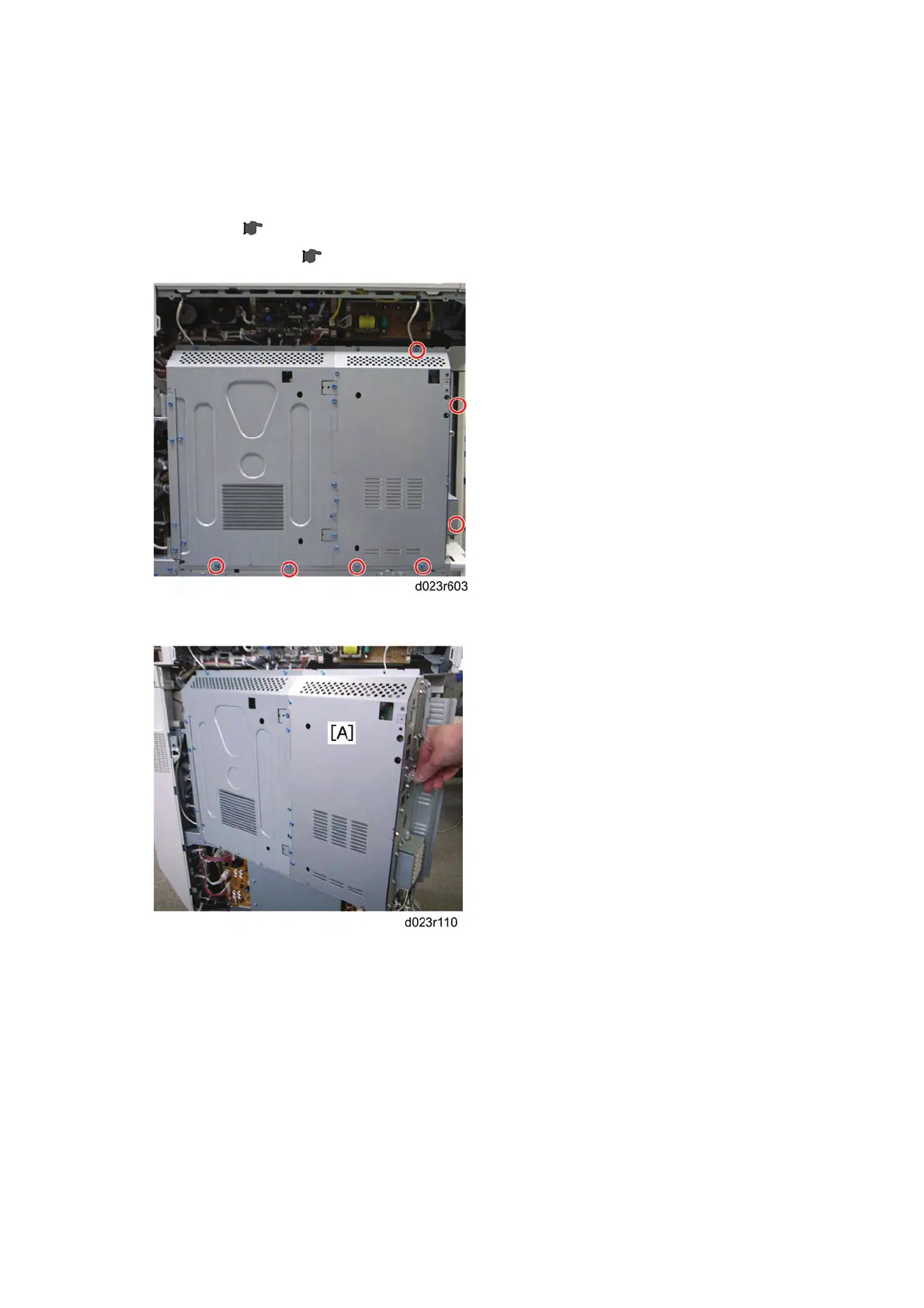

When opening the controller box
1. Rear cover ( p.4-19)
2. Scanner rear cover (
p.4-26 "Exposure Lamp")
3. Remove seven screws.
4. Open the controller box [A].
