Electrical Components
SM 3 D542
Side Tray
Type C5501
D542
1.2 ELECTRICAL COMPONENTS

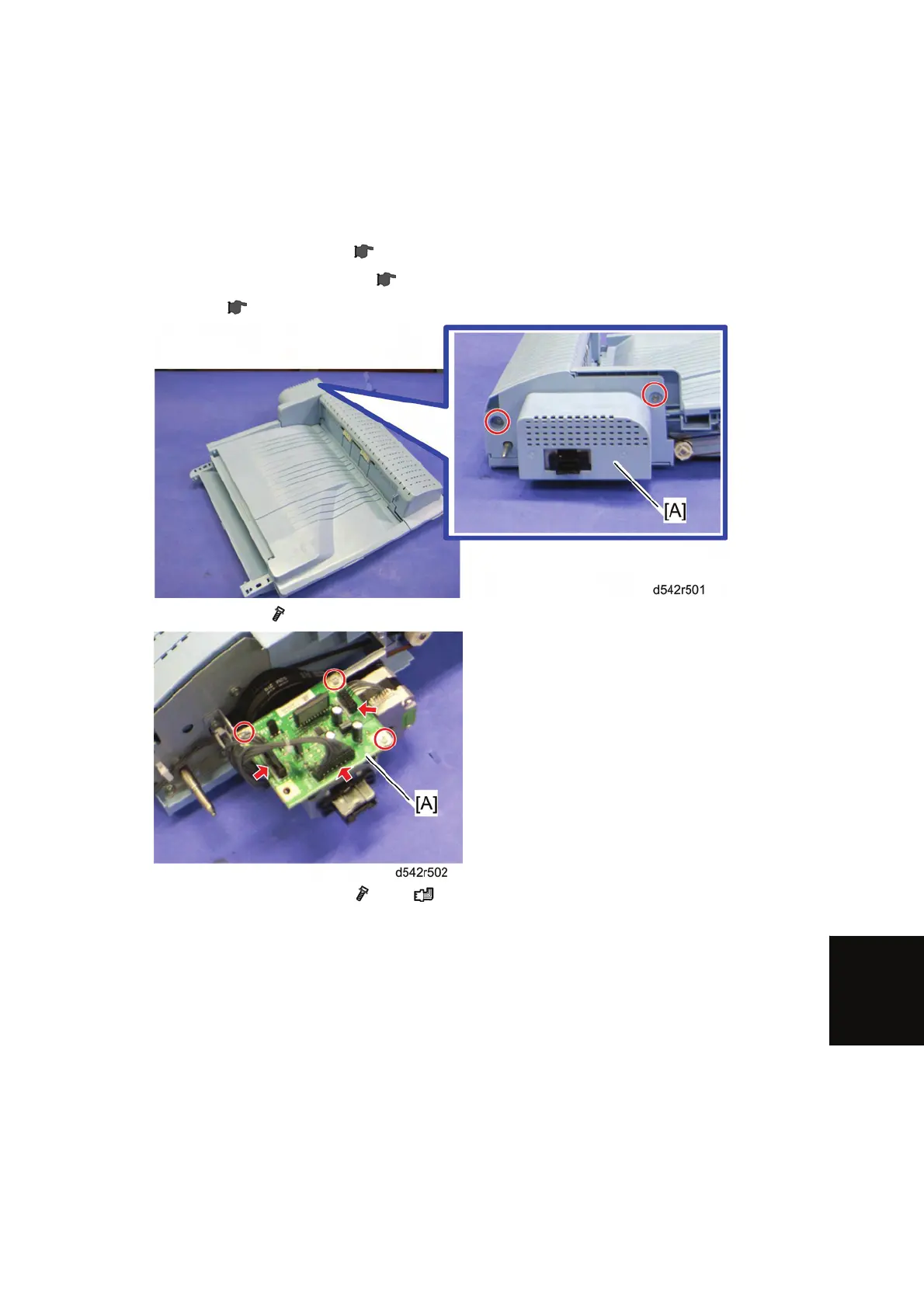

1.2.1 SIDE TRAY CONTROL BOARD
1. Sub and main output trays ( Sub and Main Output Trays)
2. Tray left front and rear covers (
Tray Left Front and Rear Covers)
3. Side tray (
Installation Procedure in the base copier manual)
4. Rear cover [A] (
x 2)
5. Side tray control board [A] (
x 3, x 3)
To Next Page
