Controller Options
SM 2-115 D086/D087
Installation

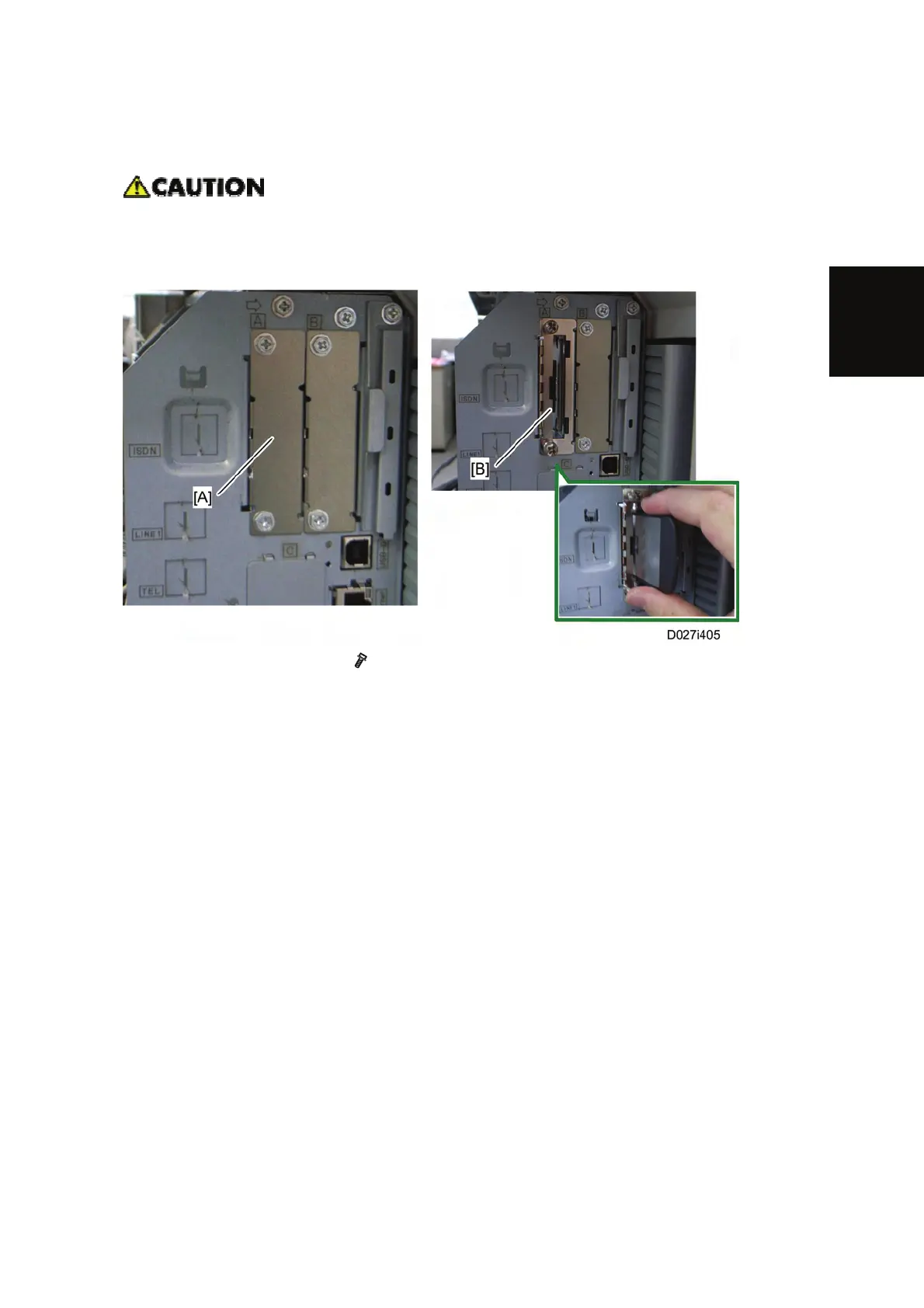

2.26.8 BLUETOOTH INTERFACE UNIT TYPE 3245
 Unplug the main machine power cord before you do the following procedure.
You can only install one of the following network interfaces at a time: (IEEE 802.11 a/g
(Wireless LAN), IEEE1284, Bluetooth).
1. Remove the slot cover [A] (
x 2).
2. Install the Bluetooth board [B] (Knob-screw x 2) into the slot A.
3. Insert the Bluetooth card into the Bluetooth card adaptor.
4. Install the Bluetooth card adaptor on the Bluetooth board.
5. Attach the antenna cap to the Bluetooth board.
6. Make sure that the machine can recognize the option (see ‘Check All Connections’ at the
end of this section).
