Ricoh Aficio MP C3001 Service Manual

Image Creation
SM 4-59 D086/D087
Replacement
and
Adjustment

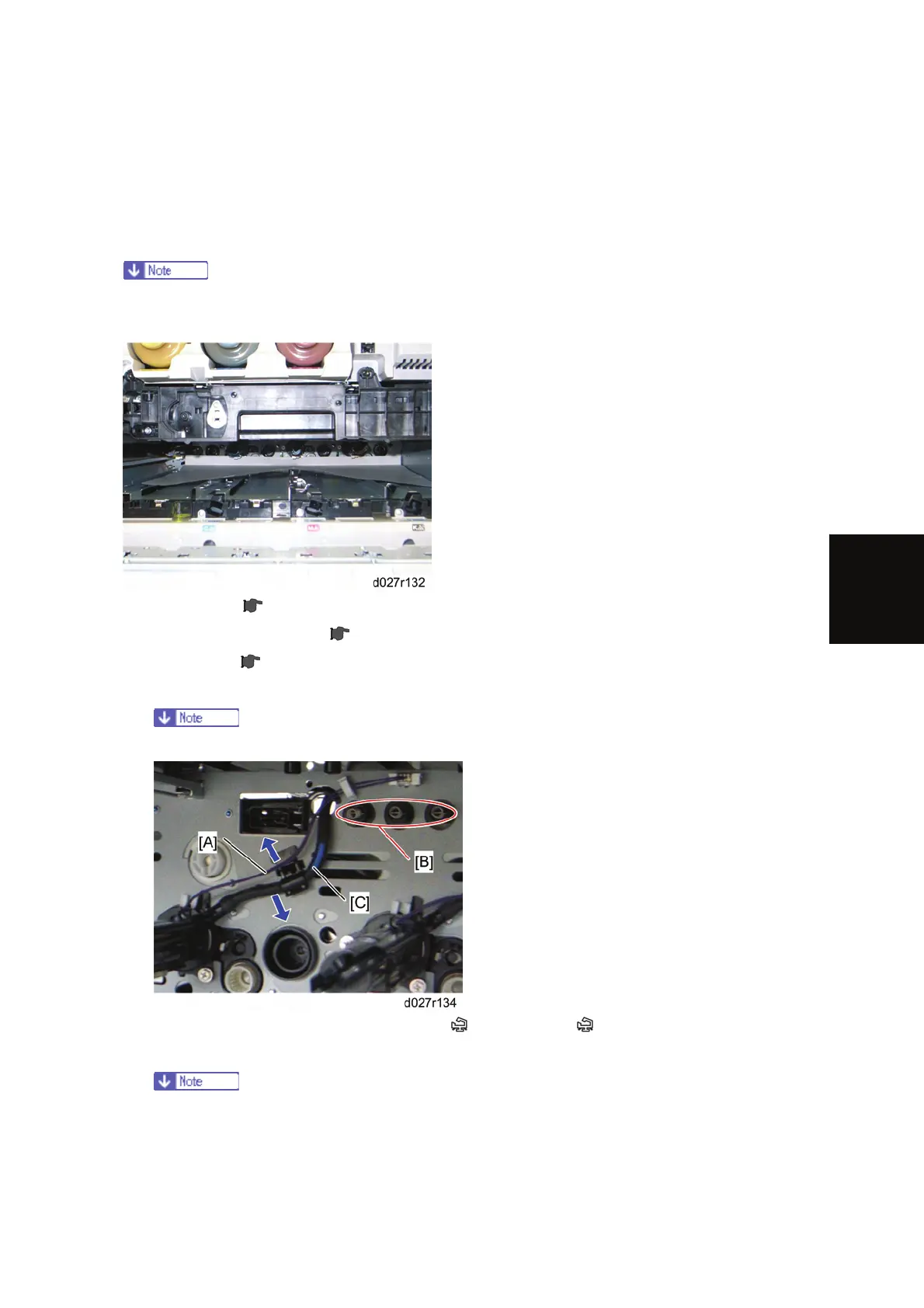

4.7.6 TONER PUMP UNIT
There are four pump units inside the machine. This procedure describes the replacement
procedure only for one unit. If you need to replace another unit, do the same as this
procedure.
 Put some sheets of paper on the floor before doing this procedure. Toner may fall on
the floor.
1. Rear cover (
p.4-19)
2. Image transfer belt unit (
p.4-63)
3. All PCDUs (
p.4-49)
4. Put a sheet of paper (A3/DLT) inside the machine as shown and on the floor.
 The sheet of paper on the floor is used in a later step.
5. Release the harness [A] from the clamp ( x 1 for YCM, x 2 for K) and hook, and
then disconnect the harness.
 Avoid touching these spring terminals [B].
6. Release the toner supply tube [C].

Ricoh Aficio MP C3001 Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	1, 200 sheets
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Copy Resolution	600 x 600 dpi
Paper Capacity (Maximum)	4, 400 sheets
Memory (Standard)	1 GB
Hard Drive	160 GB
Fax Speed	33.6 kbps
Print Speed	30 ppm
Connectivity	USB, Ethernet
Copy Speed	30 ppm (mono) / 30 ppm (color)
Paper Size	A3, A4, A5, B4, B5
Memory (Maximum)	1.5 GB
Max Paper Size	A3
Operating System Compatibility	Windows, Mac
