Ricoh Aficio MP C3001 Service Manual

Card Reader Bracket Type C5501 (D547)
D086/D087 2-90 SM
2.23.2 INSTALLATION PROCEDURE

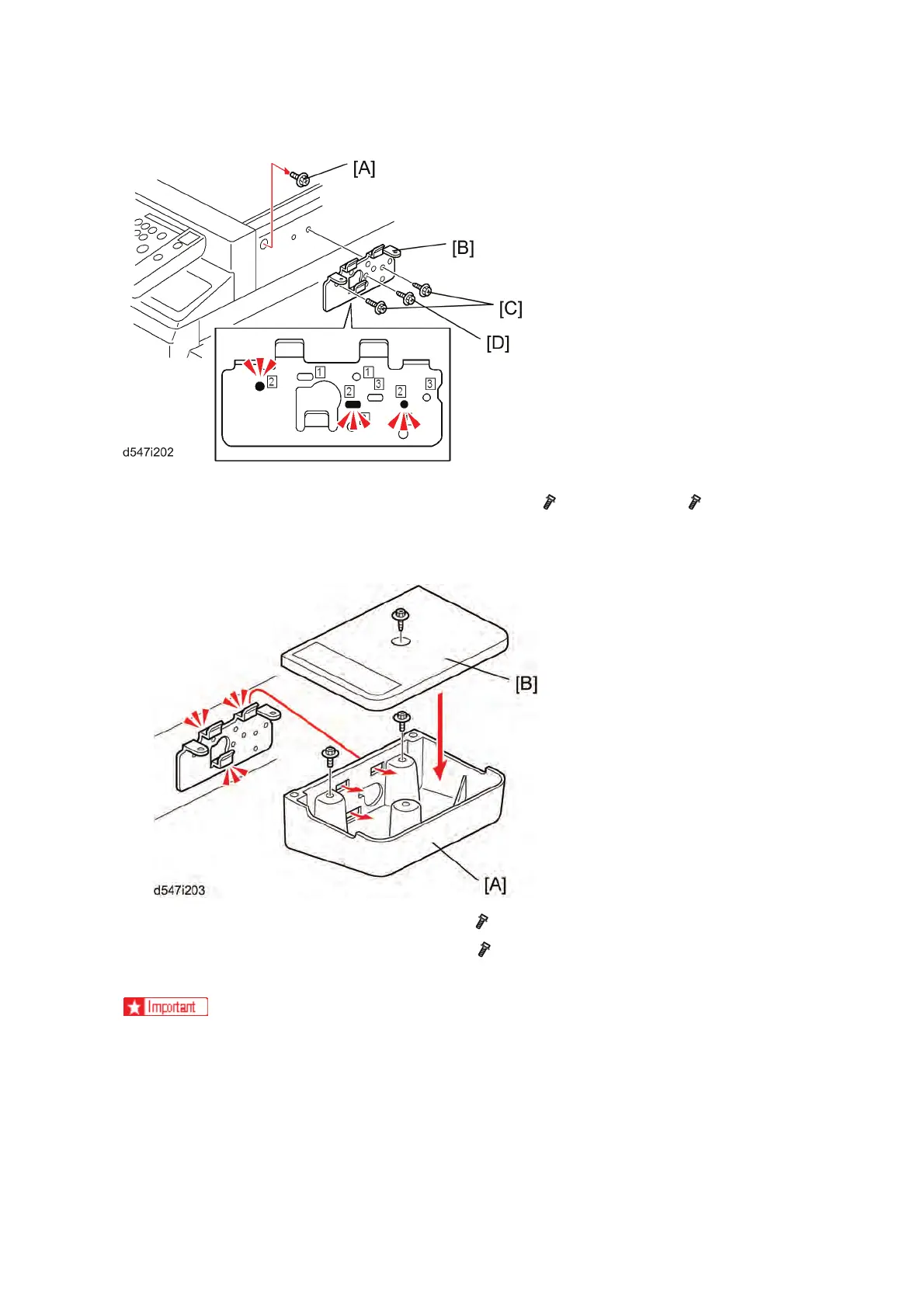

1. Remove the screw [A] on the scanner right cover.
2. Attach the tray bracket [B] to the scanner right cover ( [C] x 2: M3x10, [D] x 1:
M3x14).
 For this model, use the screw holes marked "2" on the table bracket.
3. Attach the lower tray [A] to the tray bracket (
x 2: M3x8).
4. Attach the upper tray [B] to the tray bracket (
x 1: M3x8).
5. Use the clamps as necessary to clamp the cable of the card read/writer device.
 The smart card reader must be placed on this card reader table. If not, some
antenna or transmitter in the main machine may be interrupted.
