G3 Interface Unit (D393)
D393 16 SM
1.3.2 INSTALLATION PROCEDURE
Before installing this optional unit:
Print out all data in the printer buffer.
Turn off the main switch and disconnect the power cord and the network cable.
You can add two more SG3 boards to this model. Follow the procedures for adding the
single SG3 board installation or double SG3 boards installation as a customer needs.
For Installing the single G3 Board

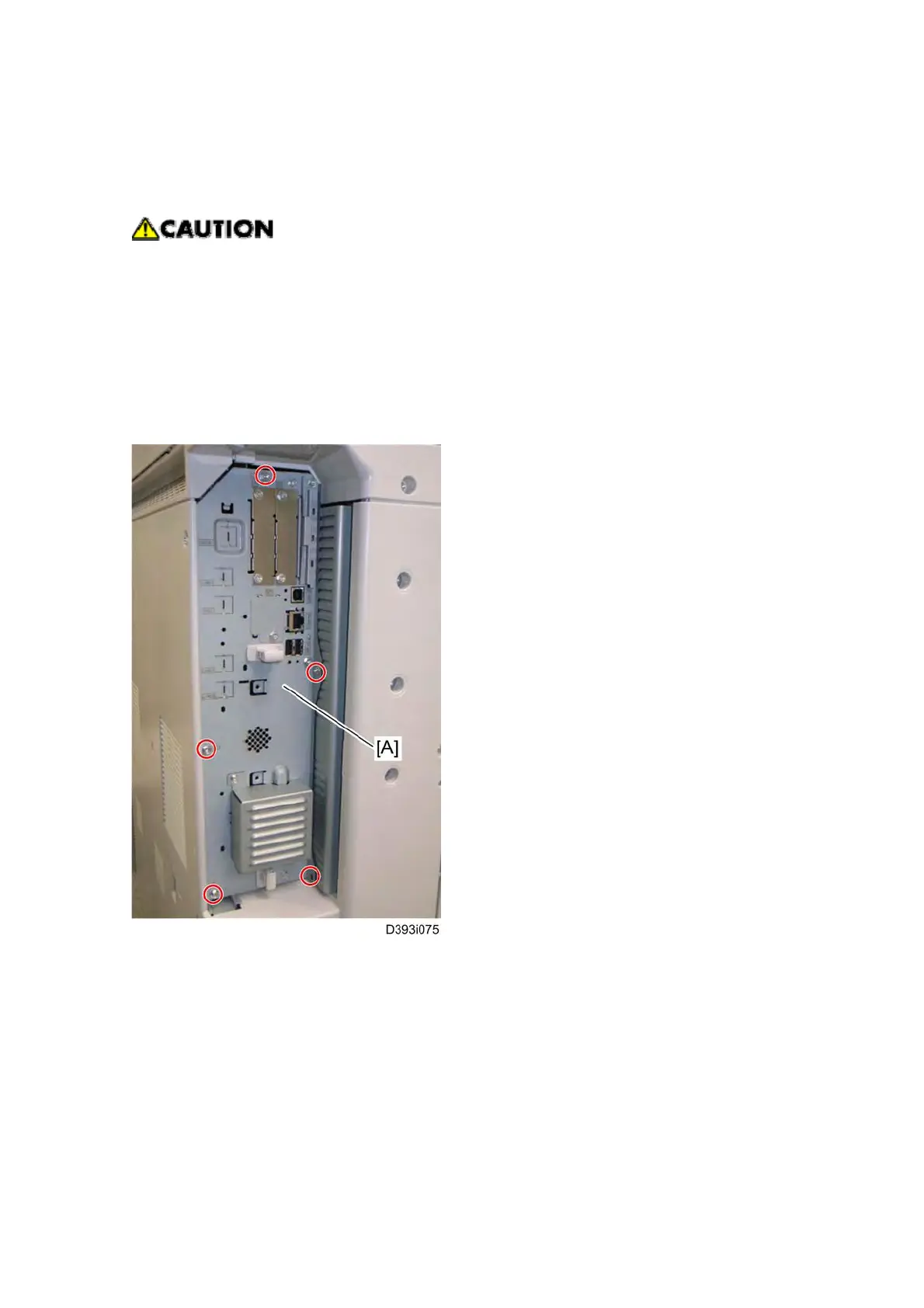

1. Remove the controller box [A] ( x 5).
To Next Page
