Ricoh Aficio MP C3001 Service Manual

1000-Sheet
Finisher
B408
PAPER SHIFT MECHANISM
SM 19 B408

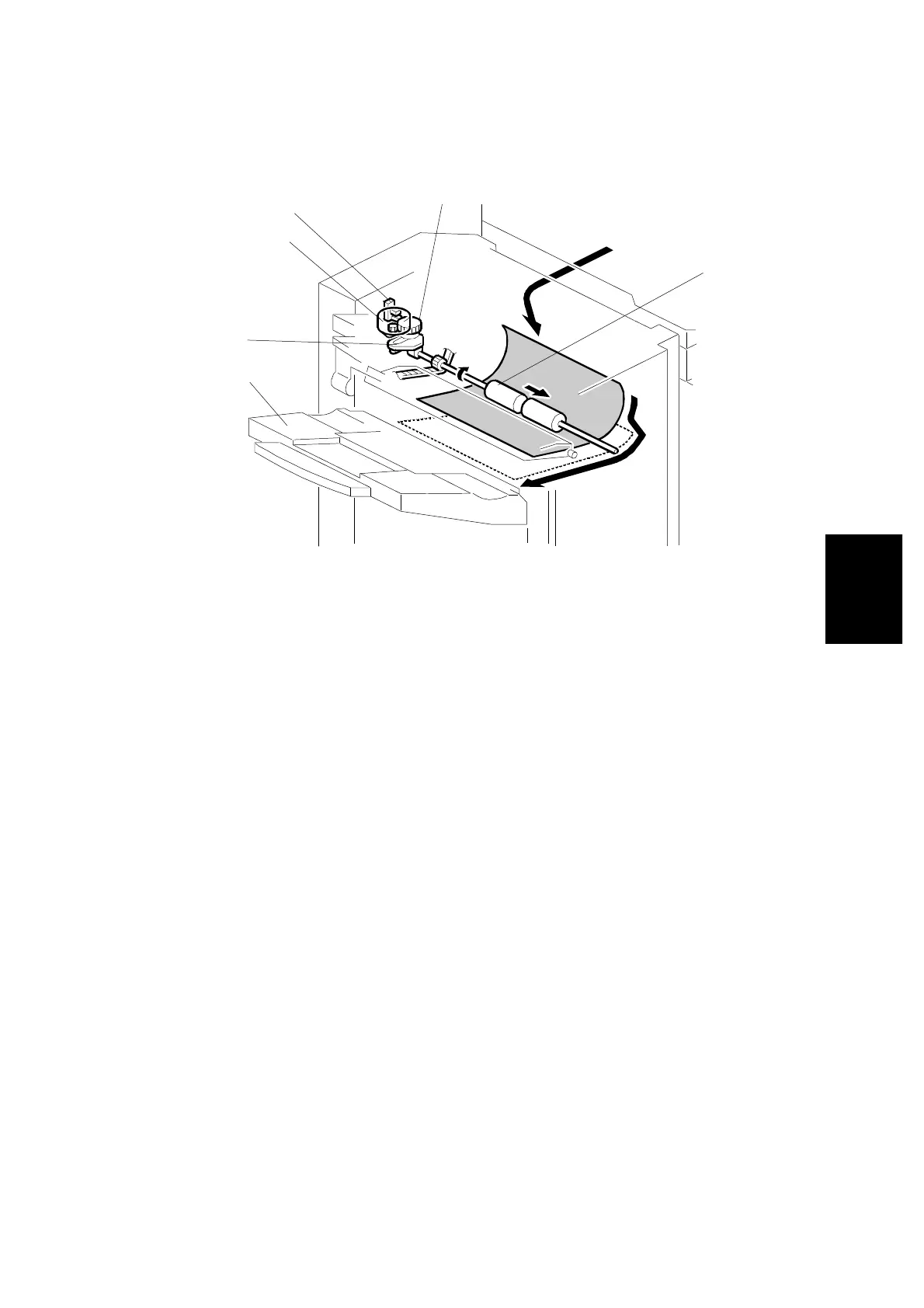

4.8 PAPER SHIFT MECHANISM
In the sort/stack mode, the shift roller [A] moves from side to side to separate the
sets of copies.
The horizontal position of the shift roller is controlled by the shift motor [B] and the
shift gear disk [C]. After the trailing edge of the copy passes the upper transport
roller, the shift motor turns on, driving the shift gear disk and the link [D].
After the paper is delivered to the lower tray [E], the shift roller moves to its home
position, which is detected by the shift HP sensor [F]. Then, when the trailing edge
of the next copy passes the upper transport roller, the shift roller shifts again. This
operation is done every sheet.
When the trailing edge of each page in the next set of copies passes the upper
transport roller, the shift roller shifts in the opposite direction.
B408D110.WMF
[A]
[B]
[F]
[C]
[E]
[D]

Ricoh Aficio MP C3001 Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	1, 200 sheets
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Copy Resolution	600 x 600 dpi
Paper Capacity (Maximum)	4, 400 sheets
Memory (Standard)	1 GB
Hard Drive	160 GB
Fax Speed	33.6 kbps
Print Speed	30 ppm
Connectivity	USB, Ethernet
Copy Speed	30 ppm (mono) / 30 ppm (color)
Paper Size	A3, A4, A5, B4, B5
Memory (Maximum)	1.5 GB
Max Paper Size	A3
Operating System Compatibility	Windows, Mac
