Ricoh Aficio MP C3001 - By-Pass Bottom Tray

Paper Feed
D086/D087 4-138 SM
4.12.7 BY-PASS BOTTOM TRAY
1. Open the right door.
2. By-pass tray cover (
p.4-134 "By-pass Paper Size Sensor and By-pass Paper Length
Sensor")

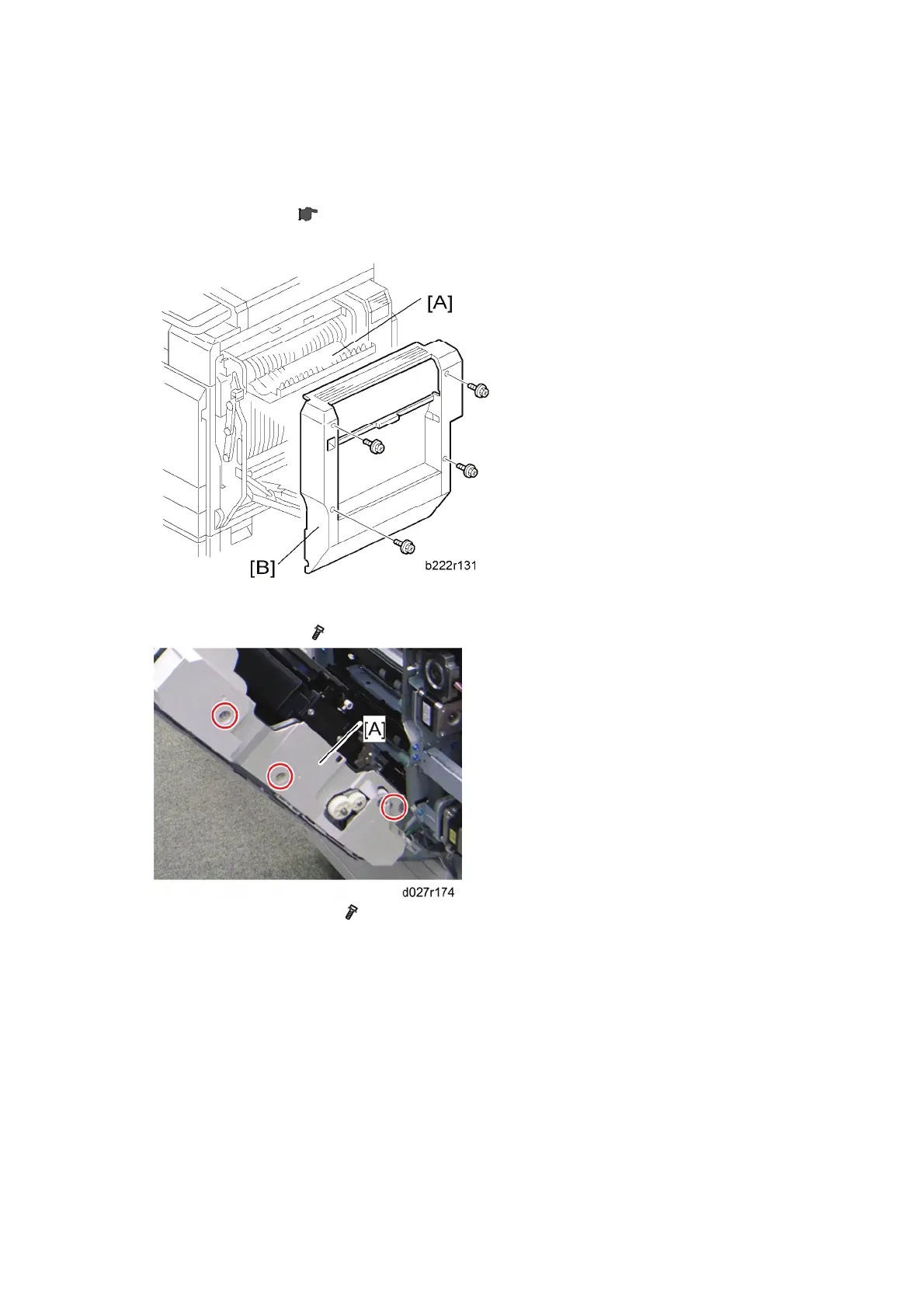

3. Open the duplex door [A].
4. Right door cover [B] (
x 4)
5. Right door rear cover [A] (
x 3)
