Ricoh Aficio MP C3001 Service Manual

Image Creation
SM 4-51 D086/D087
Replacement
and
Adjustment
4.7 IMAGE CREATION
4.7.1 PCDU
 Do not touch the OPC drum. Do not let metal objects touch the development sleeve.

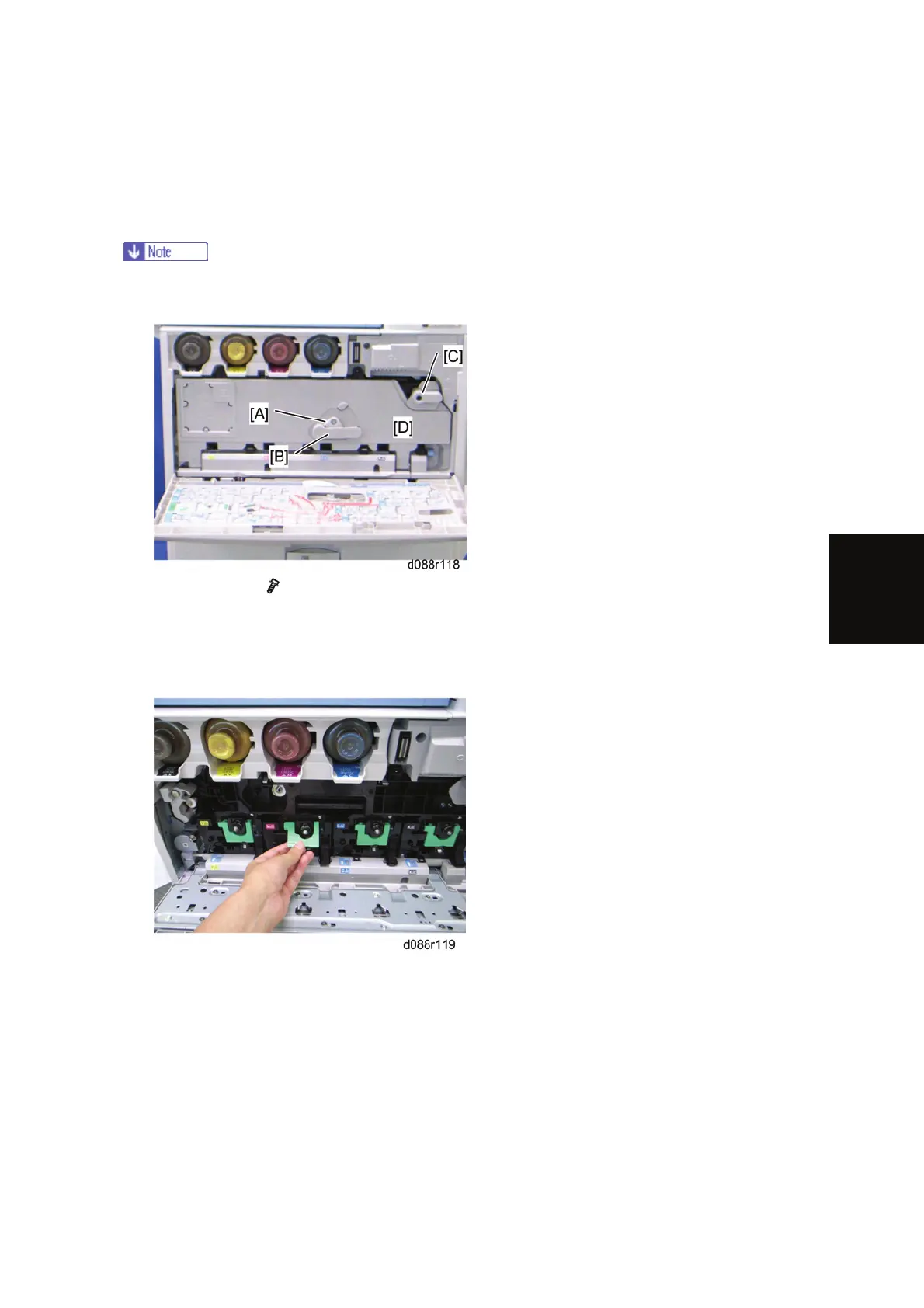

1. Open the front door.
2. Lever lock [A] (
x 1)
3. Turn the drum positioning plate lever [B] and the image transfer unit lock lever [C]
counter-clockwise.
4. Open the drum positioning plate [D].
5. Pull out the PCDU (hold the grip while you pull it out).
