Ricoh Aficio MP C3001 - Gear Unit

Drive Unit
SM 4-79 D086/D087
Replacement
and
Adjustment
4.10.1 GEAR UNIT
1. All PCU's
2. Image transfer belt unit (
p.4-63)
3. Rear cover (
p.4-19)
4. Controller box (
p.4-153)

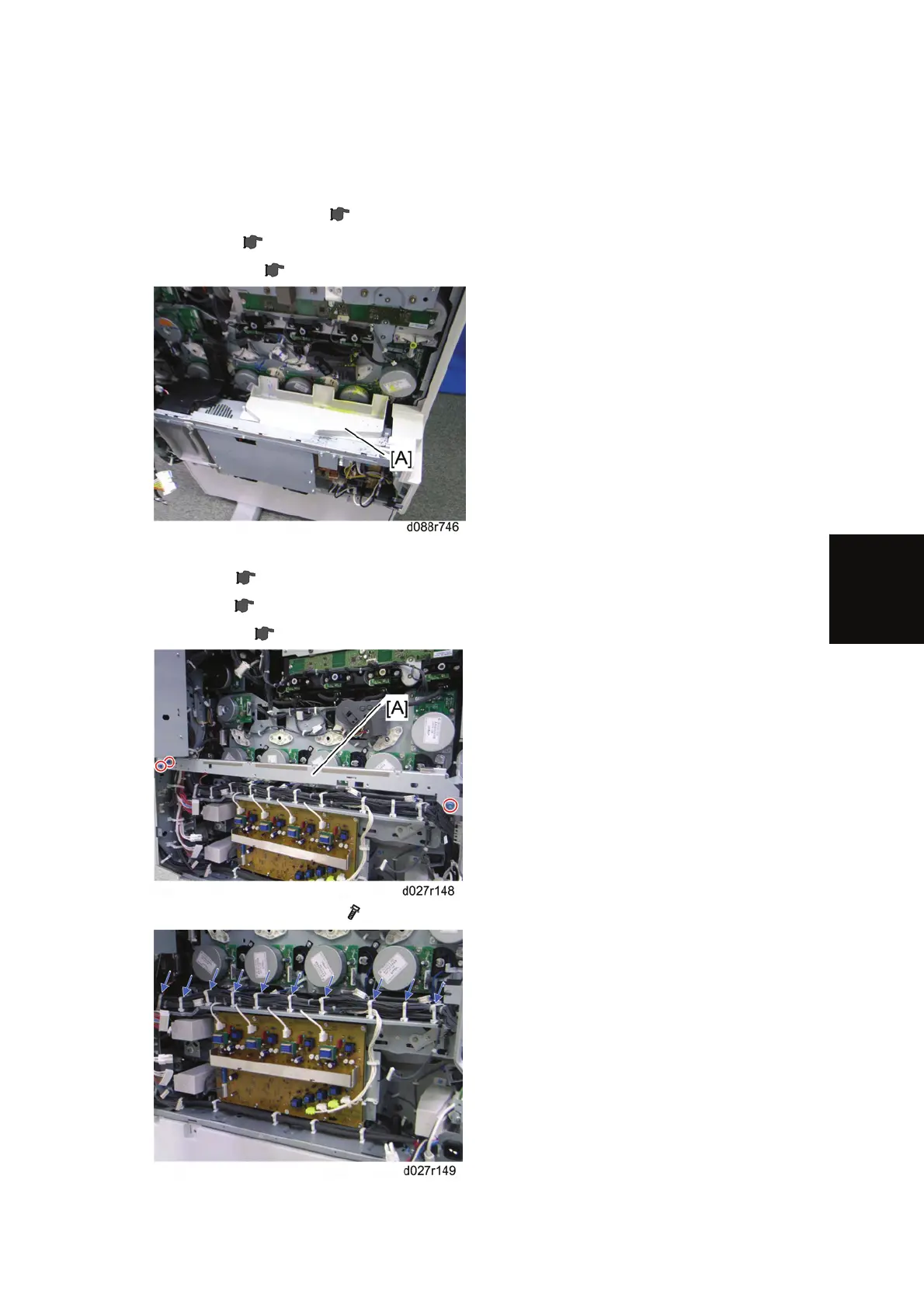

5. Toner sump cover [A] (hooks)
6. Third duct (
p.4-56)
7. Left cover (
p.4-18)
8. PSU bracket (
p.4-158 "PSU")
9. Remove the rear stay [A] ( x 3).
