Ricoh Aficio MP C3001 - Paper Feed Clutches

Drive Unit
D086/D087 4-96 SM
4.10.15 PAPER FEED CLUTCHES
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")

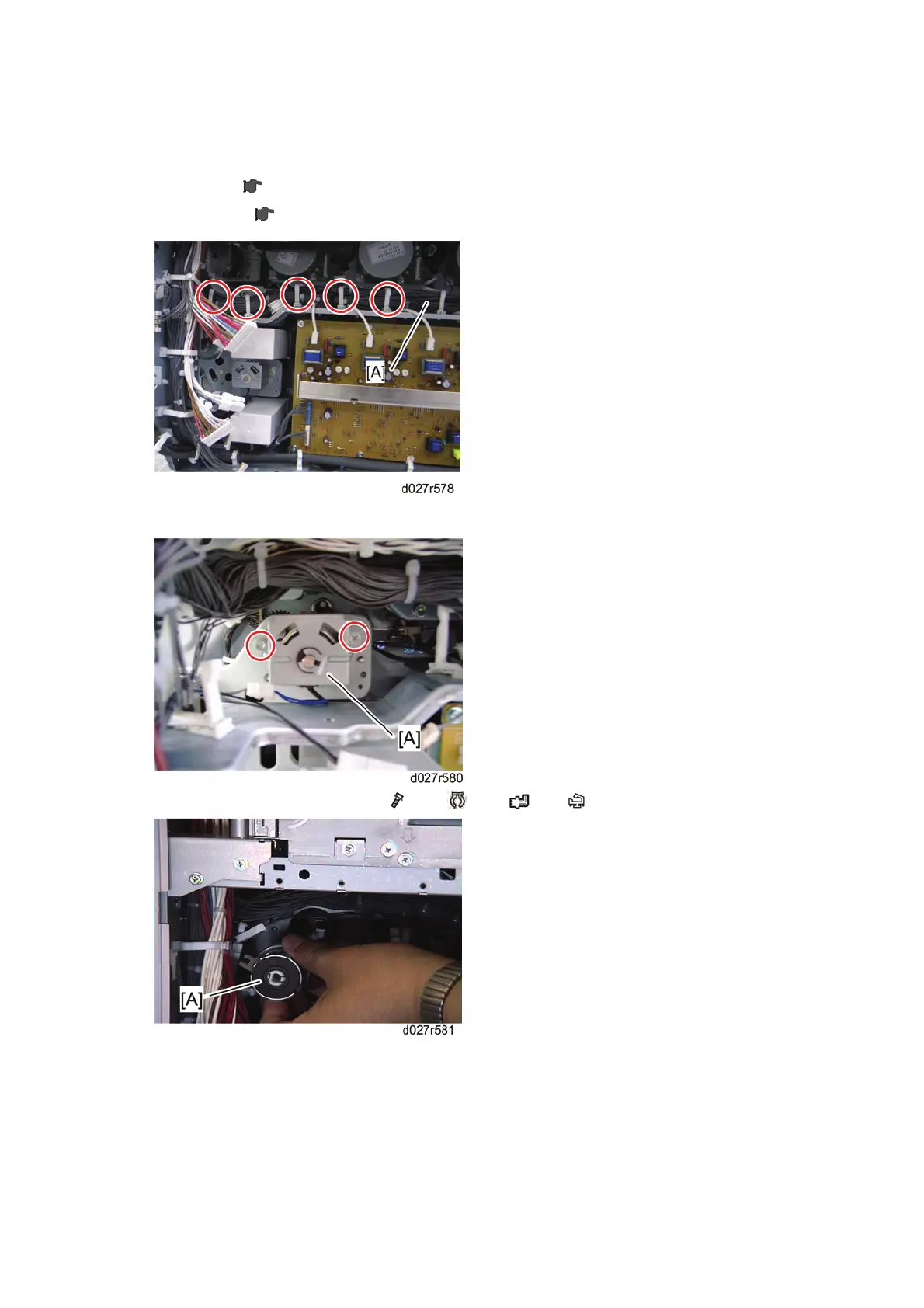

3. Release five clamps, and then turn the harness [A] aside.
4. Paper feed clutch 1 bracket [A] (
x 2, x 1, x 1, x 1)
5. Paper feed clutch 1 [A]
