Drive Unit
SM 4-97 D086/D087
Replacement
and
Adjustment

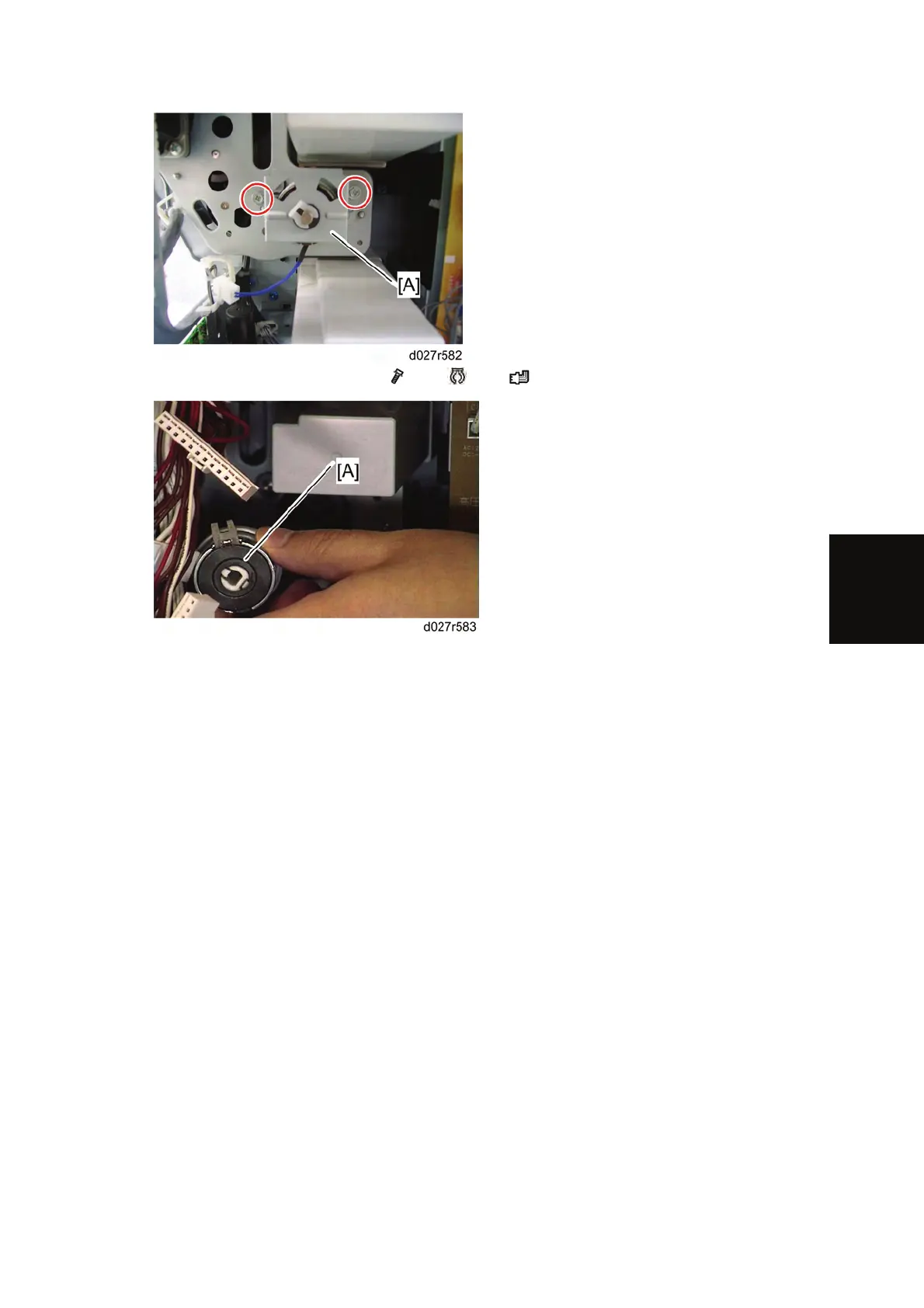

6. Paper feed clutch 2 bracket [A] (
x 2, x 1, x 1)
7. Paper feed clutch 2 [A]
