Ricoh Aficio MP C3001 Service Manual

JUNCTION GATES
B408 16 SM
4.5 JUNCTION GATES
Depending on the finishing mode, the copies are directed up, straight through, or
down by the combination of the tray junction gate [A] and stapler junction gate [B].
These gates are controlled by the tray junction gate solenoid [C] and stapler
junction gate solenoid [D].
Upper Tray Mode
The tray junction gate solenoid remains off. The copies go up to the upper tray.
Sort/Stack Mode
The tray junction gate solenoid turns on and the stapler junction gate solenoid
remains off. The copies are sent to the lower tray directly.
Staple Mode
The tray junction gate solenoid and the stapler junction gate solenoid both turn on.
The copies go down to the jogger unit.

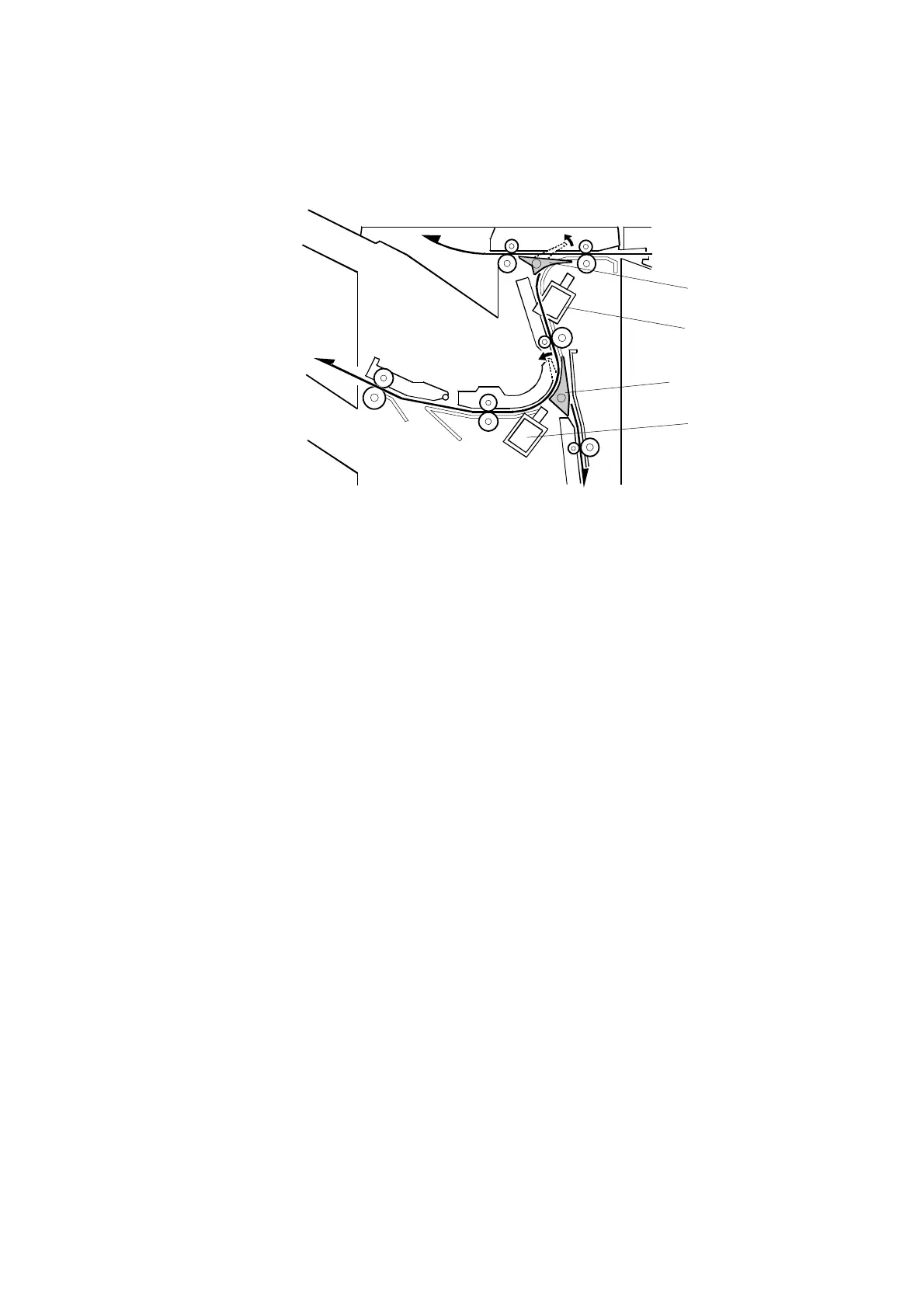

B408D108.WMF
