Electrical Components
D538 6 SM

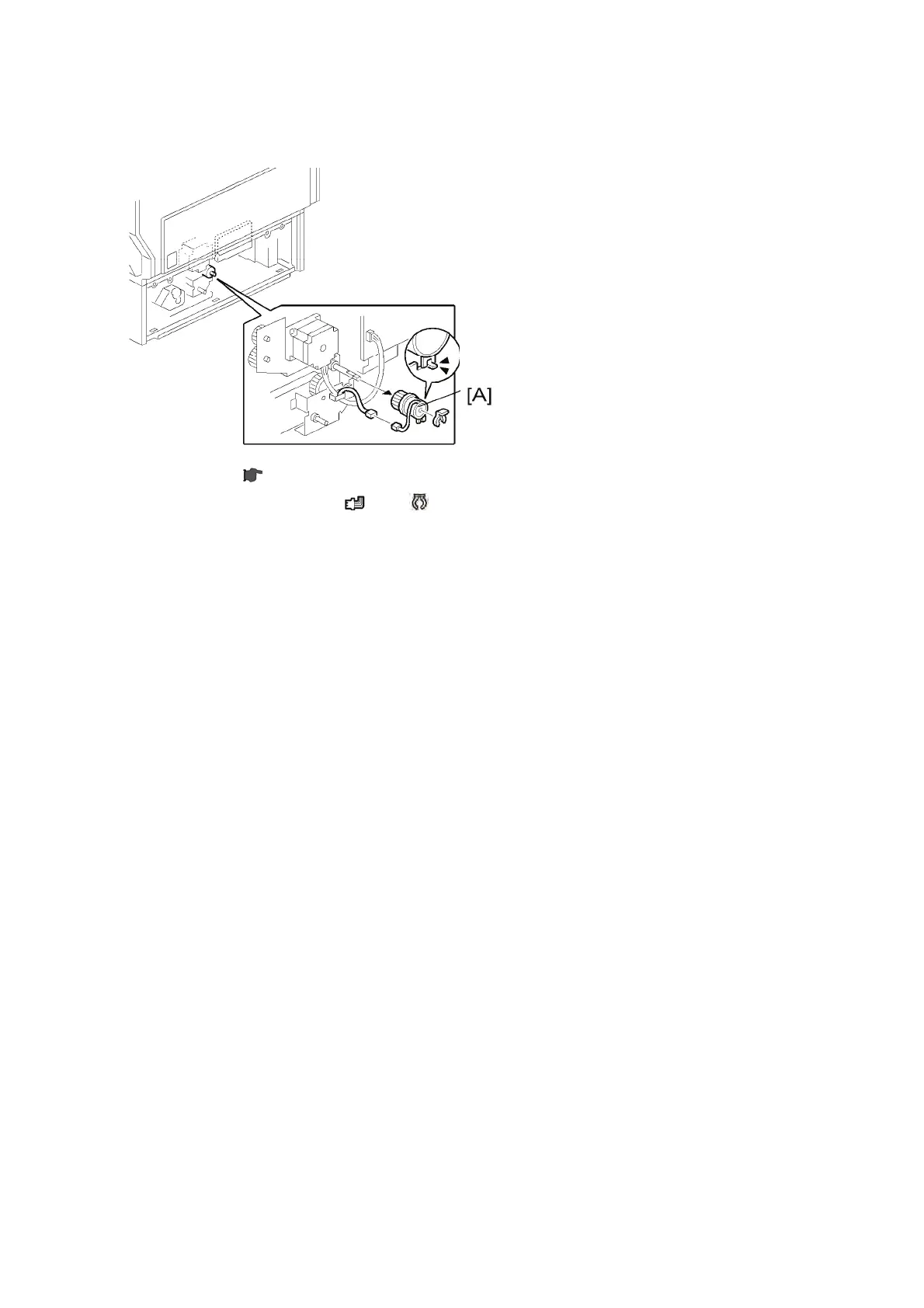

1.2.6 STACK TRANSPORT CLUTCH
1. Rear cover (
"Tray Lift Motor")
2. Stack transport clutch [A] (
x 1, x 1)
