Ricoh Aficio MP C3001 Service Manual

USB2.0/SD Slot Type F (D546)
SM 2-87 D086/D087
Installation

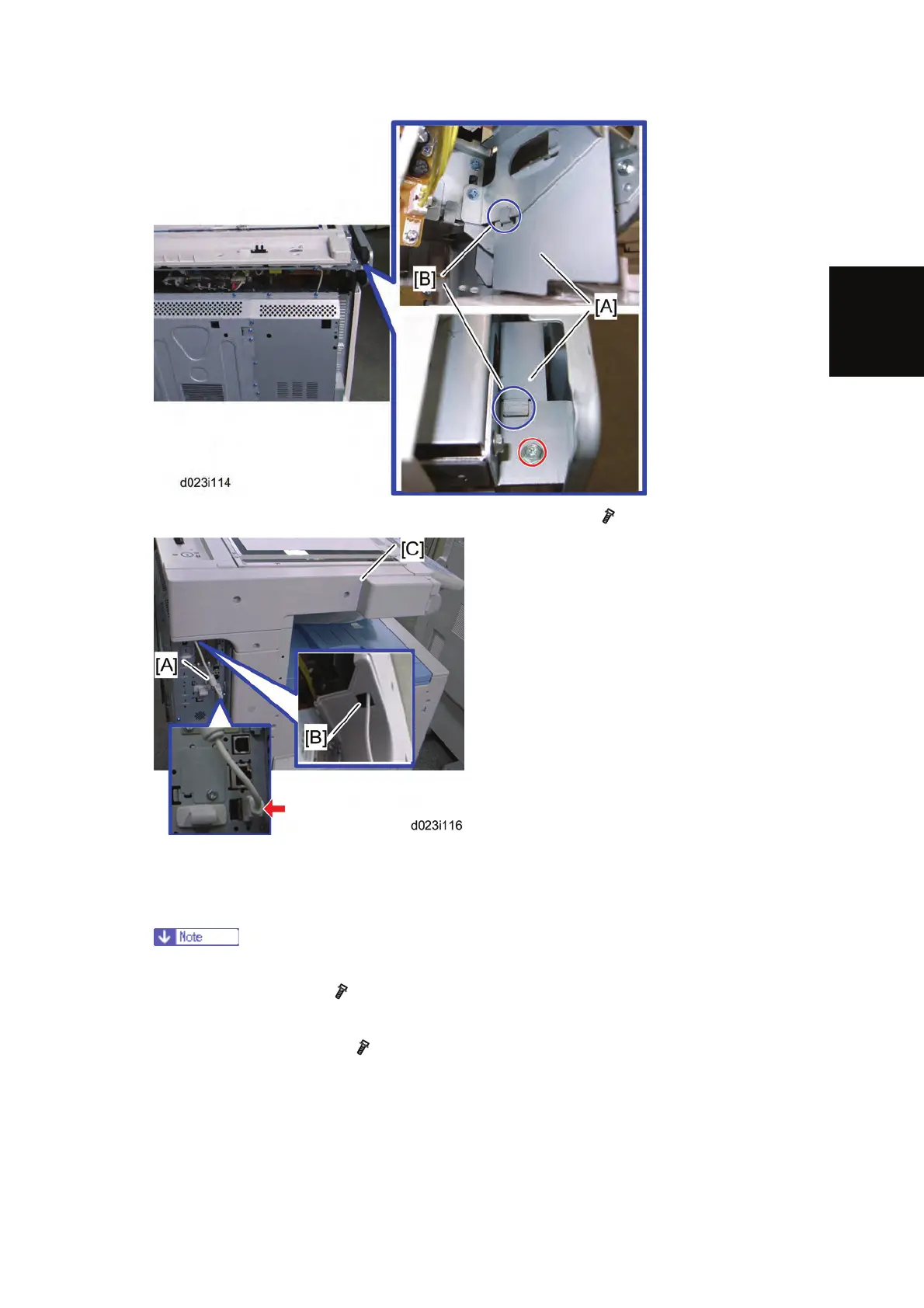

12. Attach the bracket [A] with its two hooks [B] as shown above (
x 1: M3x6).
13. Put the USB cable [A] through the cutout [B] of the left frame cover.
14. Attach the scanner left cover [C] to the mainframe, and then connect the USB cable [A] to
USB-A (front side) as shown above.
 Make sure that the USB cable is inserted in USB-A (front side).
15. Reinstall the rear cover (
x 8).
If PostScript 3 is already installed, go to step 25. If not, follow the steps from 16 to 24.
16. Remove the SD slot cover (
x 1), and move the SD card from slot 1 to slot 2.
17. Insert the PDF direct card in slot 1.
18. Plug in and turn on the mainframe.
19. Enter the System SP mode.
20. Move HDD Security Applications (HDD Encryption unit and Data Overwrite Security Unit)

Ricoh Aficio MP C3001 Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	1, 200 sheets
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Copy Resolution	600 x 600 dpi
Paper Capacity (Maximum)	4, 400 sheets
Memory (Standard)	1 GB
Hard Drive	160 GB
Fax Speed	33.6 kbps
Print Speed	30 ppm
Connectivity	USB, Ethernet
Copy Speed	30 ppm (mono) / 30 ppm (color)
Paper Size	A3, A4, A5, B4, B5
Memory (Maximum)	1.5 GB
Max Paper Size	A3
Operating System Compatibility	Windows, Mac
