Anti-Condensation Heater Type A
D086/D087 2-96 SM

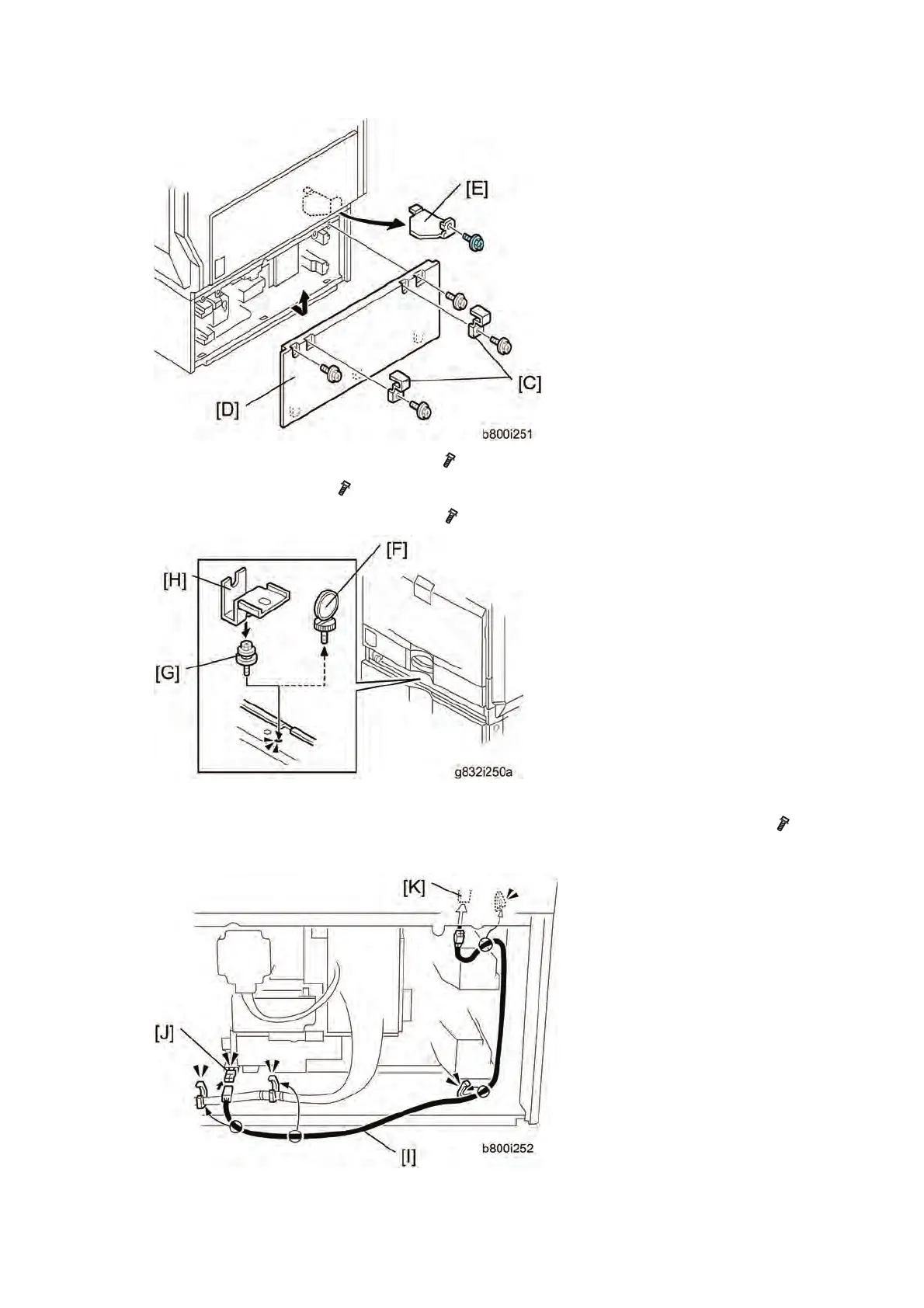

4. Remove the two securing brackets [C] (
x 1 each), and then the rear cover [D] of the
optional paper feed unit (
x 2).
5. Remove the harness cover bracket [E] (
x 1).
6. Pull out tray 2 from the mainframe.
7. Replace the shoulder screw [F] with the washer screw [G], using securing bracket [H] (
x 1).
To Next Page
