Ricoh Aficio MP C3001 Service Manual

G3 Interface Unit (D393)
D393 18 SM

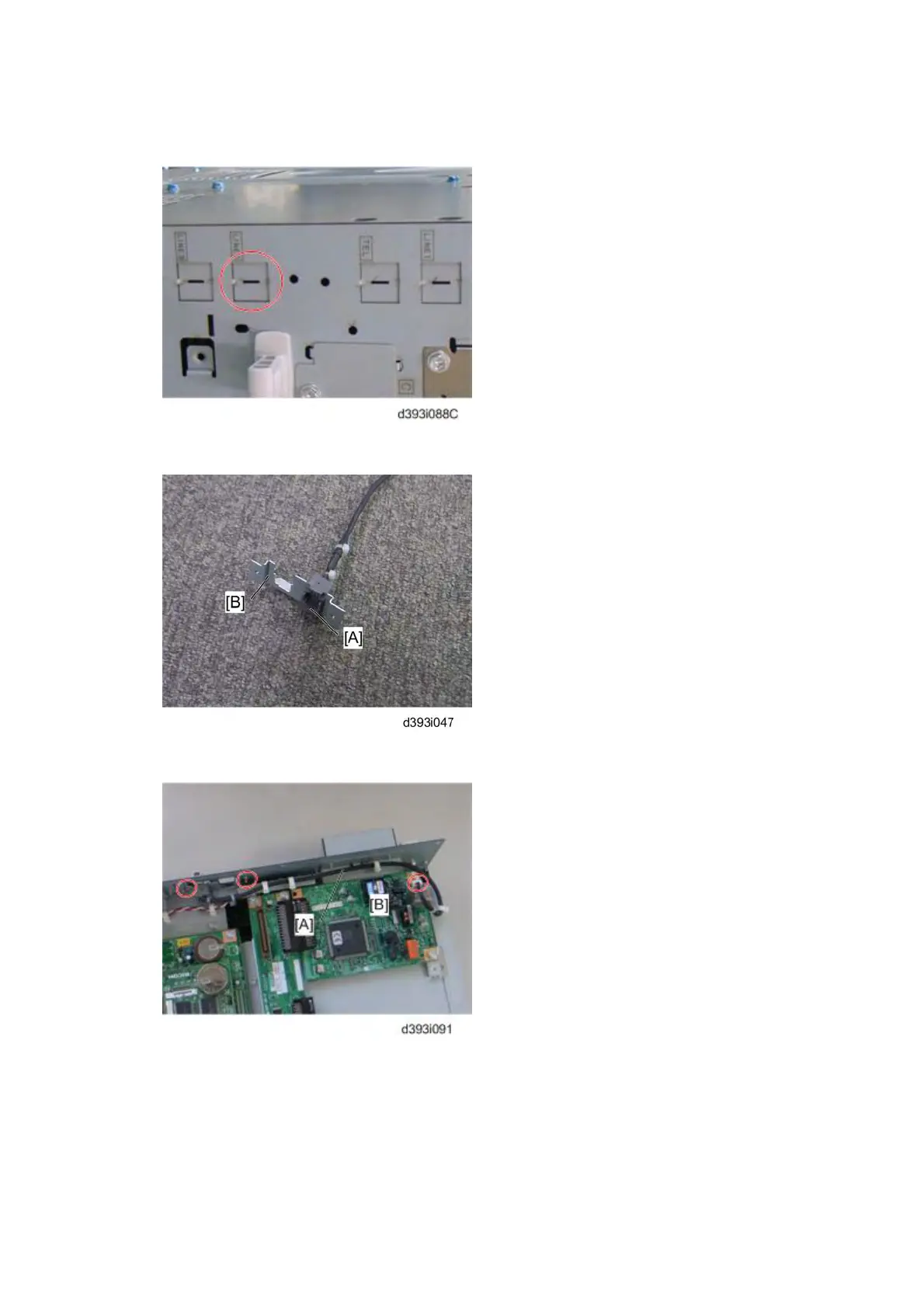

6. Remove the "LINE2" cover with a screwdriver.
7. Attach the socket of harness [A] (LINE2) to the modular bracket [B] for SG3.
8. Connect the harness [A] to the SG3 interface unit [B] (= x 4).
9. Attach the modular bracket for SG3 to the controller box ( x 2).
10. Reinstall the controller box.

Ricoh Aficio MP C3001 Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	1, 200 sheets
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Copy Resolution	600 x 600 dpi
Paper Capacity (Maximum)	4, 400 sheets
Memory (Standard)	1 GB
Hard Drive	160 GB
Fax Speed	33.6 kbps
Print Speed	30 ppm
Connectivity	USB, Ethernet
Copy Speed	30 ppm (mono) / 30 ppm (color)
Paper Size	A3, A4, A5, B4, B5
Memory (Maximum)	1.5 GB
Max Paper Size	A3
Operating System Compatibility	Windows, Mac
