Ricoh Aficio MP C3001 - Page 237

Image Creation
SM 4-61 D086/D087
Replacement
and
Adjustment
 If not, the toner may scatter away and fall down.

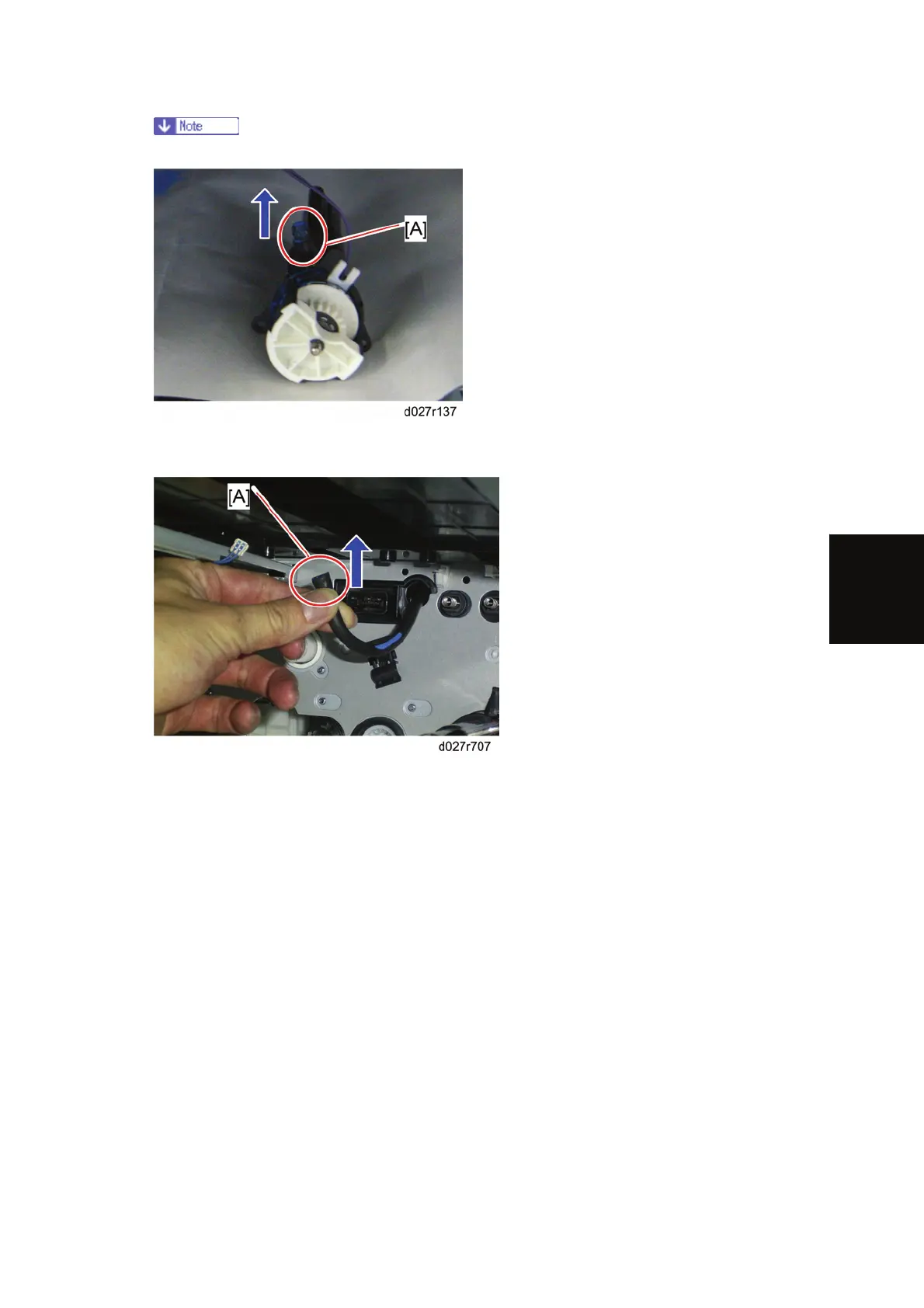

10. Put the toner pump unit on the sheet of paper, which has been put in step 4, with its
opening [A] up.
11. Keep the opening [A] of the toner supply tube up, and then clip the opening of the toner
supply.
