Ricoh Aficio MP C3001 Service Manual

Image Creation
SM 4-63 D086/D087
Replacement
and
Adjustment
 On the above picture, the magnified picture of the connector shows the easiest
way to connect it.

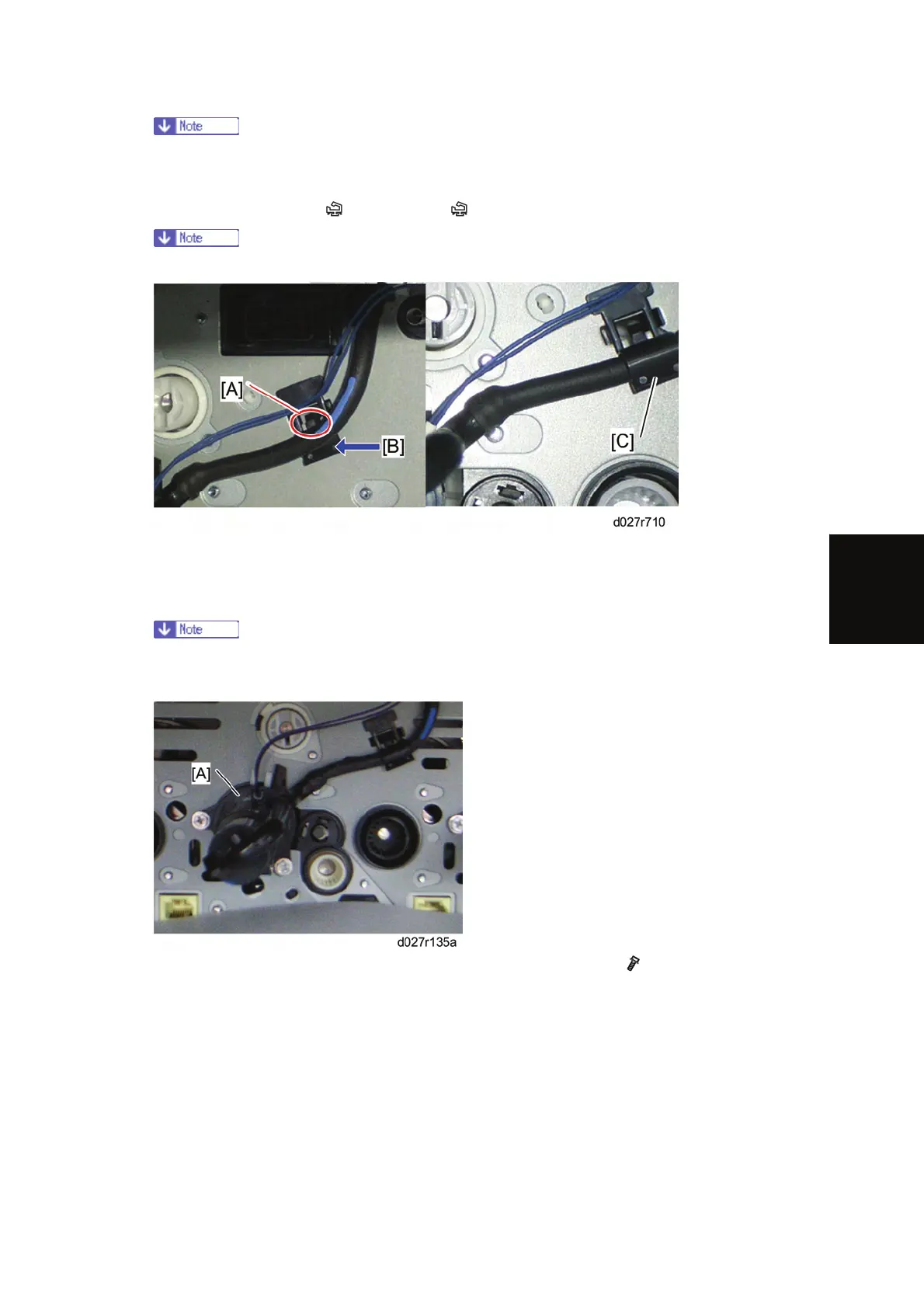

5. Clamp the harness [A] (
x 1 for YCM, x 2 for K).
 Avoid touching these spring terminals [B].
6. Pass the harness of the toner pump unit behind the hook [A], while pressing at [B].
7. Secure the toner supply tube with the holder [C], lifting up the edge of the holder "very
gently".
 Be careful when you lift the edge of the holder, because the holder is easily
broken.
8. Insert the toner pump unit [A] into the rear frame of the machine (
x 2).
