Ricoh Aficio MP C3001 - Page 265

Drive Unit
SM 4-89 D086/D087
Replacement
and
Adjustment

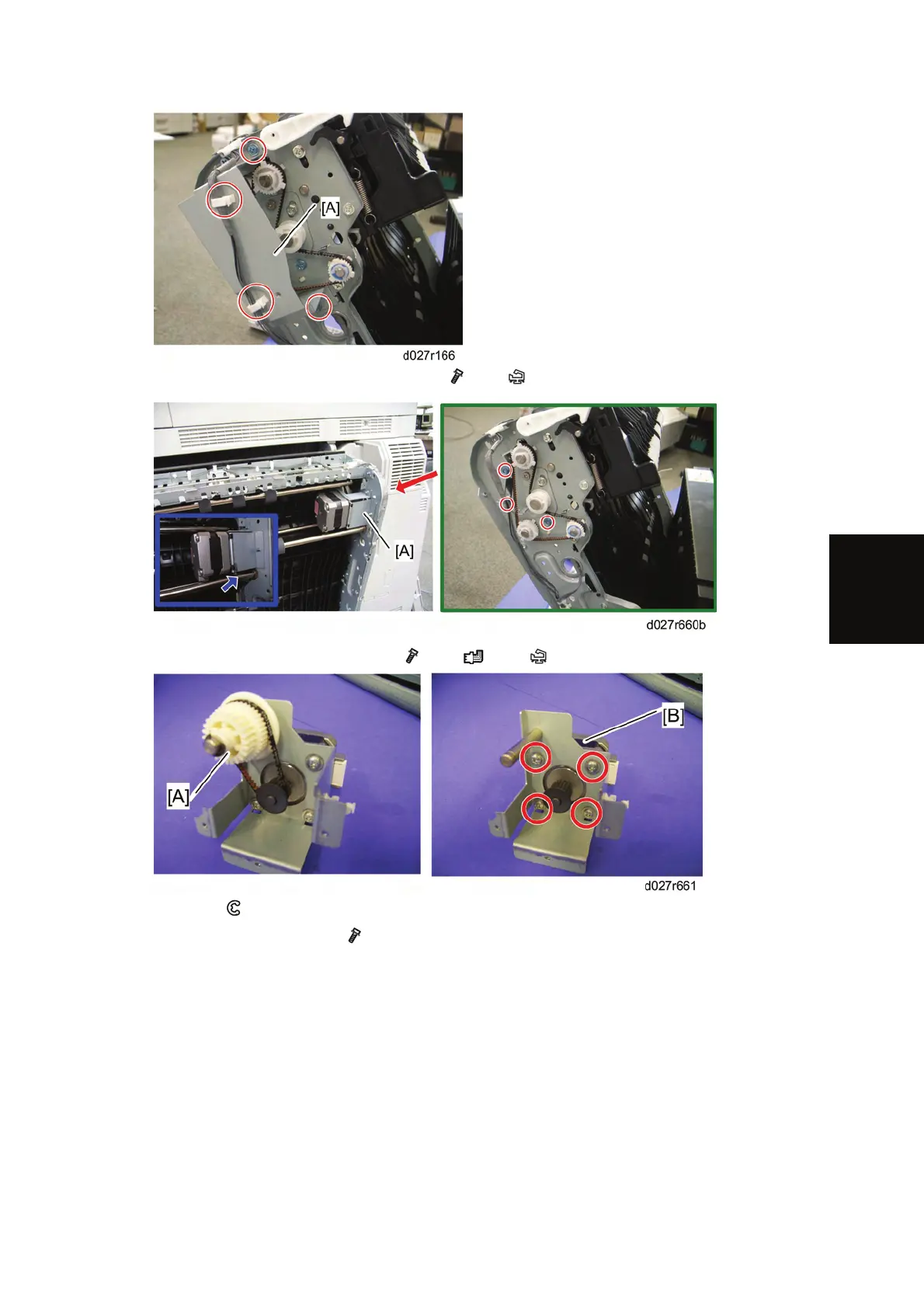

5. Duplex inverter motor bracket cover [A] (
x 2, x 2)
6. Duplex inverter motor bracket [A] (
x 3, x 1, x 1)
7. Gear [A] ( x 1, belt x 1)
8. Duplex inverter motor [B] (
x 4)
