Common Procedures
J012/J013/J014 3-22 SM
Preparation
Remove platen or ADF. ( 3.2.4, 3.2.5)
Raise the scanner unit to full upright. ( 3.2.7)
Remove: (1) paper cassette, (2) paper output tray, (3) right cover, (4) right inner cover,
(5) left cover ( 3.2.4, 3.2.10, 3.2.11, 3.2.12)

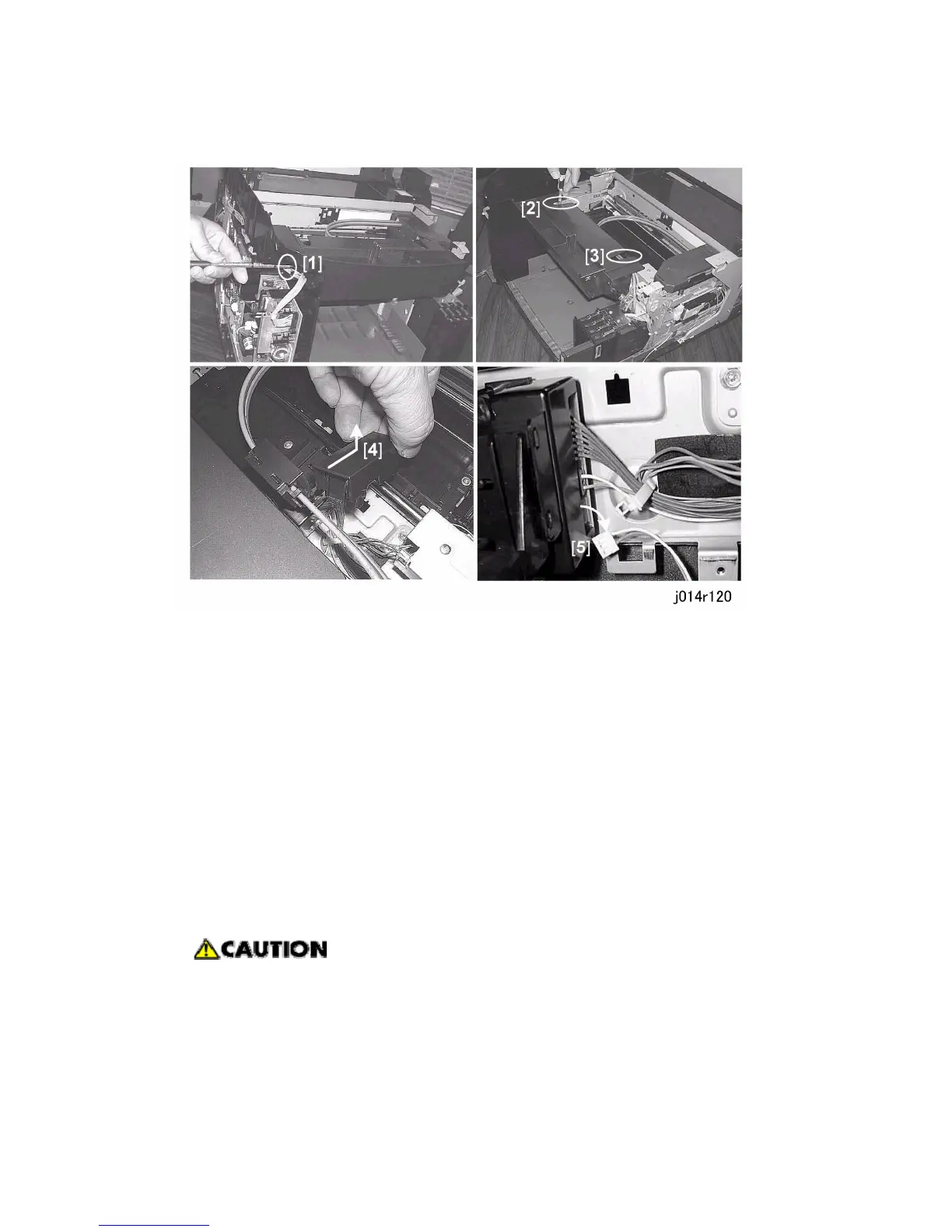

1. Remove screw [1] (x1)
2. Remove screws [2] and [3] (x2).
3. Push the connector cover [4] toward the back of the machine then raise its front edge to
remove it..
4. Disconnect connector [5] (=x1, x1).
5. Remove the front cover.
Never attempt to remove the front cover without first disconnecting the
connector. This is the harness connector of the scanner unit detection sensor
attached under the top of the top cover. This sensor detects the opening and
closing of the scanner unit.
