Sensors
SM 3-53 J012/J013/J014
Replacement
Adjustment
3.8.2 CARRIAGE POSITION SENSOR
Preparation:
Remove platen or ADF. ( 3.2.4, 3.2.5)
Raise the scanner unit to full upright. ( 3.2.7)
Remove: (1) paper cassette, (2) paper output tray, (3) right cover ( 3.2.8, 3.2.10)

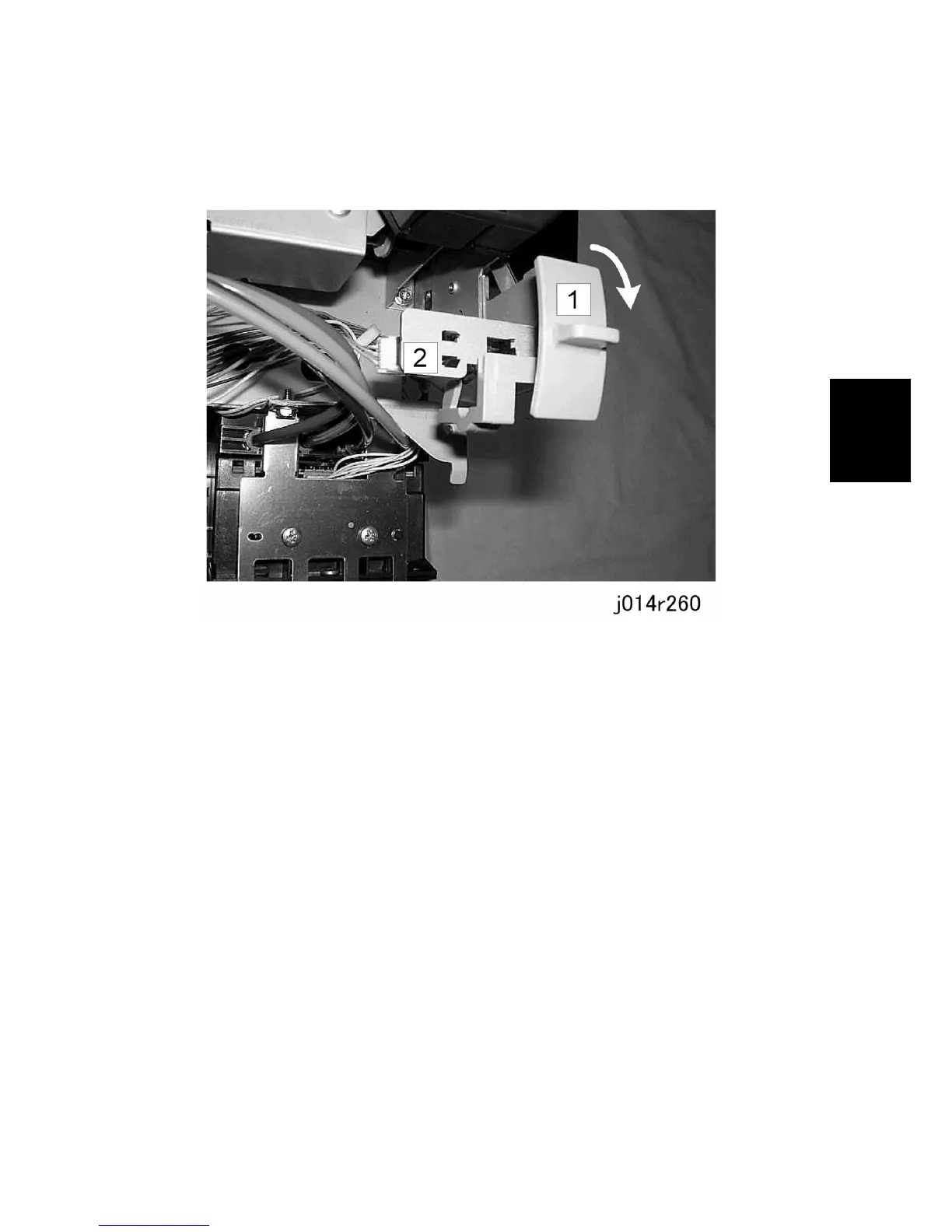

1. Move the envelope selector [1] forward.
2. Remove the sensor from under the air release solenoid bracket (Hooks x3)
3. Disconnect the sensor [2] (x1)
To Next Page
